Hot Products


Thin-film Solar Cell Stacking Machine
加载中...

15 Substrate Stacking Machine for Thin-film Solar Cell

This is a substrate transmission device connecting process equipment to process equipment in solar cells production line.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    T0B-Stack-15
  • Payment:

    L/C,T/T
  • product origin:

    china
  • shipping port:

    xiamen
Product Detail

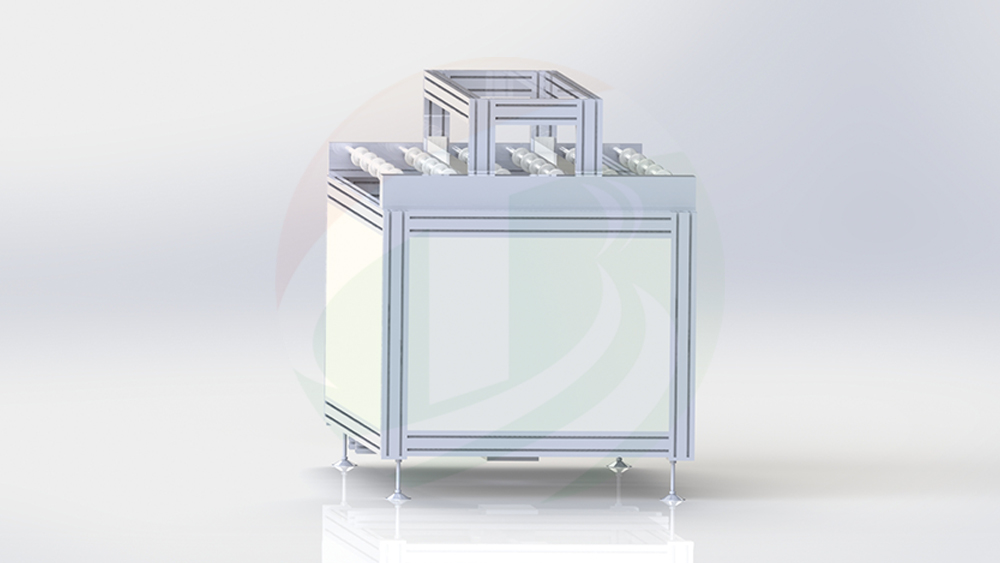

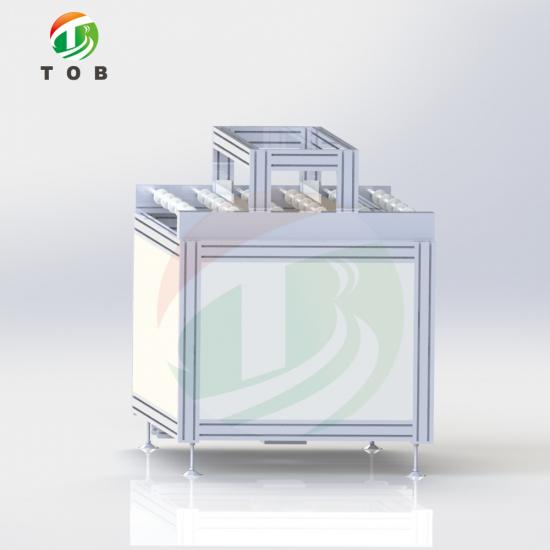

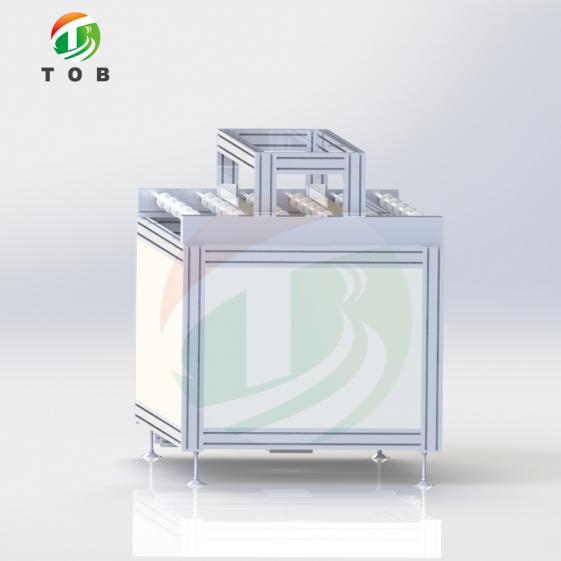

15 Substrate Stacking Machine for Thin-film Solar Cell


SPECIFICATIONS


This is a substrate transmission device connecting process equipment to process equipment in solar cells production line. It adopts Siemens 1200 control system and servo motor as transmission power, precision stainless steel shaft + O-ring for roller way transmission, and use reflective photoelectric sensor to identify transmission substrate, docked with upstream connection signal, the starting point sensor senses the substrate motor drive, arrives at the deceleration point to decelerate, arrives at the end point to stop, alarm for not reaching the corresponding position, docked with downstream connection signal, the substrate is completely separated from the end point sensor then the motor stop rotation, stop automatically and alarm when downstream has fault.

The upstream incoming material can be automatically stored when downstream blocking film or downstream failure.

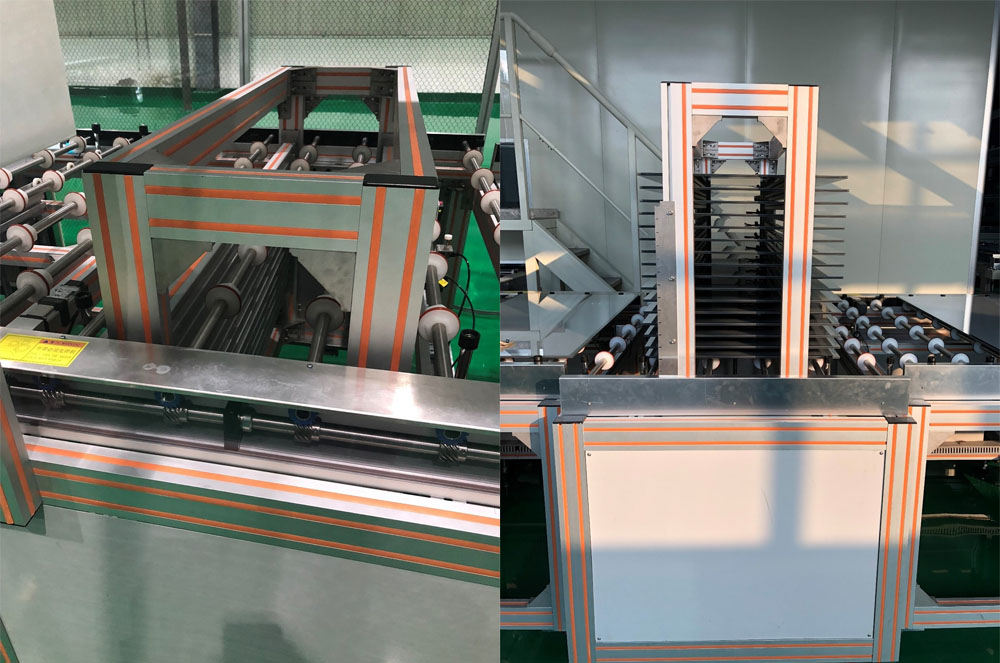

Product Display


Stacking Machine

Stacking Machine
