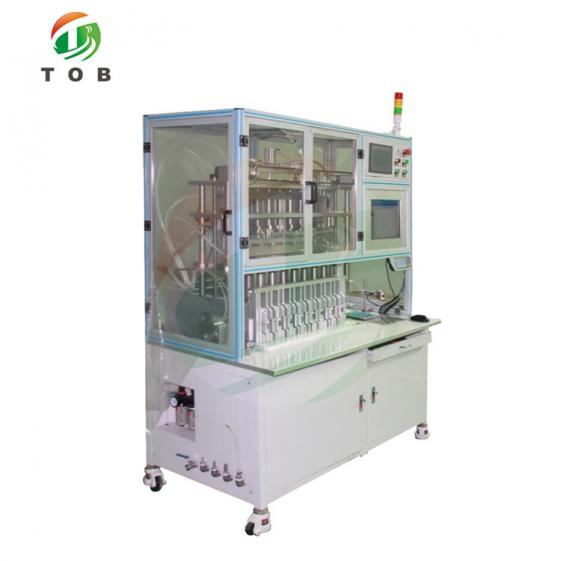

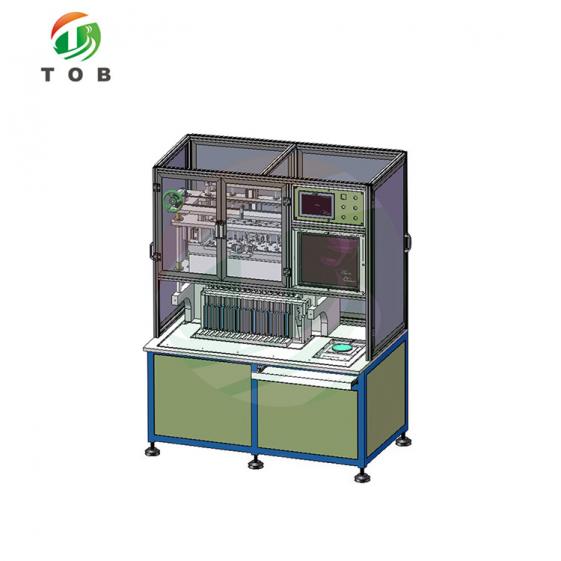

Automatic Battery Electrolyte Filling Machine System For Prismatic Power Battery Pilot Line

This machine is mainly used for precise and quantitative liquid injection of Prismatic power battery, with high liquid injection efficiency, simple operation and good stability.

Brand:
TOB NEW ENERGY
item no.:
TOB-BZDP-12ZZ
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

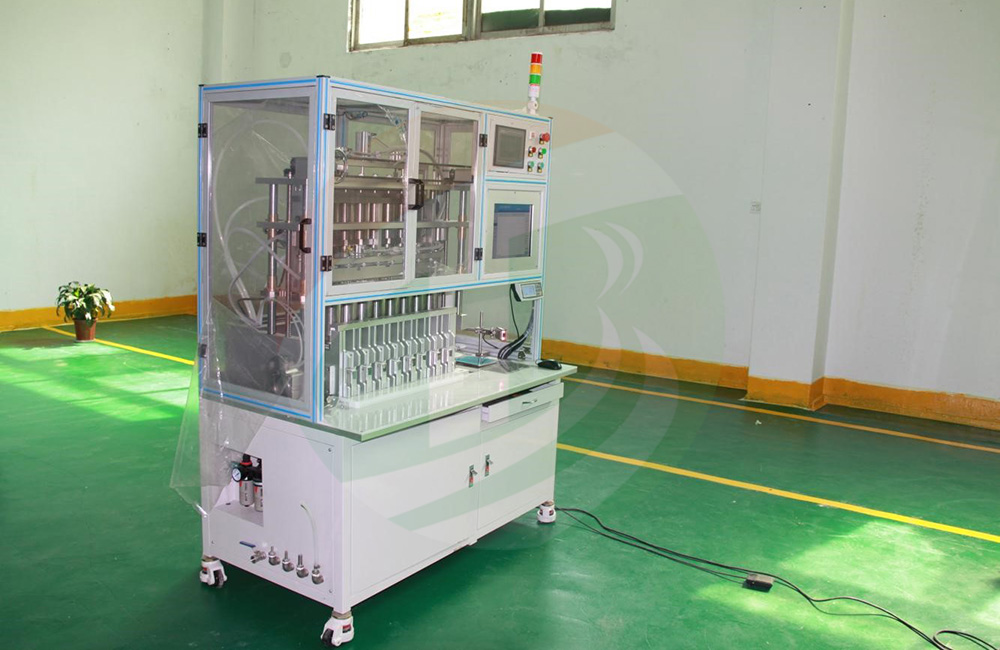

Automatic Battery Electrolyte Filling Machine System For Prismatic Power Battery

SPECIFICATIONS

1. Equipment introduction:

1.1 This machine is mainly used for precise and quantitative liquid injection of Prismatic power battery, with high liquid injection efficiency, simple operation and good stability. It is an important equipment for advanced liquid injection process in the production of prismatic power battery.

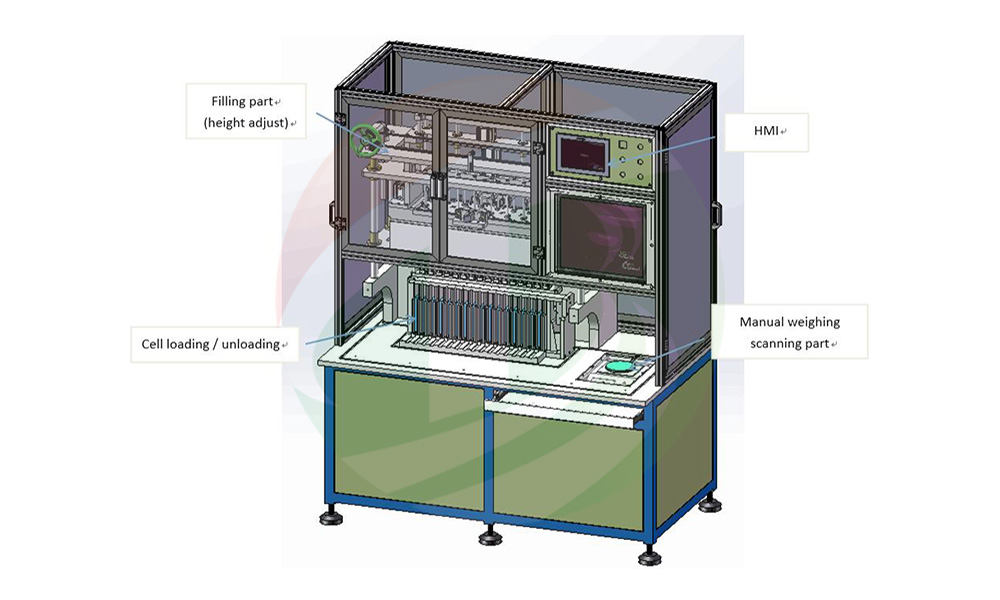

1.2 Working principle: The machine construction is with battery fixture, Liquid injection mechanism, operating system, mechanical transmission and other components.
It adopts the absorption mode of vacuumizing first and then injecting liquid, manual loading and unloading, single person operation.

2. Workflow:

Vacuum/N2/Standing(vacuum, pressure maintaining time, standing time, and cycle times all can be set)

Battery Electrolyte Filling Machine

Manual loading→ fixture auto fix cell → auto vacuum and filling → N2/standing cycle →manual unloading→ Finish

3. Equipment Configuration: (We reserve the right to change the electrical brand without prior notice)
A PLC：Panasonic，
B HMI：MCGS
C Main pneumatic element: AIRTAC
D Sensor：SUNX
E Vacuum meter：Panasonic
F Filling pump：TOB
G The main core components are made of stainless steel 316 or related anti-corrosion process。
H Mechanical operation area is equipped with protective door and series emergency stop

Item	Index	Description
Efficiency（max）	1PPM	According to cell size, capacity and filling quantity.
Utilization	≧95%	Continuous working 24hours
Filling accuracy	±3‰	Use the case, filling one time for each filling port, sample one time, totally sample 20times for each filling port.
Percent of pass	≧99%	±3‰tolerance；
Cell size	According to customer drawing	Suitable size：(Standard model) Height : 150-210mm, Width 70-135mm, thickness≤ 30mm.

Battery Electrolyte Filling Machine

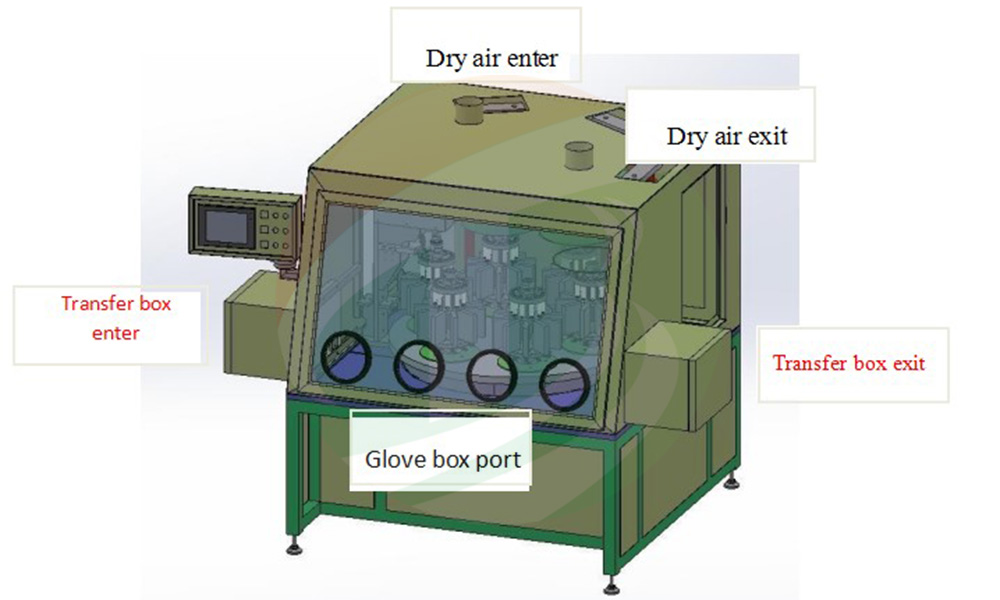

This model standard design is work in the dry room without glove box, if you still need glove box, we will add the glove box similar below design.

You need to prepare the dry air and dehumidifier by yourself.

Battery Electrolyte Filling Machine
