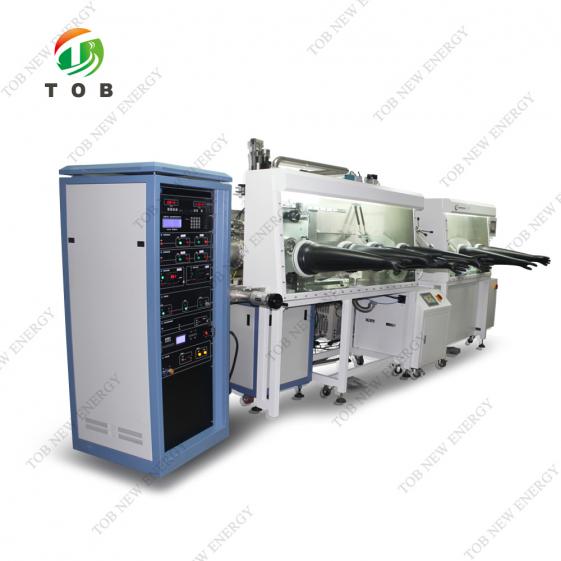

Glove Box for Perovskite Solar Cells

Glove Box for Perovskite Solar Cells

Specifications

This glove box is suitable for the research and production of perovskite solar cells.

Water oxygen index: less than 0.1 ppm

Leakage rate: 0.001vol%/h

Model: TOB-GLOVE BOX

This is a compact glovebox that connects a two-station glovebox to a single-station glovebox via a T-transition chamber. It has single-side operation, PLC control and touch screen operation functions. Integrated single column purification unit, vacuum pump, holder, one with angled operating surface and removable safety glass front window, etc.

Under standard conditions, that is, 20℃constant temperature, a standard atmospheric pressure, 99.999% inert air source, water oxygen index is less than 0.1 ppm.

Function of glove box

The inert gas in the glove box is closed by the circulating fan and purifier to remove water and oxygen constantly.

Automatic controlled regeneration

Dehydrating and deoxygenating materials can be regenerated, and the regeneration process is controlled by the program.

Automatic cleaning

Air displacement in the glove box is accomplished by an automatically controlled cleaning valve.

Tank pressure control

The pressure inside the glove box is automatically controlled by PLC. The working pressure can be set freely within +/- 15mbar. When it exceeds +/- 16mbar, the system will start automatic protection.

Vacuum pump automatic control

The vacuum pump must be automatically started when the system needs it.

Main Components

2 glove boxes in 304 stainless steel, acid resistant, 3 mm thick

2 small vacuum transition chambers made of stainless steel, diameter 150mm, length 300mm, left and right

1 large vacuum T-shaped transition chamber made of stainless steel, diameter 360mm, length 700mm, middle

1 small vacuum T-shaped transition chamber made of stainless steel, diameter 150mm, length 900mm, middle

1 front window with 2 glove ports

1 front window with 4 glove ports

3 pairs of butyl rubber gloves

2 sets of lighting systems

2 high performance circulating fans

2 sets of purification systems

2 vacuum pumps

1 quick-change organic solvent adsorber

2 sets of PLC control and touch screen operating system

Several blind flanges

2 in-box power cords

2 sets of water analyzers

2 sets of oxygen analyzers

2 sets of ultra-clean filtration systems

2 sets of temperature control systems

2 bracket casters

2 foot switches

Source of Key Components

Vacuum Pump: EDWARDS (UK)

Circulation fan: DARGANG (Taiwan)

Water Analyzer: MICHELL (UK)

Oxygen Analyzer: SOUTHLAND (USA)

Pressure sensor: HALSTRUP-WALCHER (Germany)

Purification material: BASF, UOP (Germany, USA)

Butyl Gloves: NORTH/Guardian (USA)

PLC control system and touch screen: SIEMENS (Germany)

Pressure gauge: WIKA (Germany)

Integrated seat: MIKROUNA (custom)

Technical indicators

(1) Box

Material: 304 stainless steel, thickness 3mm

Inner surface: brushed stainless steel

External surface: spray paint, white

Nominal size of box 1 Length: 1800mm, depth: 750mm, height: 900mm

Nominal dimension of box 2 Length: 1220mm, depth: 750mm, height: 900mm

The left side of the box is recessed and reserved for the coating machine interface

Front window: Flange window, one-piece molding, O-ring, vacuum seal, ultra-low leakage rate

Sloping windows, transparent tempered safety glass, thickness 8 mm

Glove port: material is aluminum alloy, O-ring seal, easy maintenance, and good sealing performance

Gloves: Butyl, 8" diameter. 32" length.

Filter: 0.3 micron gauge, 1 gas inlet and 1 gas outlet

Shelf: stainless steel material, built-in 3 layers

Cabinet lighting: LED lights, installed above each glass window

Interface: Several spare interfaces, DN 40 KF, 1 power cord in the box (220V)

(2) Small Transition Chamber

Dimensions 150mm in diameter, 300mm in length, 100mm in length into the glove box

Material: 304 Stainless Steel

Surface: The inner surface is brushed, the outer surface is painted (white)

Appendix

Doors: Double doors (blue), button-down

Pressure gauge: analog display

Cabin Tray: 304 Stainless Steel

Control: Manual valve manual operation

(3) Large T-shaped transition Chamber

Size: diameter 360mm, length 700mm

Material: 304 stainless steel

Surface: The inner surface is brushed, the outer surface is painted (white)

Appendix

Sliding Tray: 304 Stainless Steel

Doors: three doors, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: analog display

Control

Solenoid valve touch screen automatic operation

Function

Connect two glove boxes, the sample can be transferred from left to right or from the middle to both sides

(4) Small T-shaped transition Chamber

Dimensions 150mm in diameter, 300mm in length, 100mm in length into the glove box

Material: 304 Stainless Steel

Surface: The inner surface is brushed, the outer surface is painted (white)

Appendix

Doors: three doors, button-pressed

Pressure gauge: analog display

Cabin Tray: 304 Stainless Steel

Control

Manual valve manual operation

Function

Connect two glove boxes, the sample can be transferred from left to right or from the middle to both sides

(5) Gas purification circulation system

Purification Column

Function: airtight, dewatering, deoxidizing

Container material: 304 stainless steel

Purification material: copper catalyst: 5kg, molecular sieve: 5kg

Purification capacity: oxygen removal: 60L, water removal: 2Kg

Water oxygen index: less than 0.1ppm

Circulatory System

Working gas: nitrogen, argon

Circulation capacity: integrated fan flow rate of 90m³/h, with frequency conversion installed

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: working gas and hydrogen mixed gas, (hydrogen 5-10%)

Vacuum Pump

Specifications: 12m³/h, rotary vane pump, with oil mist filter, gas vibration control

Valve

Main valve: DN 40 KF, electric angle valve

Control valve: solenoid integrated valve (stainless steel integrated valve seat, single column is integrated for six valves)

(6) Control system

Function: including self-diagnosis, self-starting after power failure, with pressure control and self-adaptive functions; automatic control, cycle control, password protection; unit control adopts Siemens PLC touch screen.

Pressure control: control the pressure of the box and transition cabin, the working pressure of the box can be freely set within +/- 15mbar, and the system will automatically protect when it exceeds +/- 16mbar;

Foot pedal: control the pressure of the box, easy to operate boost and pressure

(7) Display system

Siemens PLC touch screen is used to display the running status, box pressure, system records, etc.

(8) Control of Vacuum System

Vacuum pump, which can be started manually or through PLC, with a flow rate of 12m³/h, which can evacuate the transition chamber and keep the pressure balance of the box body. The ultimate vacuum degree of the vacuum pump is≤2x10-1pa

Glove Box Accessories

Water Analyzer

Measuring range: 0～1000ppm

Accuracy: 0.1ppm

Display: The output of the analyzer is connected to the PLC, the detection value is displayed on the touch screen (PPM), and the alarm value can be set

Using alumina ceramic thin film probe, ultra-high sensitivity, ultra-wide detection range, fast response.

Oxygen Analyzer

Measuring range: 0～1000ppm

Accuracy: 0.1ppm

Display: The output of the analyzer is connected to the PLC, the detection value is displayed on the touch screen (PPM), and the alarm value can be set

Using electrochemical cells, ultra-high sensitivity, ultra-wide detection range, fast response

Organic Solvent Adsorber

Size: 238mm in diameter, 407mm in height, material: 304 stainless steel with a thickness of 3mm, filled with 10kg of high-efficiency active adsorption material, connected to the main circulation pipeline, the circulating gas can first pass through the adsorber, and mainly absorb the volatilized organic gas. With a bypass system, manual valve control can choose to open or close the solvent adsorption column, and the adsorption material can be replaced quickly and easily. After replacing the activated carbon, the adsorption column can be evacuated to remove the air and avoid polluting the high-purity atmosphere in the box.

Ultra Clean Filtration System

The top of the box is equipped with a dust removal system. After the gas passes through the dust removal fan and the high-efficiency dust removal filter element, a laminar flow from top to bottom can be generated, and the gas in the box is sent back to the dust removal system from the bottom through the circulation pipeline.

Cleanliness: Class 10 (according to US FED standard 209E), ISO4 (according to international standard ISO14644-1)

Filtration system: high efficiency filter H13 grade to ultra high efficiency filter U15 grade

Gas flow rate: can be controlled at 0.2-0.45m/s

Control mode: fan control system with adjustable air volume.

Equipped with differential pressure gauge: measure the pressure difference before and after the dust filter. When the pressure difference is greater than a certain value, the dust filter needs to be replaced.

Temperature Control System

Integrated into ultra-clean filtration system

Adopt high-efficiency rotary compressor, high heat transfer coefficient heat exchanger, high impedance fan

The compressor is a split floor type to reduce vibration

Function: The temperature in the glove box can be adjusted and set (working temperature 15-36℃);

Display accuracy: 1℃

Rated cooling capacity: 1050W;

Cooling power: 640W

Acceptance Criteria:

Under standard conditions, 20°C constant temperature, a standard atmospheric pressure, 99.999% inert gas source, and empty box operation, the water oxygen index is less than 0.1 ppm.
