Large Cylindrical Tabless Battery Jelly Roll Flattening Machine

The TOB-GRP50320 Large Cylindrical Tabless Battery Jelly Roll Flattening Machine is designed for precision flattening and forming of current collectors in tabless (full-tab design) cylindrical lithium-ion power cells.
  • Brand:

    TOB
  • item no.:

    TOB-GRP50320
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Large Cylindrical Tabless Battery Jelly Roll Flattening Machine for Lithium-Ion Power Cell Manufacturing



Specifications


Product Introduction

The TOB-GRP50320 Large Cylindrical Tabless Battery Jelly Roll Flattening Machine is designed for precision flattening and forming of current collectors in tabless (full-tab design) cylindrical lithium-ion power cells.

By integrating servo-driven rotary flattening,ultrasonic-assisted forming, and controlled axial compression, the machine ensures flat cell end faces, uniform current-collector geometry, and high process consistency before welding and assembly.

This equipment is widely applied in tabless cylindrical power battery production lines, where electrical performance, structural stability, and manufacturing yield are critical.


Product Description

This machine is specifically developed for jelly roll flattening and current-collector forming in large cylindrical tabless lithium-ion batteries. During operation, the jelly roll is manually placed into the fixture and automatically clamped. Dual-side servo-controlled flattening heads rotate synchronously to evenly form the tabless current collectors while maintaining stable axial positioning.

An ultrasonic-assisted forming mechanism works in coordination with the rotary flattening heads, enabling slow and controlled feeding during compression. This process minimizes mechanical stress and ensures flat, uniform end surfaces, which is essential for reliable laser welding and electrical contact in tabless cylindrical cells.

The machine integrates dust extraction and in-process HI-POT insulation testing, allowing real-time quality control during the flattening process. Once the preset forming length is reached, the jelly roll is automatically transferred by a robotic handler to the downstream conveyor line.

This equipment is suitable for both pilot lines and mass production of tabless cylindrical power cells, offering high stability and consistent output.


Working Process

● Jelly roll loading

● Jelly roll positioning

● Dual-end servo rotary flattening of tabless current collectors

● Automatic station change

● Robotic unloading to conveyor line

● HI-POT insulation testing

● Manual collection


Main Components

● Drive System

Two servo-driven transmission units with synchronous belt mechanisms ensure precise and stable rotary motion.

● Positioning System

A dedicated positioning module consisting of pneumatic cylinders and positioning sensors provides accurate jelly roll alignment.

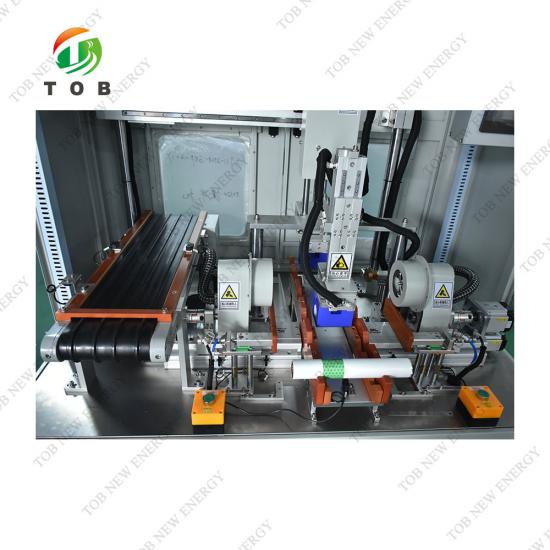

● Flattening Heads

Two servo rotary flattening heads with synchronized transmission, motor modules, and positioning sensors, specifically designed for tabless current-collector forming.

● Electrical Control System

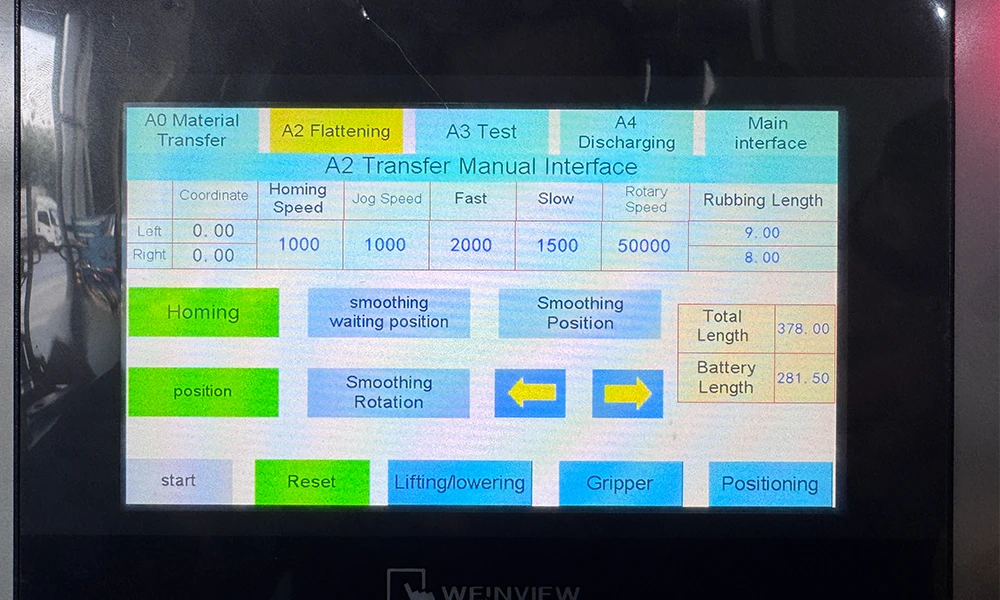

PLC-based control architecture with touchscreen HMI, detection sensors, relays, buttons, and safety interlocks.

● Machine Structure

Frame: structural steel square tubing

Platform: structural steel plate with nickel or chrome plating

Enclosure: aluminum alloy frame with transparent PVC panels


Technical Specifications

Product yield rate ≥99%(Scrap caused only by equipment-related factors)
Capacity / Speed (single machine) ≥2 PPM(Depending on material and process conditions)
Equipment uptime  ≥95%(Downtime caused only by equipment faults)
Power supply AC 220V, 50Hz
Voltage fluctuation ≤ ±10%
Installed power 2 kW
Air supply requirement ≥0.6 MPa (provided by customer)
Compressed air Pressure: 0.5–0.7 MPa
Consumption Approx. 100 L/min
Design standard Ergonomic operation and maintenance
Construction materials: Aluminum alloy, stainless steel, or corrosion-resistant electroplated components


Key Advantages (Tabless-Focused)

● Purpose-built for large cylindrical tabless lithium-ion batteries

● Servo-controlled dual-end rotary flattening for uniform current-collector forming

● Ultrasonic-assisted process improves end-face flatness and consistency

● Integrated dust collection and HI-POT testing

● High yield and stable operation suitable for automated production lines

● Supports scalable tabless battery manufacturing from pilot to mass production


Applications

● Tabless cylindrical lithium-ion power battery production lines

● EV and hybrid vehicle battery cell manufacturing

● Energy storage system (ESS) battery production

● Advanced cylindrical cell R&D and pilot lines


Product Display

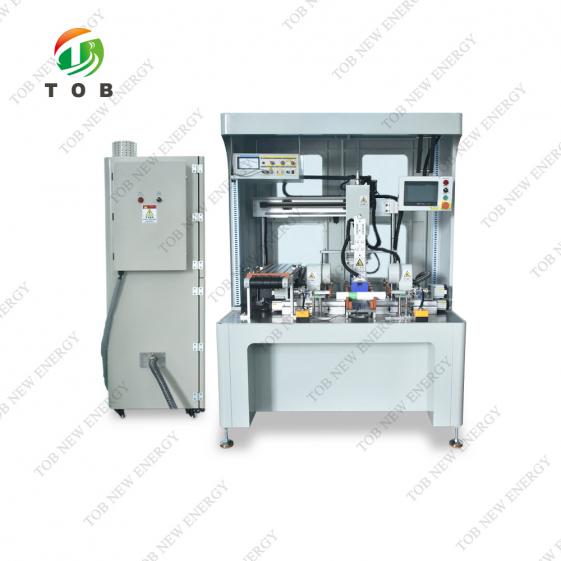

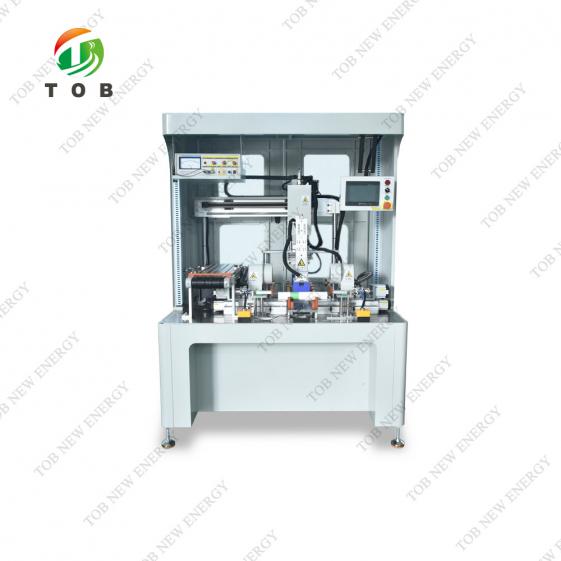

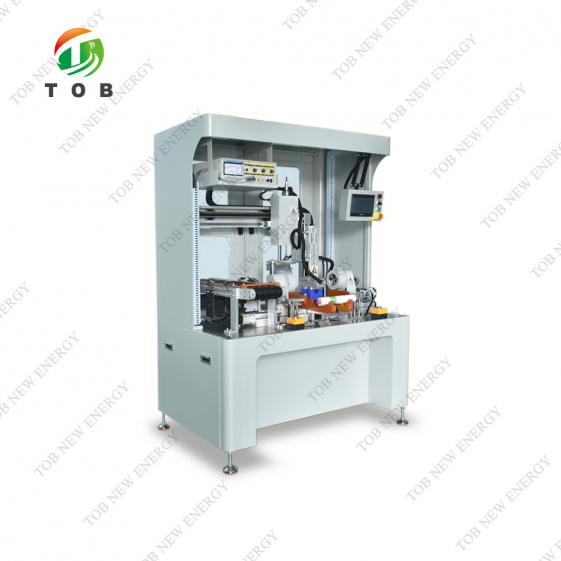

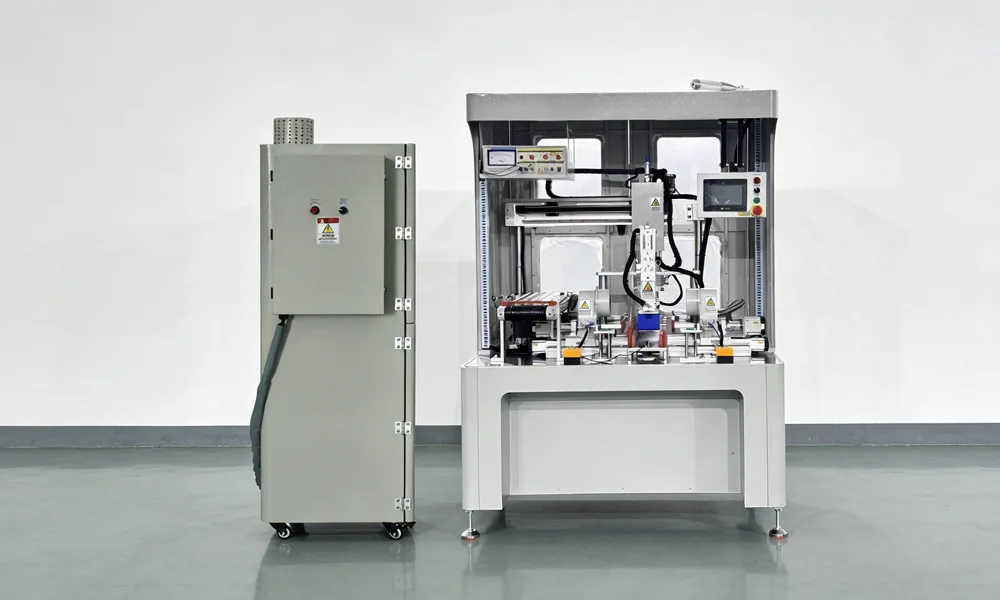

 Tabless Battery Jelly Roll Flattening Machine
 Tabless Battery Jelly Roll Flattening Machine

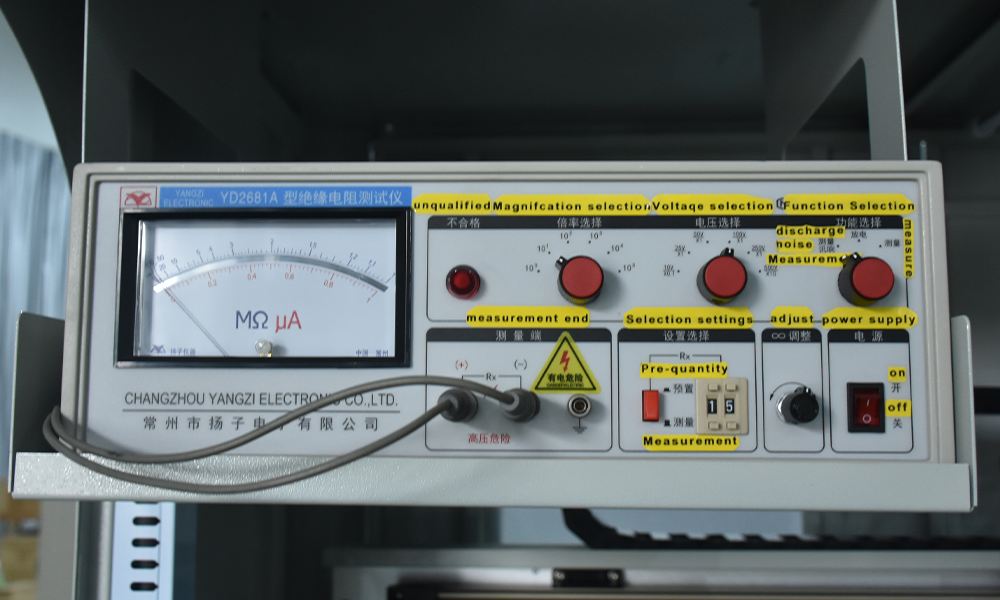

HI-POT insulation testing

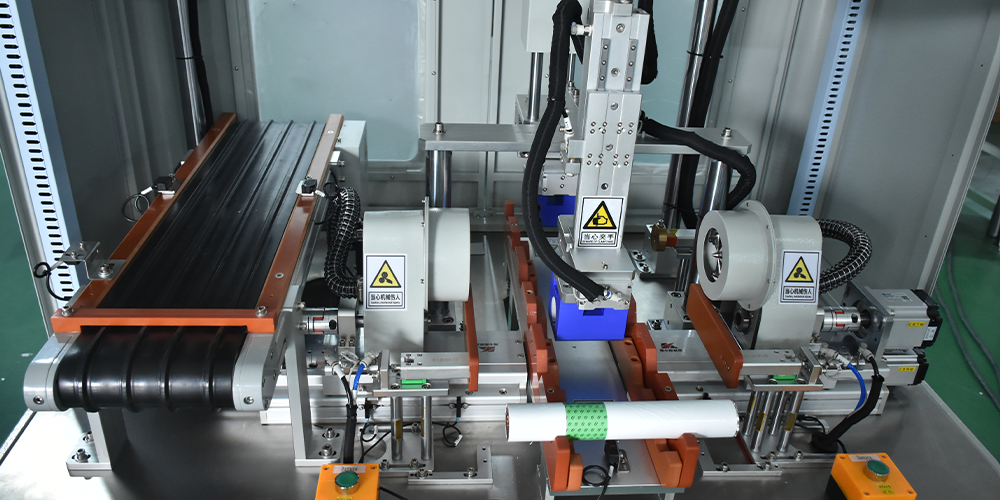

 Tabless Battery Jelly Roll Flattening Machine

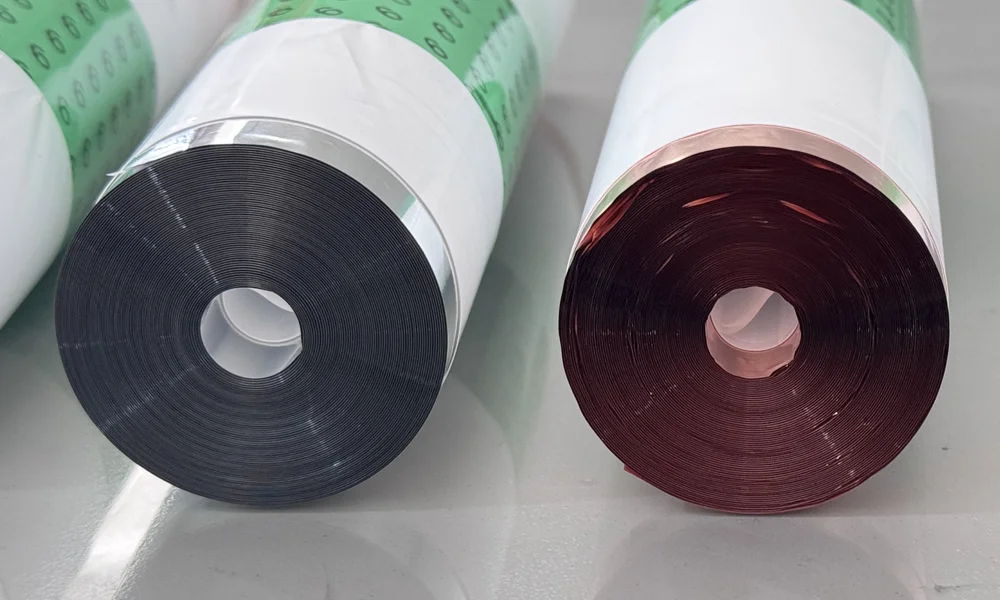

Jelly Roll Before Flattening

Before Flattening

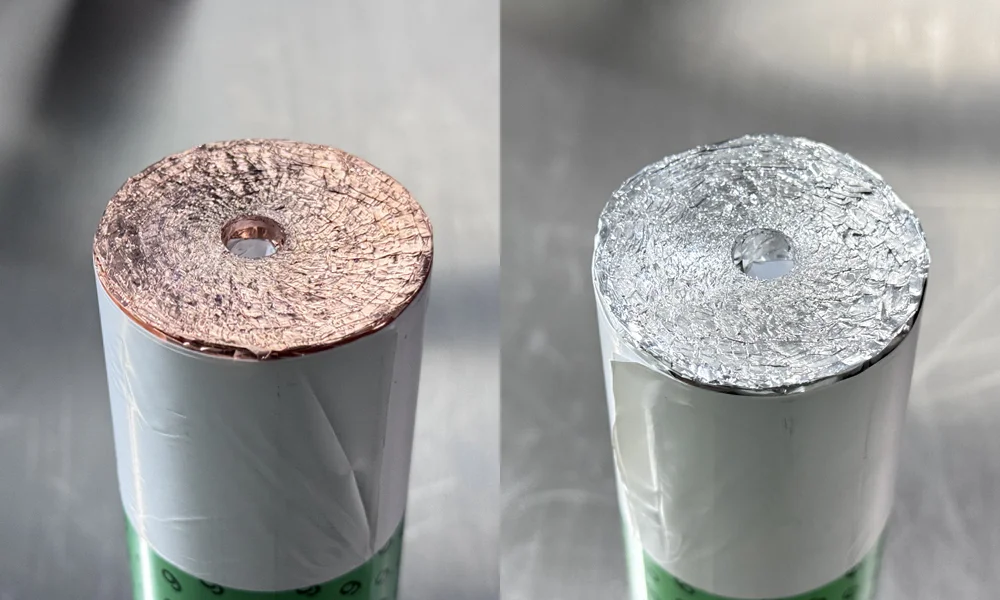

Jelly Roll After Flattening

After Flattening
