Semi-automatic Battery Cells Flatting Machine for 4680 and 32140 Tabless Cell

Semi-automatic Battery Cells Flatting Machine for 4680 and 32140 Tabless Cell

Specifications

Device functions and principles describes

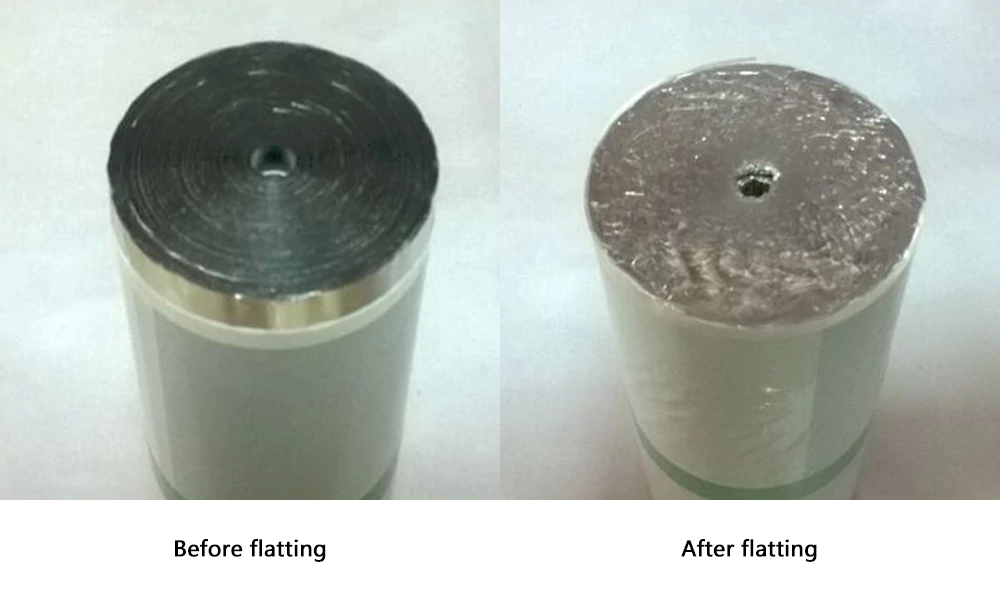

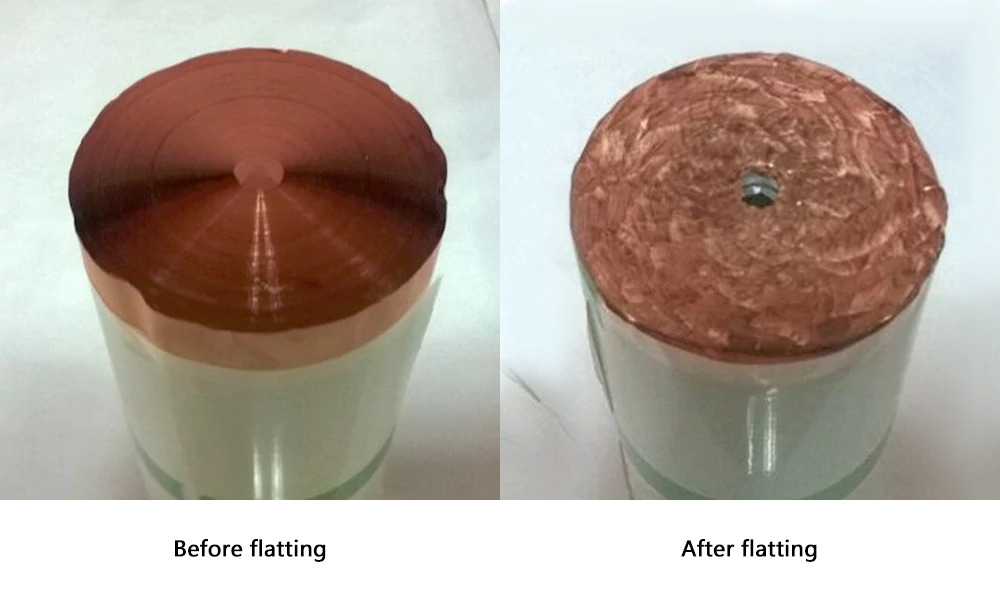

This TOB-RP-QJR46 Tabless Battery Cell Flatting Machine is mainly used for power cylindrical lithium battery tab shaping. The working process is as follows: manually place the cell on the cell jig, click start, the jig automatically clamp the cell; two side shaping fixture starts to work, the servo motor starts, drives the tab shaping fixture at both ends to rotate, one side turns positive, the other side reverses, and the shaping fixture does slow feed, and the inner roller of the shaping fixture rotates under the battery cell contact surface friction, so that the battery cell can be compressed and formed to ensure the flat end face until the set length of the battery shaping is completed.(The attached figure shows the comparison between before and after shaping)

Equipment operation flow

Feeding the cell→cell positioning→flatting each side of cell→Automatic transposition→after flatting, discharge to the follow line→Manual receiving

Main component composition

• Transmission mechanism: 2 sets, It is controlled by servo motor and driven by synchronous belt.
• Positioning mechanism: 1 set, It is composed of cylinder and positioning sensor.
• Flatting head: 2 sets,It is composed of flatting head, synchronous transmission mechanism, electric module and positioning sensor.
• Electrical control system: It is composed of PLC, touch screen, detection sensor, relay, button and other control components.

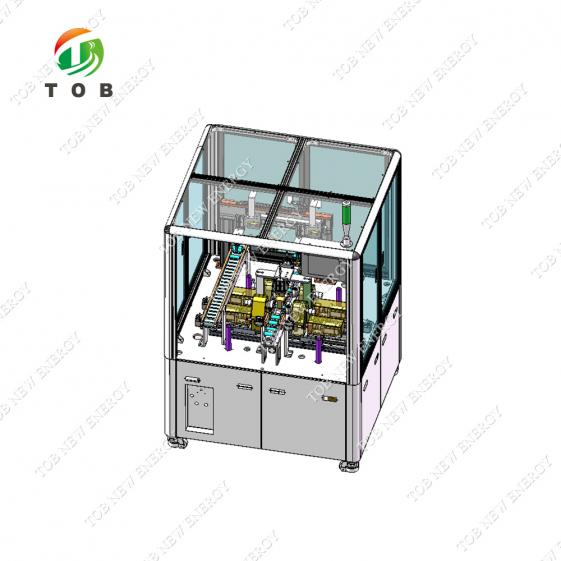

• Machine body: Structural steel square tube, Platform: Structural steel plates, nickel-plated or collared, Machine cover: Aluminum alloy frame, transparent PVC plate.

Equipment technical parameter

• The qualified rate of the product：99%(It only refers to product obsolescence due to equipment problems)
• Capacity per unit/Speed(Single machine):≥15PPM(It varies slightly according to the material process)
• Operation rate of equipment: ≥95%(A fault caused only by the equipment)
• Equipment electrical：Voltage 220V 50Hz; Voltage fluctuation less than ±10%; Equipment power: 2KW
• Air source requirement：≥0.6Mpa(Provided by customer)
• Compressed air: Pressure 0.5-0.7MPa, flow 100 L/min
• Machine design should achieve excellent man-machine engineering performance
• Machine structure materials preferred aluminum and stainless steel or electroplating corrosion resistant

Spare parts list delivered with the device

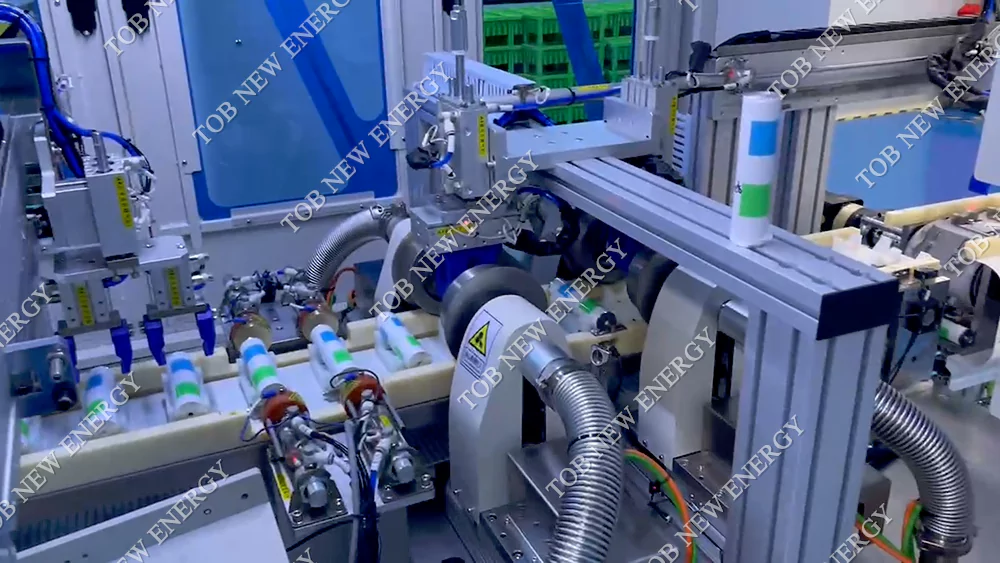

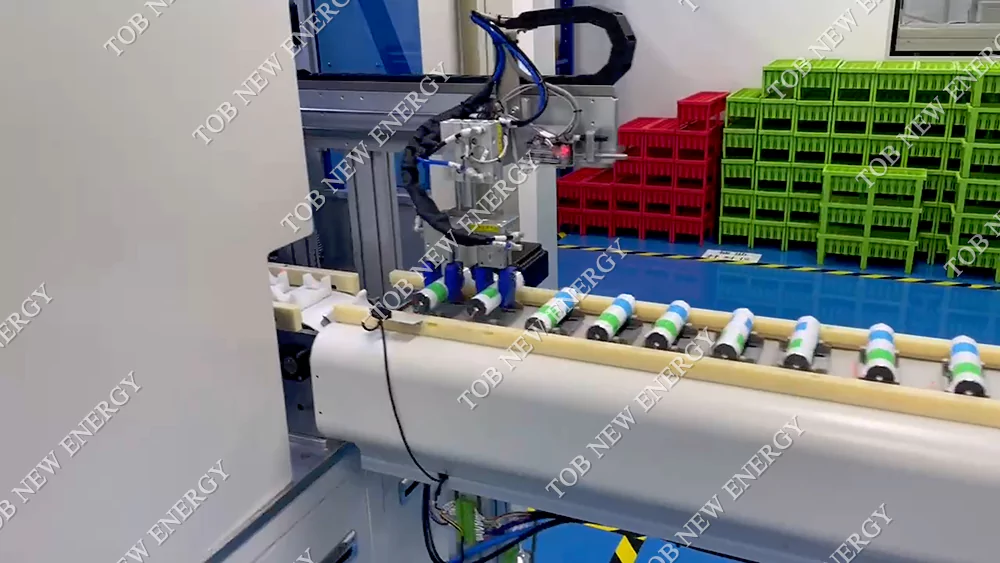

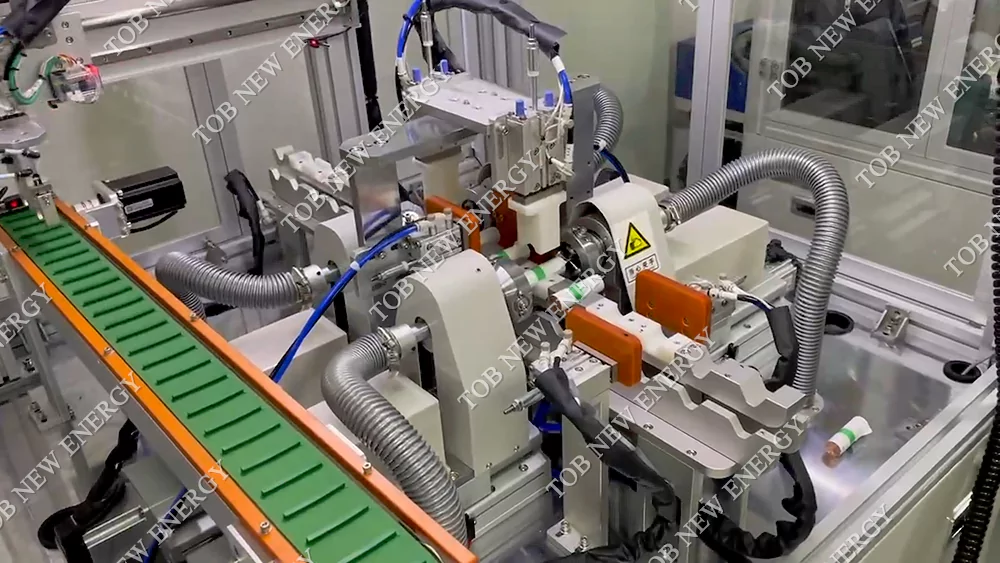

Product Display
