Prismatic Aluminum Case Battery PET Film Wrapping Machine

This equipment is used for Prismatic Aluminum case battery outside insulation tape covering, With covering the insulation tape for total case, it can protect the battery and avoid battery circuit short.

Brand:
TOB NEW ENERGY
item no.:
TOB-SFCA-220
order(moq):
1 set
Payment:
L/C,T/T,Western Union
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Semi-auto Prismatic Aluminum Case Battery PET Film Wrapping Machine

SPECIFICATIONS

Working process：

Manual battery feeding-Battery auto to taping position-Tape auto discharging-Auto taping-tape cutting auto-Final manual collection.

Power supply	AC220V，50Hz,+10%～-10%； Total power 1KW.
Compressed air：	0.6MPa～0.8MPa ±1% (Clean air after dewatering, oil free, filtration and voltage stabilization)
Equipment	weight ：about 400kg
Equipment	dimension ：L（1.53m）＊W（0.98m）＊H（1.83m）
Environmental requirement	Temperature : 25±5℃
	Humidity: 30%～75%RCH, Ensure that the air is dry and free from acid-base corrosion
	Must grounding
Technology parameter	Joint blister≤2mm*3mm
	The side blister≤2mm*5mm
	Adjustable overlap:5mm～10mm
	Efficiency :200pcs/h
	Operator 1people
	Product qualification rate : ≥98%
Suitable battery size	Height :120～220mmWidth :100～180mmThickness : 20mm～60mm

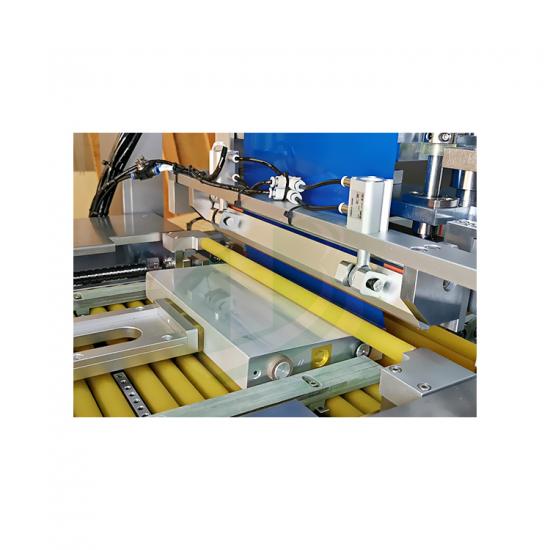

Battery feeding

Aluminum Case Battery PET Film Wrapping Machine

Taping discharging

Battery PET Film Wrapping Machine

Taping structure

PET Film Wrapping Machine

Manual battery collection

Film Wrapping Machine

PRODUCT DISPLAY

Wrapping machine Semi-auto wrapping machine Film wrapping machine Wrap packaging machine
