Laser Welding Machine for Cylindrical Tabless Battery Current Collectors

This TOB-ZFJ50320-3000 laser welding machine is designed for cylindrical tabless battery cells, specifically for precision welding of cathode and anode current collectors.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-ZFJ50320-3000
  • order(moq):

    1 set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Laser Welding Machine for Cylindrical Tabless Battery Current Collectors



SPECIFICATIONS


Product Overview

● This TOB-ZFJ50320-3000 laser welding machine is designed for cylindrical tabless lithium-ion batteries, focusing on the high-precision welding of positive and negative current collectors.

● It is commonly used in battery production lines, pilot manufacturing, and laboratory-to-mass-production environments where welding consistency, yield rate, and process stability are critical.

● The system integrates fixture-based cell positioning, pneumatic pressing, and galvanometer laser welding, enabling accurate alignment and stable welding results for tabless battery structures.


Product Description

● The machine operates by securely positioning the flattened cylindrical battery cell using a precision fixture. After manual placement of the current collector, a pneumatic press head applies uniform pressure to stabilize the welding area. A galvo-controlled laser system then performs fast and precise welding on both the positive and negative current collectors.

● This equipment is engineered to support modern tabless battery designs, helping manufacturers improve electrical conductivity, reduce internal resistance, and maintain consistent welding quality throughout production.
With PLC-based control and an ergonomic mechanical design, the machine offers reliable operation, easy integration, and long-term production stability.


Working Principle & Process Flow

Working Principle:

● The machine combines mechanical positioning, pneumatic pressing, and laser energy control to achieve accurate and repeatable welding of battery current collectors.

Process Flow:

● Manually place the flattened cylindrical battery cell

● Manually place the current collector

● Pneumatic cylinder presses and fixes the collector

● Galvanometer laser system performs precision welding

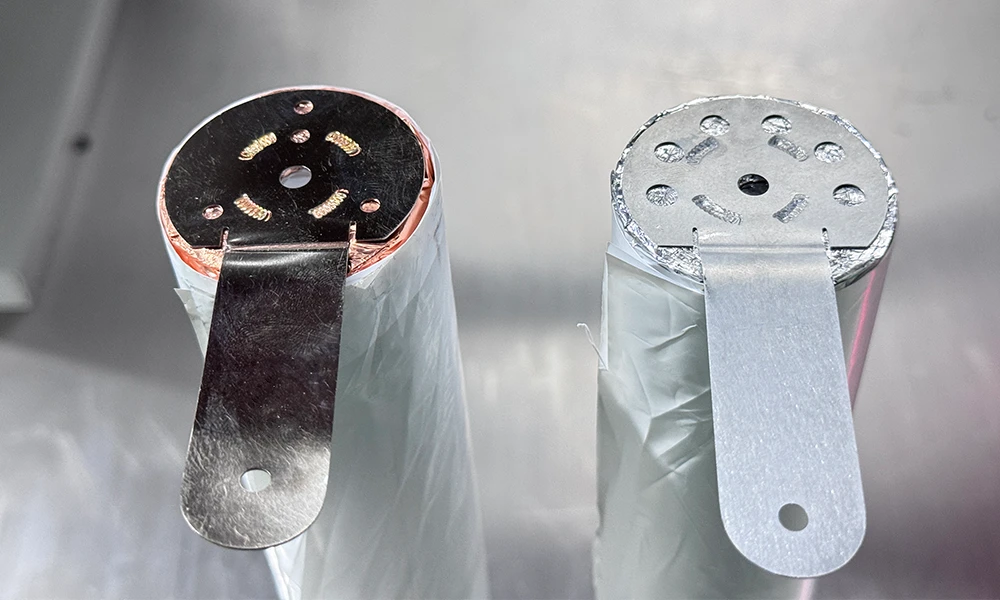

● Positive and negative collectors are welded sequentially

● Dust extraction cleans the welding area

● Welded cell is manually transferred to the casing process


Main System Components:

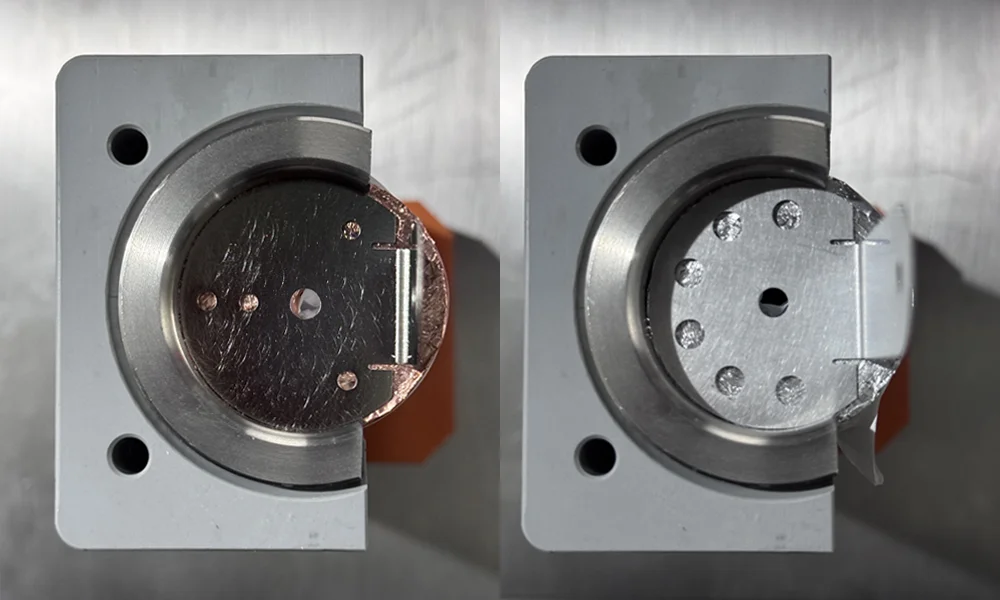

● Cell Positioning System
Ensures accurate alignment of cylindrical cells using pneumatic cylinders and precision fixtures.

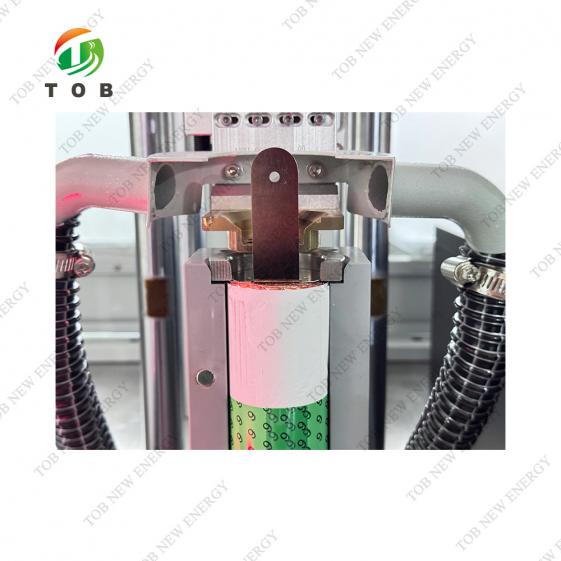

● Welding Press Head Assembly

Provides stable and uniform pressure through pneumatic cylinders, linear guides, and spring mechanisms.

● Laser Welding System

Includes a galvanometer scanner, positioning cylinders, and an industrial laser source for high-speed current collector welding.

● Electrical Control System

PLC controller, touchscreen HMI, sensors, relays, and safety components ensure precise process control and operational safety.

● Machine Frame & Enclosure

Constructed with structural steel, corrosion-resistant plated platforms, and aluminum alloy safety enclosures with transparent PVC panels.


Equipment technical parameters

● Product qualification rate: 99%(only referring to product scrapping caused by equipment reasons)

● Single equipment capacity/speed (single machine) :≥2PPM (slightly varying depending on the material process)

● Equipment utilization rate: ≥95% (Faults caused only by equipment)

● Electrical equipment: Voltage 380V 50Hz; The voltage fluctuation is less than ±10%

● Equipment power: 10KW

● Air source requirement: ≥0.6Mpa (provided by the customer)

● Compressed air: Pressure 0.5-0.7 MPa, usage 100 L/min

● The machine design should achieve excellent ergonomic performance

● The structural materials of the machine are preferred to be aluminum, stainless steel or electroplated for anti-corrosion


Typical Applications of the Laser Welding Machine
● Cylindrical tabless lithium-ion battery production

● Battery pilot production lines

● Laboratory-to-production scale-up

● Custom battery manufacturing solutions

● Advanced battery R&D welding processes


Key Advantages
● Designed specifically for tabless cylindrical battery structures

● High-precision laser welding of current collectors

● Stable welding quality with ≥99% yield rate

● Supports consistent production in battery manufacturing lines

● Suitable for both pilot lines and scalable production

● Easy integration into existing battery production systems


PRODUCT DISPLAY

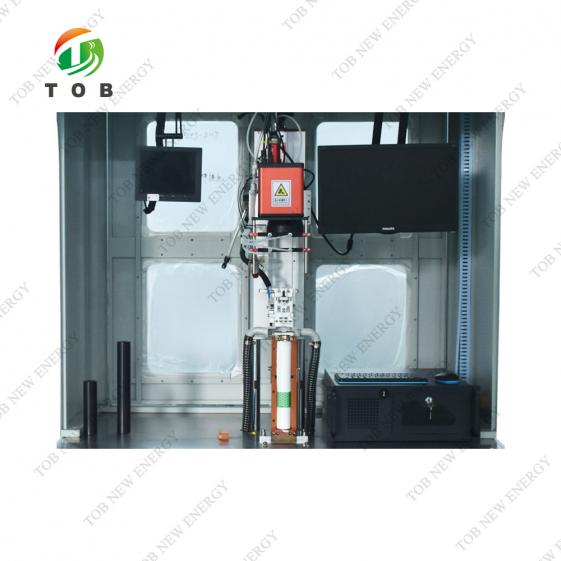

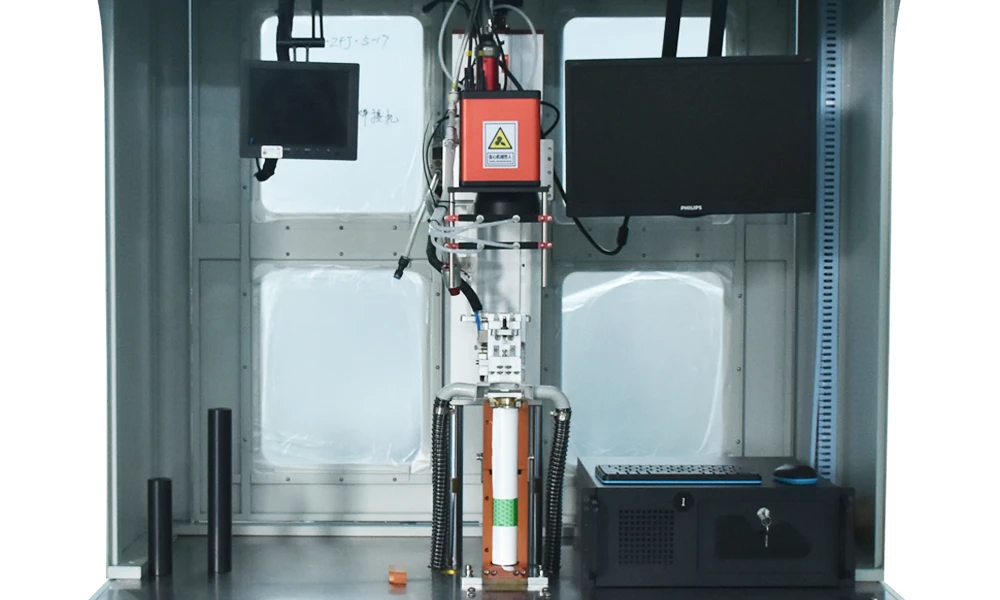

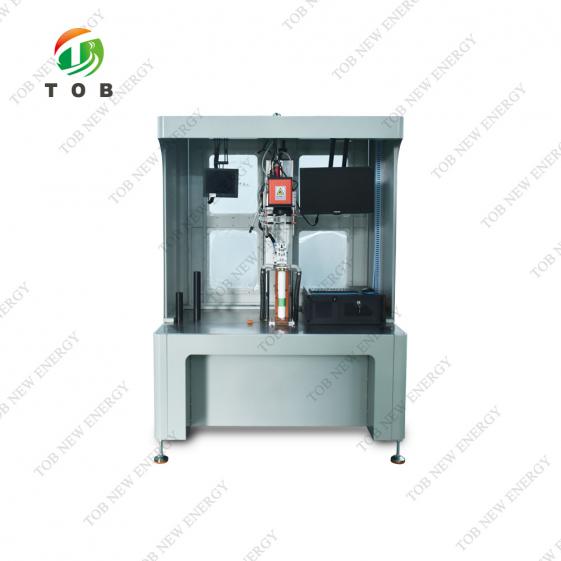

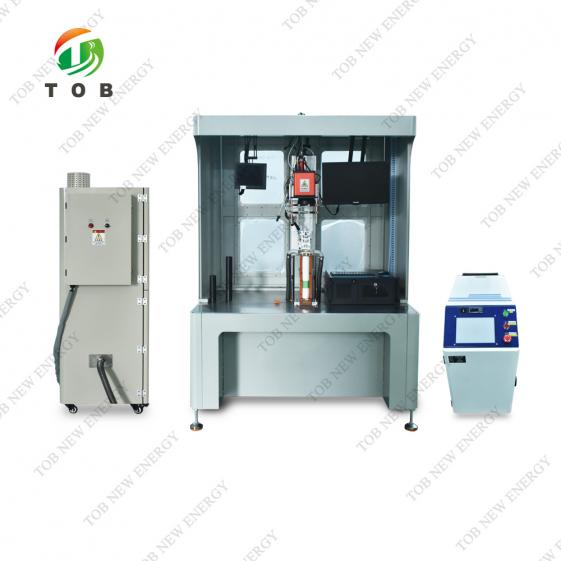

Laser Welding Machine for Cylindrical Tabless Battery Current Collectors

Laser Welding Machine for Cylindrical Tabless Battery Current Collectors

Laser Welding Machine for Cylindrical Tabless Battery Current Collectors

Laser Welding Machine for Cylindrical Tabless Battery Current Collectors
