8 Channels Coin Cell Testing Board for CR2016, CR2032, CR2325, CR2450

8 Channels Coin Cell Testing Board with Cable for CR2016, CR2032, CR2325, CR2450

SPECIFICATIONS

• 8 cables with optional connectors are included in the standard package for immediate use.

• The connectors to the board are the banana plug for easy insertion and removal, the diameter of the eight round plugs of the Testing Board are around 4 mm, the Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2mm.

• Another end or of connector testing system are optional connectors (choose the right one for you from above "connector type" when order).

• 4-pin bayonet connectors.

• 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system.

• Built-in battery polarity check light will be on when right place the coin cell and press down the check button.

• Can test coin cell  with diam. up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450.

• 8 channels work independently

• Easy battery insertion and removal

• Holder Material: Polypropylene

• Dimension: 230 mm L x 80 mm W x 32 mm H

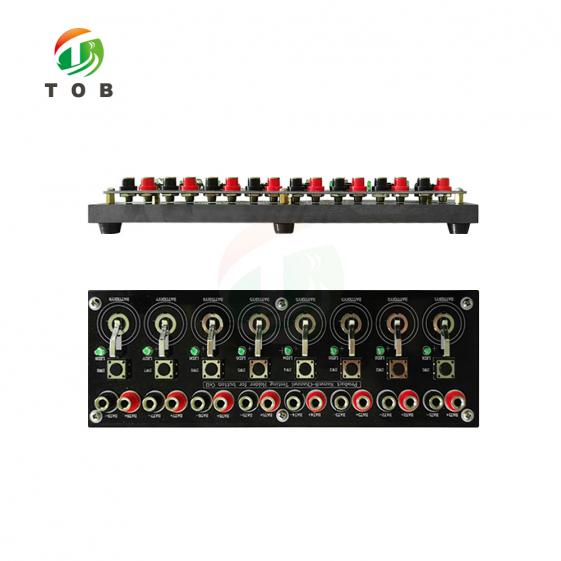

Product Display
