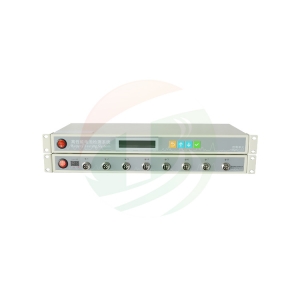

5V5mA-4008 Coin Cell Battery Test Analyzer

5V5ma Coin Cell Battery Tester
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-CT-4008-5V5mA
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

8 Channel Coin Cell Battery Test Analyzer 5V5mA-4008 With DCIR Testing


SPECIFICATIONS



1 TOB-CT-4008-5V5mA Button Battery Tester is an eight channel battery analyzer to analyze

small coin cells with a range current 0.025-5mah, voltage 0-5v. Each channel of the analyzer

has independent constant-current and constant-voltage source, which can be programmed and

controlled by computer software.

2 This Button Battery Tester provides most applications in battery testing fields such as electrode

materials research, battery performance test, small scale battery formation, capability grading,

battery pack testing, etc.

3 The Button Battery Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

4The 4 system tester is with more quicker testing speed and add DRIR testing.


Project index

Parameter index

Input Power

AC 110V/220V ±10%   50Hz/60Hz

resolution

AD:16bit;DA:16bit

Input Resistance

≥10 GΩ

Input Power

354mW

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Constant Voltage Range

25mV~5V

Discharge Min Voltage

0V

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Current

Per Channel Current Range

0.025mA-5mA

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Power

Per Channel Output Power

0.025W

Stability

± 0.1% of FS

Time

Current Response Time

1ms (0-Full Range)

Step Time Range

≤(365*24 )hour/step,

Time Form Support 00:00:00(h、min:s、ms)

Data Recording

Record Condition

Minimum  Time Interval: 100ms

Minimum Voltage Interval: 10mV

Minimum Current  Interval : 0.01mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、

Constant Current and Constant Voltage Charge、CPC

End Conditon

Voltage、Current、Relative Time、Capacity

Discharge

Discharge Mode

CCD、CPD、CRD

End Condition

Voltage、Current、Relative Time、Capacity、

Pulse

charge

CCC, CPC

Discharge

CCD, CPC

Min Pulse Width

500ms

Automated Switch

Automated swith from charge to discharge for each pulse

End Condition

Voltage, Test Time

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function,Max Support 3 Layers

Protection

Software Protection

l     Power-down Data Protection

l     Off-line Testing Function

l     Setting Protection Condition,Setting Parameter:Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

DCIR testing

Support

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Database

MySQL Database

A Means of Communication of Upper Machine

TCP/IP Protocol

Data Output

EXCEL、TXT、Graph

Communication Interface

Ethernet Port

Per Unit Main Channels No.

8

Dimensions

250*200*60(mm)

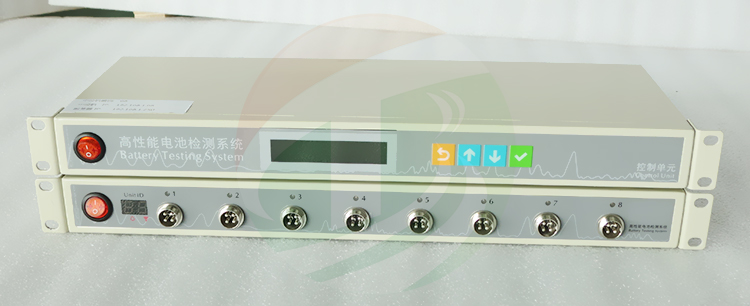

Product Display

 Battery Test Analyzer

 Battery Test Analyzer

 Battery Test Analyzer

 Battery Test Analyzer
