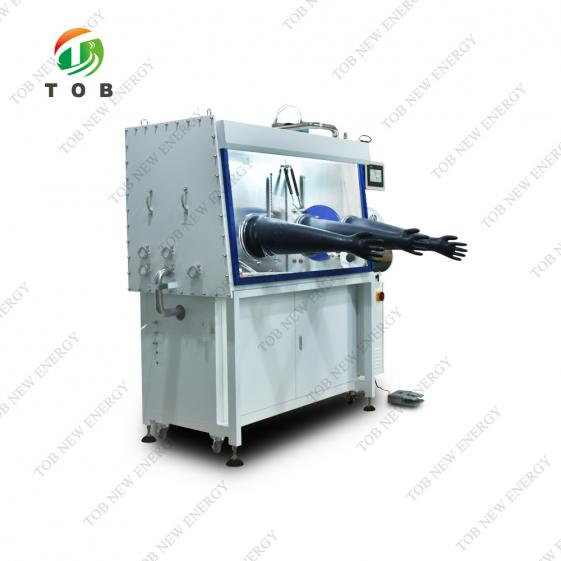

3 Gloves Glove Box with Heating Function

This TOB-GB-1500-S1-T1 glove box with 3 gloves, single side operation, integrated with a single column purification unit, PLC touch screen operation control, vacuum pump, bracket, a closed box, with operating surface tilt and detachable safety glass front window.

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-GB-1500-S1-T1

  • order(moq):

    1

  • Payment:

    L/C, T/T

  • product origin:

    China
inquiry now
Product Detail

3 Gloves Glove Box with Heating Function


Specifications

1. Model: TOB-GB-1500-S1-T1

Universal（1500/750/900）

3 gloves glove box, single side operation, integrated with a single column purification unit, PLC touch screen operation control, vacuum pump, bracket, a closed box, with operating surface tilt and detachable safety glass front window. Under normal conditions, namely the 20℃ constant temperature, a standard atmosphere, inert gas 99.999%, water and oxygen index less than 1 ppm.


2. Glove box functions:

Closed cycle

- The gas in the glove box is circulated in a closed loop through the circulation exchanger and purifier to continuously remove water and oxygen.

Automatic control of regeneration

- The water and oxygen removal materials can be regenerated, and the regeneration process is controlled by the program.

Automatic cleaning

- The atmosphere arrangement inside the box gloves is completed through automatically controlled cleaning valves

Box pressure control

- The pressure inside the box glove is automatically controlled by PLC, and the working pressure can be freely set within +/- 15mbar. over +/- 16mbar system automatic protection

Vacuum pump automatic control

- The vacuum pump is required to be turned on automatically when needed.


3.  Basic configuration

* 1 set 304 stainless steel box, acid-resisting, thickness : 3mm

* 1 stainless steel vacuum transitional chamber, φ360*L600mm,right side

* 1 small stainless steel transitional chamber,φ150*L300mm.150℃, right side

* 1 front window with 3 glove ports.

* 6 pcs of butyl rubber gloves.

* 1 set of lighting system

* 1 set of high-performance circulating fan, equipped with frequency conversion

* 1 set of PLC control and touch screen operating system

* 1 set of purification system

* 1 set vacuum pump

* 1 set of water analyzer

* 1 set of oxygen analyzer

* 1 set of organic solvent adsorber

* 1 power interface inside the box

* 6 KF40 backup interface

* 1 bracket and trundle

* 1 foot pedal

* 10 pcs Blind flange

* 2 pcs gloves ports cover


4. Technology parameters

Item

Parameter

Glove box

Box

Box size: (L*W*H)=1500×750×900mm

Box material: stainless steel 304, thickness 3mm

Inner surface: stainless steel wire drawing treatment

Outside surface: paint, white

Front window

Tilt windows, transparent tempered safety glass, thickness 8 mm

The glass window adopts a solid O-ring (vacuum sealing method) flange window structure

1. The window flange is cut into a rectangular ring shape using a solid thick plate, with high strength, resistance to impact and compression deformation, the sealing grooves can be open.

2. The overall flange window and annular sealing groove are formed with a large gantry machining center, and the flatness of the sealing support surface and the bottom surface of the sealing groove is＜0.1mm/m.

3. The flange window and the box body are welded continuously, and non-destructive testing is conducted on the welds to ensure that there are no leaks at the welding points.

4. Adopt vacuum sealing method of integral ring "O" type sealing ring embedded in the integral ring groove. The sealing ring has no seams, high sealing reliability, low leakage rate, and the leakage rate of the box is＜0.0006 vol%/h.

5. Suitable for sealing vacuum equipment windows and doors.

Glove ports

The material is Aluminum alloy, O-ring seal, easy to maintain, and good sealing performance

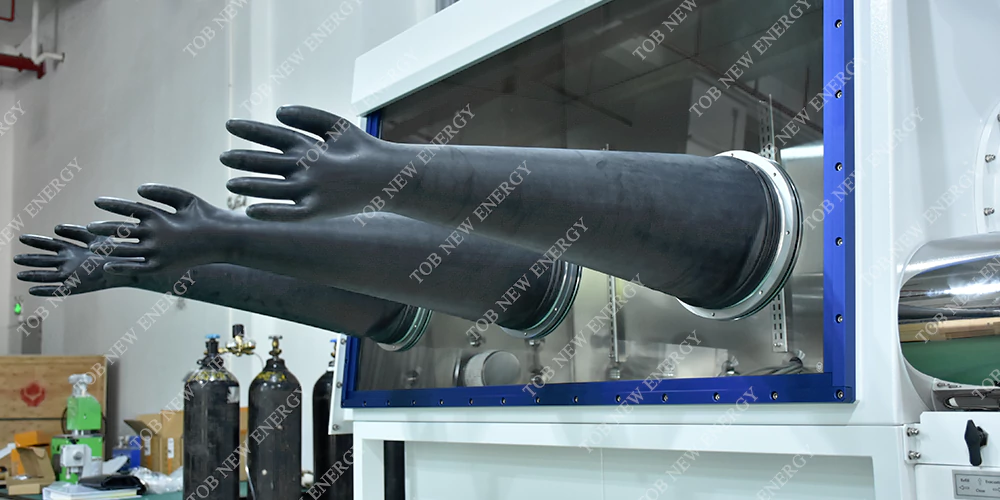

Gloves

Butyl rubber, Ø 8", length 32"

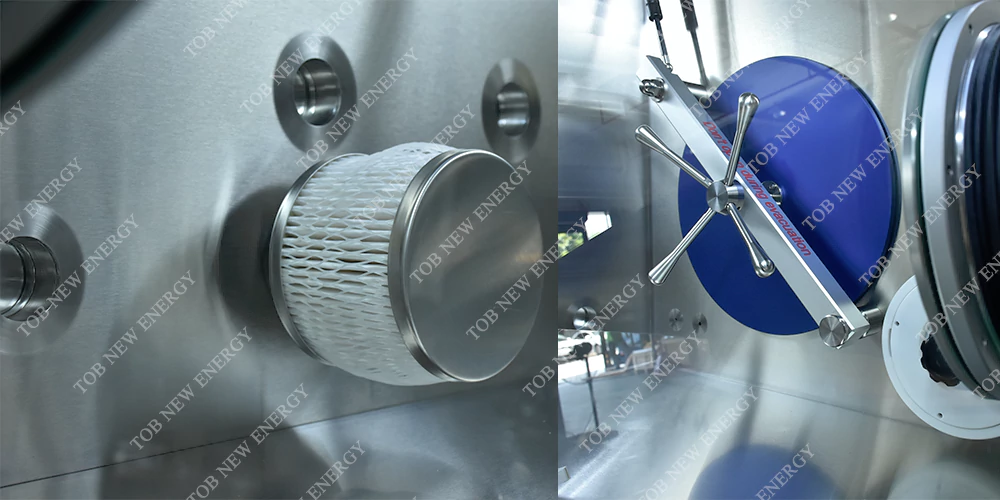

Filter:

0.3 microns, 1 gas inlet and 1 gas outlet

Customize:according to the final drawing.

Shelf

Stainless steel, 3 layers

Lighting

LED lights, installed in front of each glass window

Connector

Backup interface 6pcs, DN 40 KF, (if need add more, can customize)

Power interface 1pc (220V)

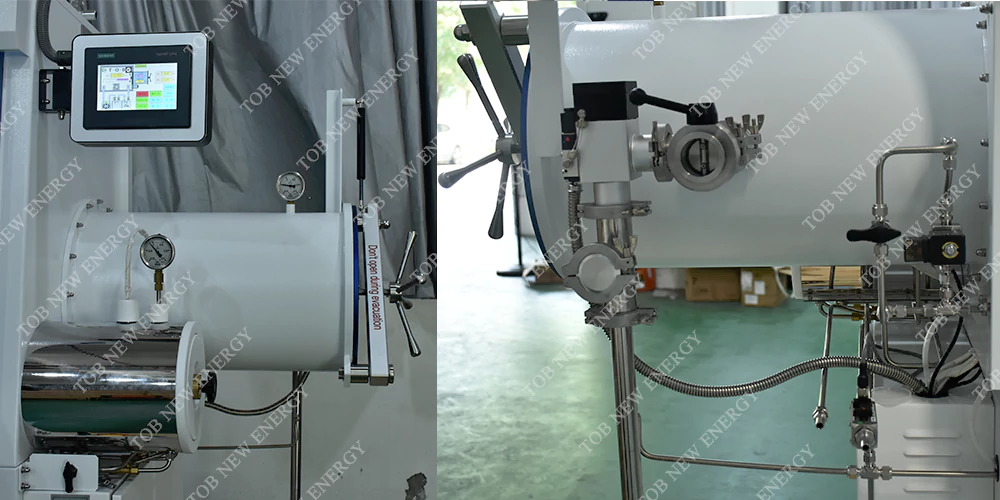

Large antechamber

Chamber

Size: Ø 360mm, length 600mm

Material: 304 stainless steel

Surface: inner surface wire drawing process, outer surface painting (white)

Accessary

Sliding tray: 304 stainless steel

Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: Analog display

Control

Solenoid valve touch screen automatic operation

Small antechamber

Chamber

Size: diameter 150mm, length 300mm

Material: 304 stainless steel

Surface: inner: wire drawing process, outer: painting (white)

Accessary

Standard configuration: small cabin tray,304SS

Door: double door, thread lock

Pressure gauge: Analog display

Control

Manual valve manual operation

Heating

Heating mode: It is heated in a heating tube with a water-cooled flange

Heating temperature:≤150℃

Heating power:≤2000W

Heating control: meter display, can set heating temperature and heating time.PID intelligent temperature control setting function, accurate temperature control.

Gas purification circulation system

Purification column

Function: gas sealed, remove water, remove oxygen

Container material: 304 stainless steel

Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg

Purification capacity: oxygen: 60L, water: 2Kg

Water and oxygen indicators: less than 1ppm

Circulatory system

Working gas: nitrogen, argon

Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)

Vacuum pump

12m³ / h, rotary vane pump, with oil mist filter, air vibration control

Valves

Main valve: DN 40 KF, electrically operated angle valve

Control valve: electromagnetic integrated valve(Stainless steel integrated valve seat, single column is integrated for six valves)

Control System

Function

Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function

Automatic control, cycle control, password protection

SIEMENS PLC touch screen

Pressure control

Control box, transition chamber pressure, cabinet working pressure +/- 15mbar can be set freely, beyond +/- 16mbar system automatic protection

Pedal

Control the box pressure, easy to operate boost and buck

Display system

Using Siemens PLC touch screen, display running status, box pressure, system records etc

Vacuum system control

Vacuum pump, can be manually or through the PLC to start, flow 12m³/h, vacuum of the transition chamber, and keep the box pressure balance, vacuum pump limit vacuum ≤ 2x10-1pa

Water analyzer

Measuring range: 0 ~ 500ppm

Accuracy:0.1ppm

Adopt P2O5 senser, wide range of applications, especially for lithium manufacturing and metal organic and other users, the water probe can be cleaned by the regeneration process to restore the initial state, can be reused

Oxygen analyzer

Measuring range: 0 ~ 1000ppm

Accuracy:0.1ppm

The output of the analyzer is connected to the PLC, and the measured values are displayed on the touch screen (PPM), and alarm values can be set

Using electrochemical battery, ultra-high sensitivity, ultra-wide detection range, fast response .

Quick organic solvent adsorber

Size: Ø 238mm, height 407mm, material:3mm thickness 304 stainless steel, filled with high-efficiency activated adsorption material (activated carbon + alumina), connected with the main circulation pipeline, the circulating gas can first pass through the adsorber, mainly adsorbing volatile organic gas. Quick and easy replacement of adsorbent material. After replacing the activated carbon, the adsorption column can be vacuumed to remove the air and avoid polluting the high-purity atmosphere in the box.

Customize point:

1.clamp wire pass KF40 port directly, filled with glue

2.Manual bypass and control system for big antechamber


5. Acceptance standard and installation conditions:

Acceptance standard:Under standard conditions, i.e. 20 ℃ constant temperature, one standard atmospheric pressure, 99.999% inert gas source, and empty box operation, the water oxygen index is less than 1 ppm


6. Installation conditions:

(1) Pure argon gas*3 bottle (nitrogen/helium gas can also be used): Purity of 99.99%

(2) High-purity argon gas*1 bottle (nitrogen/helium gas can also be used):Purity

(3) Argon hydrogen mixture gas*1 bottle (nitrogen hydrogen mixture or helium helium mixture gas can also be used)

- The hydrogen content is 5%~10%,  the rest is high-purity argon (or high-purity nitrogen).

- The gas of 1 2 3 should keep the same!

(4) Pressure reducing valve for working gas cylinders*1

- The main gauge pressure range is ＞15Mpa, the secondary gauge pressure range is 0-1Mpa (or can accurately read 0.4-0.6 Mpa)

(5) Pressure reducing valve for regeneration gas cylinder*1

- The main gauge pressure range is ＞15Mpa, and the secondary gauge pressure range is 0-0.5Mpa (or can accurately read 0.05-0.08 Mpa).

- The interface thread of the pressure reducing valve should be consistent with argon hydrogen mixed gas cylinder.


PRODUCT DISPLAY

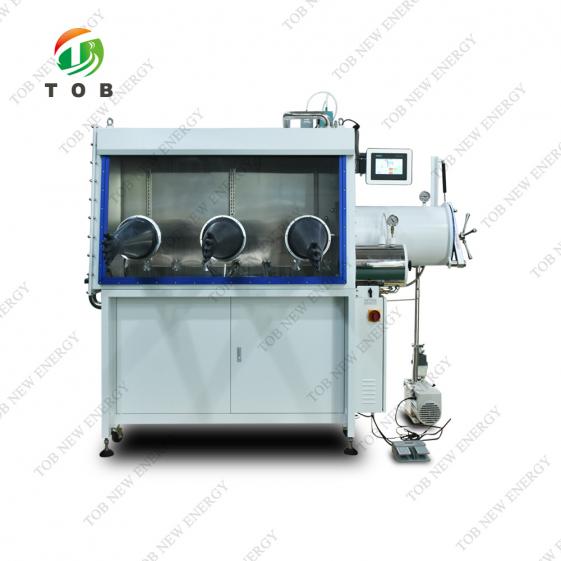

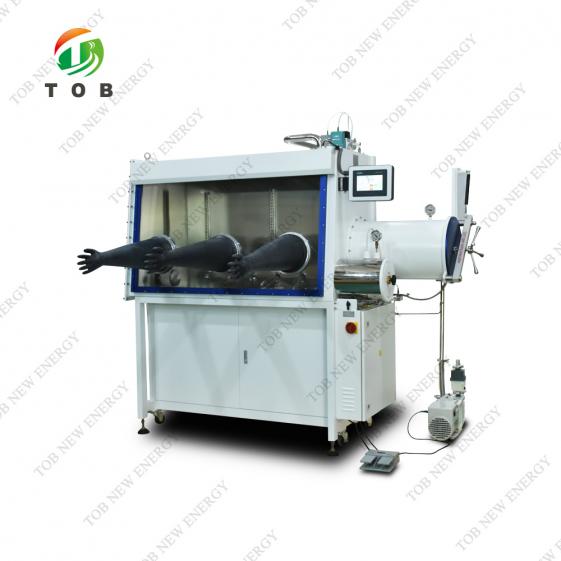

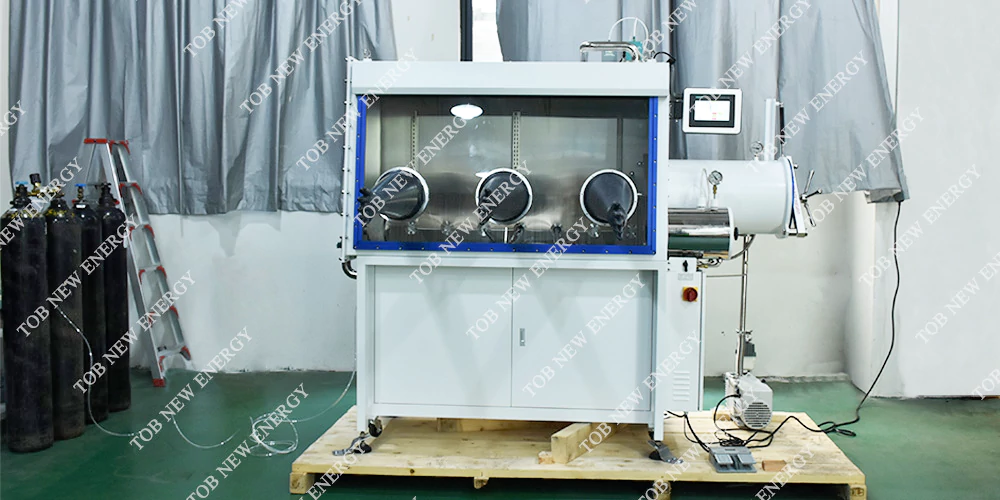

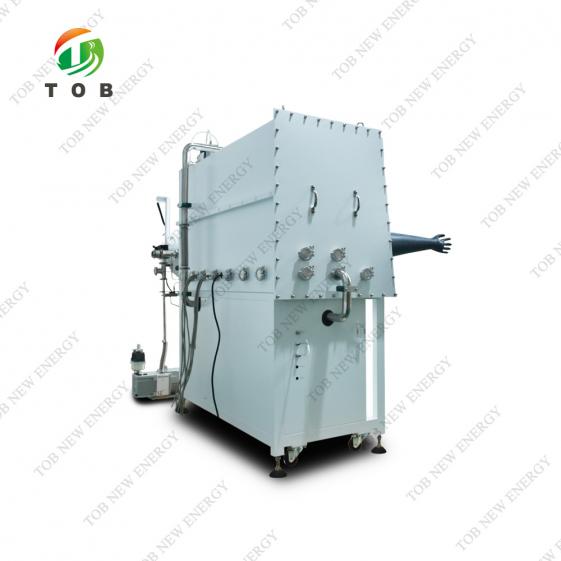

3-Gloves-Glove-Box

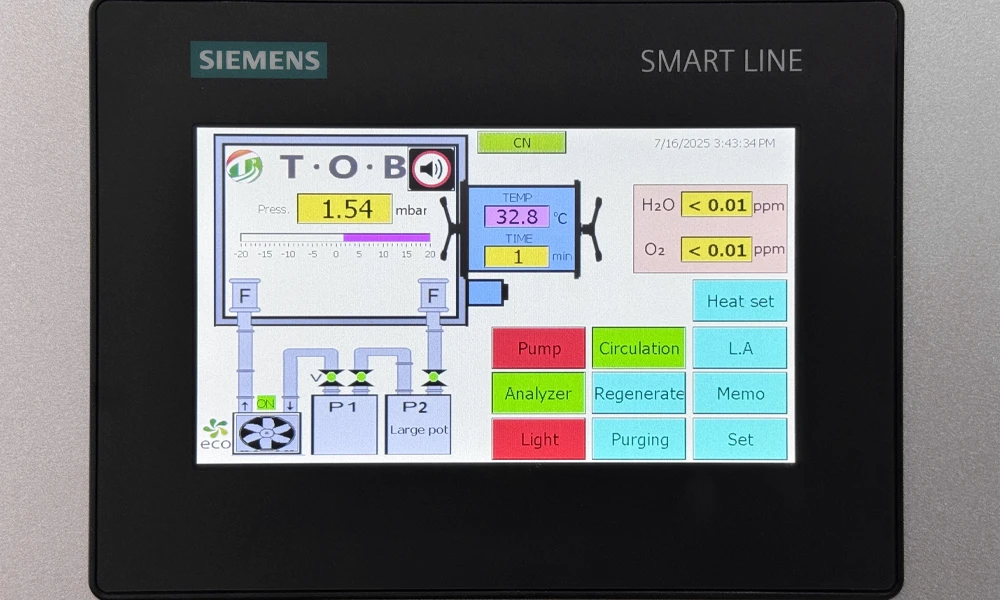

Glove Box Water and Oxygen Index is Less Than 0.01PPM
