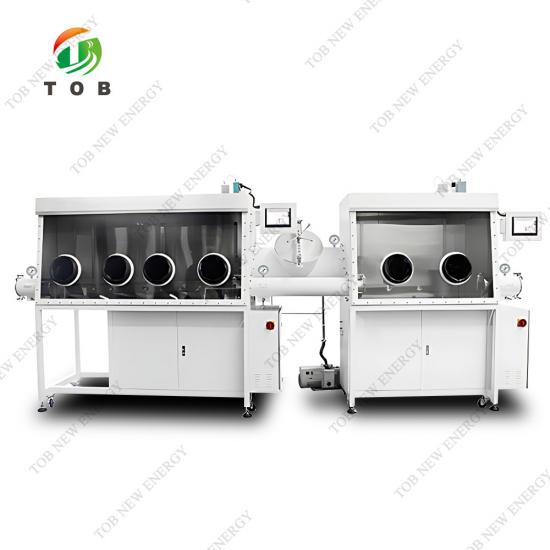

Double Purification Glove Box

Double-column system can work without interruption, for universities and large-scale production。

  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-GB-JX
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Double Purification Glove Box Inert gas protection chamber



Specifications


Features

The intelligent system of the Internet of Things can be installed to realize the motion control and centralized management of the glove box, which is safe and secure. It has intelligent functions such as real-time synchronization of equipment status, equipment data report records, historical data query, active notification of alarm messages, remote commissioning, online fault diagnosis and online repair, online customer service and other intelligent functions.


Control system: Siemens PLC

Purifier: double column

Moisture content: <1ppm

Oxygen level : <1ppm


Product Specification

Glove Box Chamber

The

Chamber

Materials:304SS,Thickness :3mm

External surface:304SS

Inside surface:Oil film brushed surface

Size:

Optional length: 1500、1800、2440、3660、4880、7320mm

Optional depth :750、1000、1200mm

Height :900mm

Front window

Tilt windows, transparent tempered safety glass, thickness 8 mm

Glove ports

Material is POM or aluminum alloy: O-ring seal

Gloves

Butyl rubber, thickness 0.4mm, diameter7''or8"

Filter

0.3 microns, a gas inlet and a gas outlet

Shelf

Stainless steel, built-in 2 layers adjustable height

Lighting

LED lights, LED light, installed in the lampshade

Connector

DN 40 KF,several spare interfaces,Power interface 1pc (220V)

PurificationSystem

Purification column

Function: gas sealed, remove water, remove oxygen

Container material: 304 stainless steel

Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg

Purification capacity: oxygen: 60L, water: 2Kg

Water and oxygen indicators: less than 1ppm

Circulatory system

Working gas: nitrogen, argon, helium

Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion(Larger fan flow 145m3/h, 180m3/h available)

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)

Vacuum pump

8m³/h、12m³/h

rotary vane pump: with oil mist filter, air vibration control

Valves

Main valve: DN 40 KF, electrically operated angle valve

Control valve: electromagnetic integrated valve

Transitive cabin

Bigger transitive cabin

Chamber

Size:diameter 360mm, length 600mm(Optional diameter 400mm)

Material: 304 stainless steel

Surface: inner surface wire drawing process, outer surface painting or mirror surface

Accessary

Sliding tray

Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: Analog display

Control

Operation: Automatic control

Smaller transitive cabin

Chamber

Size:diameter150mm,length300mm(Optional diameter100mm)

Material: 304 stainless steel

Surface: inner surface wire drawing process, outer surface painting or mirror surface

Accessary

Door: double door

Pressure gauge: Analog display

Control

Operation: Manual operation

Control System

Descriptions

Display system:Siemens PLC Touch Panel

Function:Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function Automatic control, cycle control, password protection

Pressure control:Control box, transition chamber pressure, cabinet working pressure +/- 10mbar can be set freely, beyond +/- 12mbar system automatic protection

Pedal:Control the box pressure

Data Memo:Automatic recording the system data

Accessary

Vacuum Pumps

Specification:8m³/h、12m³/h、16m³/h

Oxygen analyzer

Measurement range:0~1000ppm

Humidity (dew point) Instrument

Measurement range:0~500ppm
