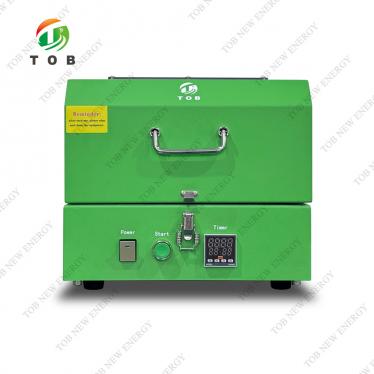

High-speed vibration ball mill machine

TOB-GZQM-80 ball milling machine is a compacthigh speed vibrating ball millfor making small quantity of powder samples at easy and fast with improved vibration design.

This TOB-2GZQM-50 ball mill is a high-efficiency small instrument for the preparation of laboratory samples (small and micro). The instrument has a three-dimensional motion of rotation and vibration during grinding, and the collision energy is higher than that of other types of ball mills, and the instrument is small in size, light in weight and high in efficiency.

Precisely measure the critical adhesion strength (peel force) of electrode coatings to current collectors with our dedicated TOB-GM-B01 Peel and Adhesion Strength Tester.

TOB-VS-25 Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.

TOB-EQ-SC-18650 Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrodes easily and quickly.

It is widely applicable to the charge and discharge test of various halides, sulfides and other solid or semi-solid under the same (non) pressure and pressure conditions.

1200℃ Mini tube furnace SPECIFICATIONS The tube furnace appearance is small, high quality resistance wire heating element, Using double-shell structure and 30 program temperature control instrumentation, Zero trigger, SCR control, furnace polycrystalline alumina fiber material, stainless steel flanges tube ends can be sealed, Installation on a stainless steel flange has a gas nozzle, valve and pressure gauge,  the vacuum can reach to 10-3 Pa,Balanced with the temperature field, the surface temperature is low,  lifting the temperature and rate, energy saving,Colleges and universities, research institutes,  industrial and mining enterprises to do high-temperature sintering atmosphere, reducing atmosphere,  CVD experiment, vacuum annealing with the ideal product. Model TOB-DSP-1200℃-S-I TOB-DSP-1200℃-S-II Power 1.5 KW 1.5 KW Furnace tube size(mm) Dia 25(OD) X700 /600mm Dia50(OD)X700/600mm Dimension 340X290X415 340X290X415 Power supply voltage 220V Phase number Single-phase Heating element High-resistance wire Control mode 1,30 sections of the program can only PID temperature regulation. 2,over-temperature protection, over-temperature protection  burnout or burnout furnace heating circuit automatically cut off ,  (when the furnace temperature exceeds 1200 degrees or thermocouple burns out,  the AC relay on the main circuit will automatically disconnect the main circuit off,  the panel lights off oN, OFF lights, limited protection EAF). 3, with 485 communication interface (when an optional software standard) 4, with power protection function, namely, electrical power and then to start the stove,  the program does not start from a starting temperature rise,  but began to rise from the furnace power outage. 5, the instrument with a temperature self-tuning features Temperature control mode Intelligent PID Control accuracy +/- 1 ℃ Trigger Zero trigger SCR 106 / 16E Germany Simon Kang Max temperature 1200 ℃ Rated temperature 1100 ℃ Heating rate ≤30 ℃/ Min (Available upon request modification) Heating length 205mm Recommended heating rate ≤15  ℃/ Min Vacuum degree (Optional) 1.General vacuum and drive gas out by:TW-1.5A 2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa 3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa  (and equipped with a resistive vacuum gauge display) Certification CE Surrounding surface temperature ≤45℃  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

TOB New Energy provides the dry electrode film suitable for supercapacitors manufacturing and research.
