Desktop High Speed Vibrating Ball Mill 80ml

TOB-GZQM-80ball milling machineis a compacthigh speed vibrating ball millfor making small quantity of powder samples at easy and fast with improved vibration design.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-GZQM-80
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

80-100ml Desktop Laboratory High Speed Vibrating Ball Mill


SPECIFICATIONS


TOB-GZQM-80 ball milling machine is a compact high speed vibrating ball mill for making small quantity of powder samples at easy and fast with improved vibration design.

It can be used for both dry and wet mill method to mill different material of solid, suspended liquid, and paste in laboratory.

It has higher impact energy created by three dimensional movement, e.g. rotation, vibration and oscillation with frequency up to 1200 cycles per minute.


Model

TOB-GZQM-80 High Speed Vibrating Ball Mill

Voltage Supply

110V/220V, 50/60HZ Customized

Power

180W

Oscillation Frequency

1,200 rounds/min

Timing Range

0 to 120 minutes for built in mechanical timer

Volume

Stainless steel tank 80ml

Maximum Feeding Capacity

1/3 of the capacity of the ball milling tank

Feeding Granularity

<1mm

Discharging Granularity

0.1 micron minimum

Overall Dimensions

405mm(L) x 365mm(W) x 260mm(H)

Net Weight

40 kg (88 lbs)

Warranty

one years limited warranty with life time support

Shipping Dimensions

26"(L) x 26"(W) x 24"(H)

Shipping Weight

62kg. (135 lbs)


Accessories List

TOB-GZQM-80 Ball Mill Machine

 1 set

Power Line

 1 Pcs

Stainless Steel Tank 80ml

 1 pcs (Can customize to 100ml)

Stainless Steel Ball

 1 set (Or other required materials ball)

Operating Manual (English)

 1 book

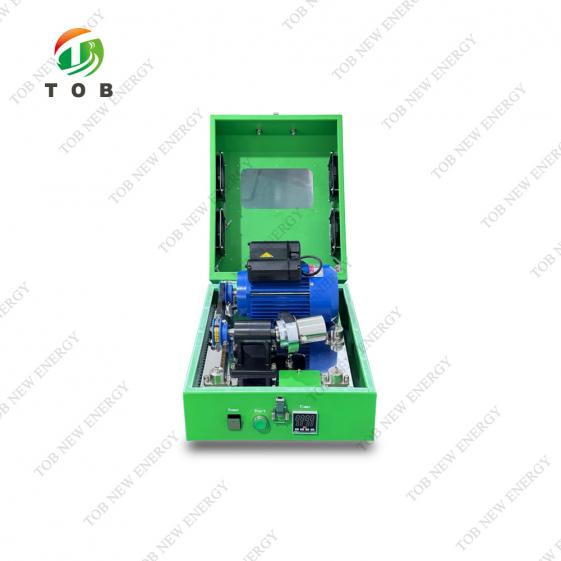

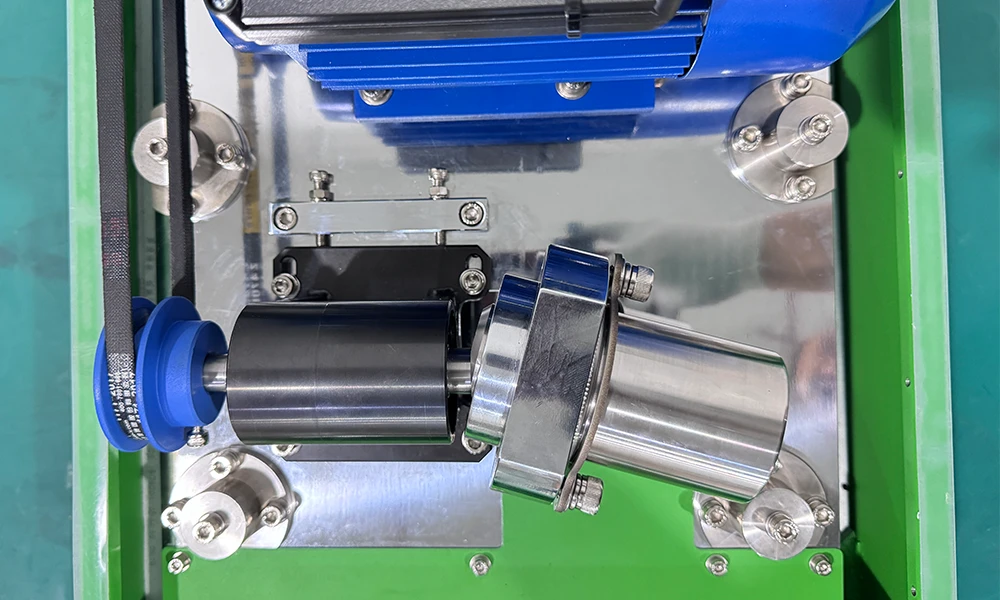

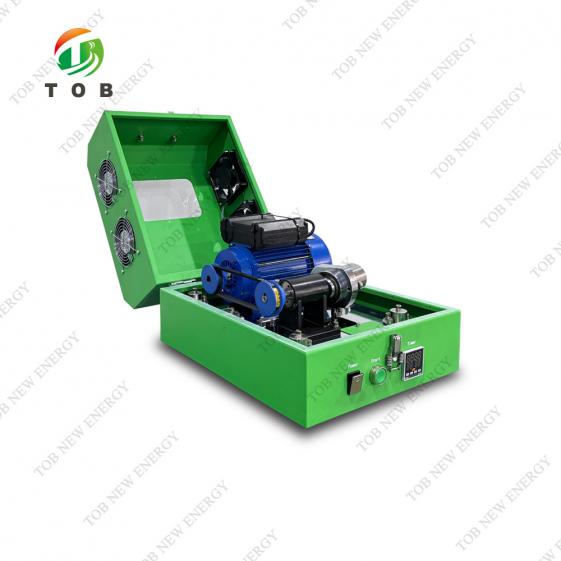

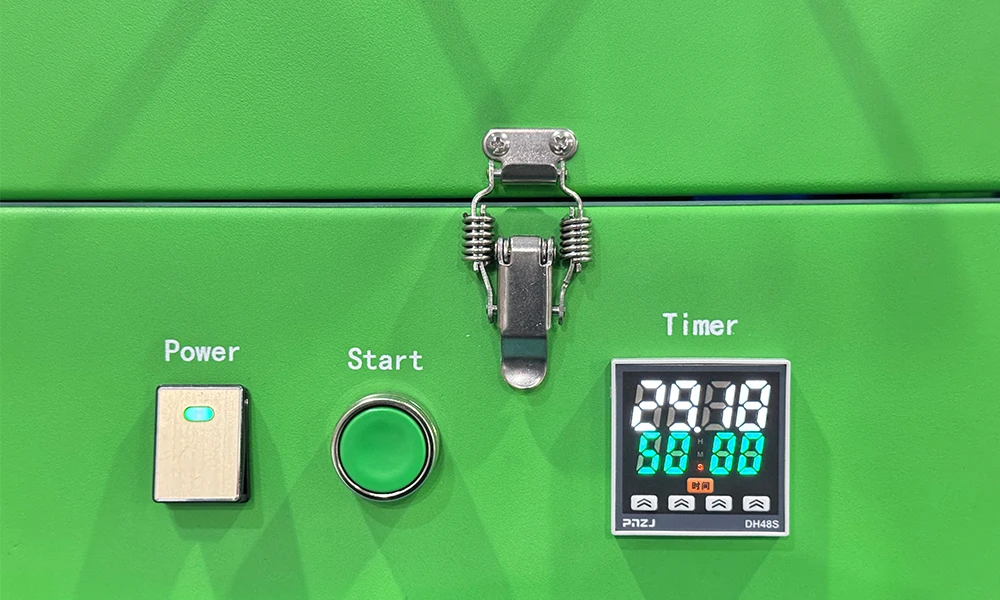

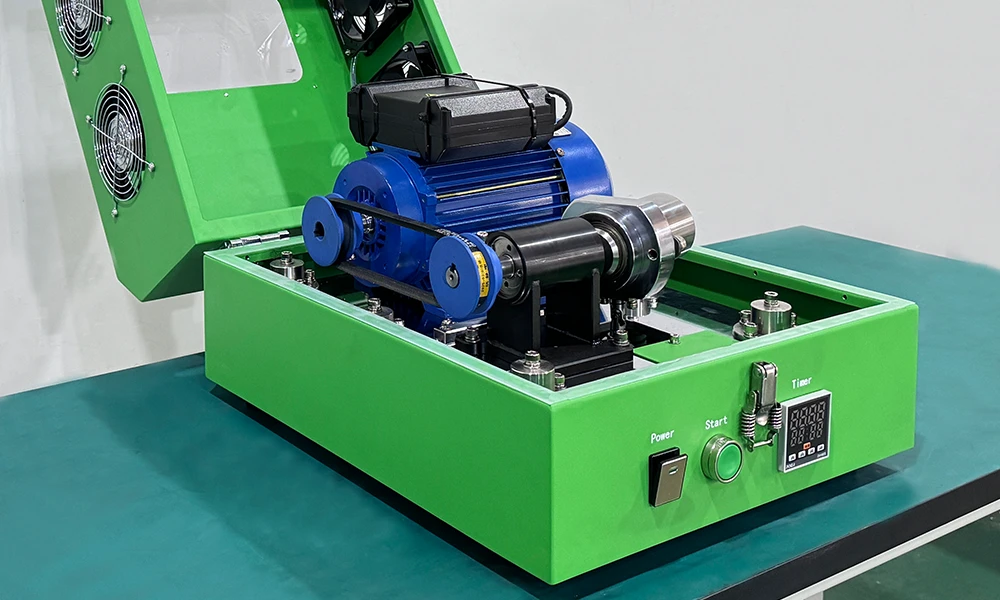

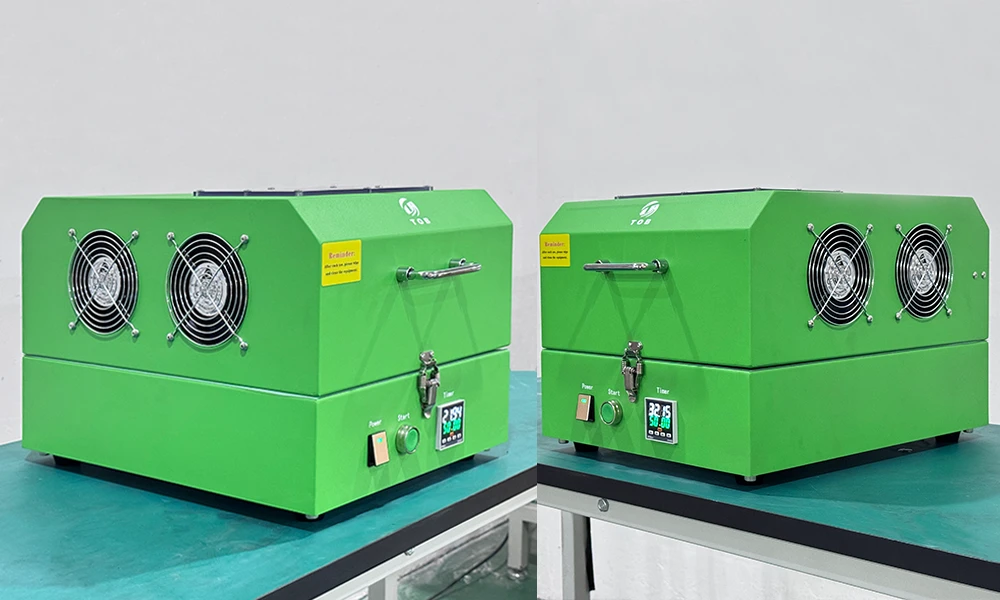

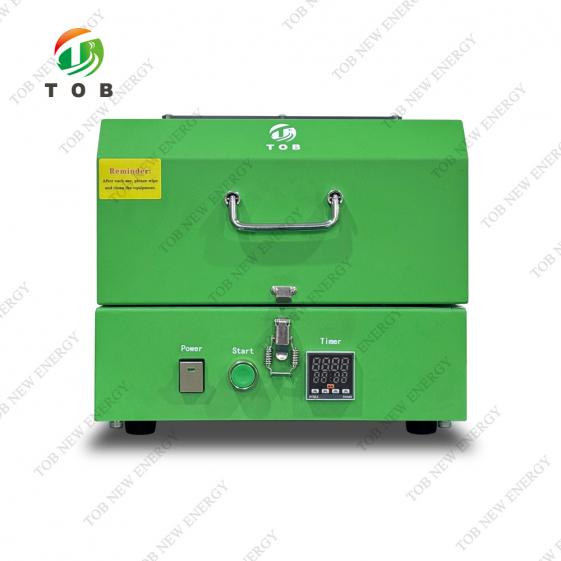

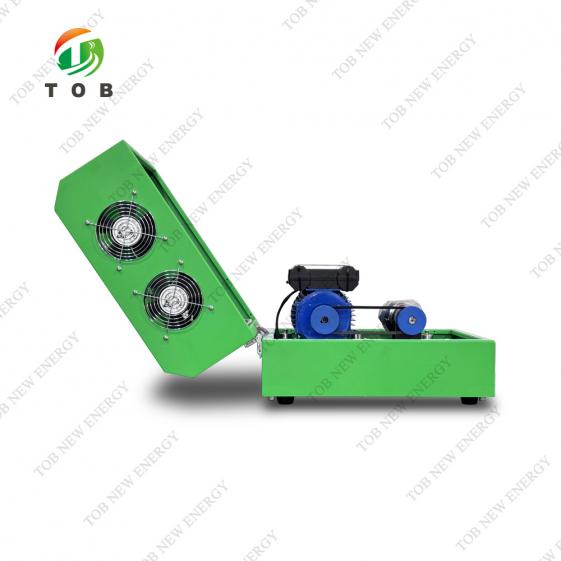

PRODUCT DISPLAY



grinding ball mill



grinding ball mill


grinding ball mill



PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
