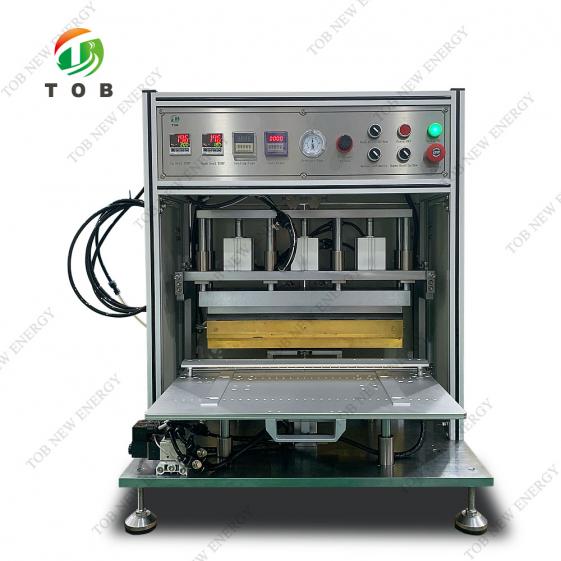

500mm pouch cell battery heat top-side sealing machine

This machine is suitable for sealing process of battery.With temperature alarm function to prevent misuse；The device has a battery tab positioning block, which can position the battery tab more accurately.

Brand:
TOB NEW ENERGY
item no.:
TOB-TSS-500
order(moq):
1set
Payment:
L/C, T/T
product origin:
China
shipping port:
Xiamen

inquiry now

Product Detail

Lithium Battery Sealing Machine Used For Pouch/Case Top and Side Heating Sealing Adopts Soft Sealing Method

SPECIFICATIONS

This machine is suitable for sealing process of battery. During operation, after the temperature reaches the set temperature, the operator places the battery on the fixture, manually pushes the fixture with the guide rail to the position of the lower sealing head, depresses the foot switch, the cylinder moves, the upper sealing head is pressed down, the timer timed, when the sealing time is up, the upper head cylinder automatically rises to complete the sealing.With temperature alarm function to prevent misuse；The device has a battery tab positioning block, which can position the battery tab more accurately.

Model	TOB-TSS-500 Simple Battery Heat Sealing Machine
Voltage	AC220V/110V
Power	2.2KW
Heating tube	800W
Compressed air requirements	0.6MP or more
Control mode	Foot switch
Maximum length of sealing battery	500mm
Sealing time	1-99 seconds can be set arbitrarily
Time accuracy	±0.1s
Sealing head working temperature range	Max 250C
Temperature control accuracy	±2C
Seal width	5.5mm, customized
Weight	About120KG
Dimension(LWH)	About 705×605×905mm
Basic equipment	Sealing cylinder The electromagnetic valve Solid state relay for heating Thermostat OMRON time relay

PRODUCT DISPLAY

Top and Side Sealing Machine
