High Energy Double Tank Vibrating Ball Mill
Brand:
TOB NEW ENERGYitem no.:
TOB-2GZQM-50order(moq):
1Payment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMEN
High Energy Double Tank Vibrating Ball Mill
SPECIFICATIONS
This TOB-2GZQM-50 ball mill is a high-efficiency small instrument for the preparation of laboratory samples (small and micro). The instrument has a three-dimensional motion of rotation and vibration during grinding, and the collision energy is higher than that of other types of ball mills, and the instrument is small in size, light in weight and high in efficiency.
It can be used for grinding, blending and mechanical alloying of materials. Double-tank high-energy ball mill can be used to ball mill or mix all kinds of solids, suspensions and pastes with different particle sizes and materials by dry and wet methods.
Working principle

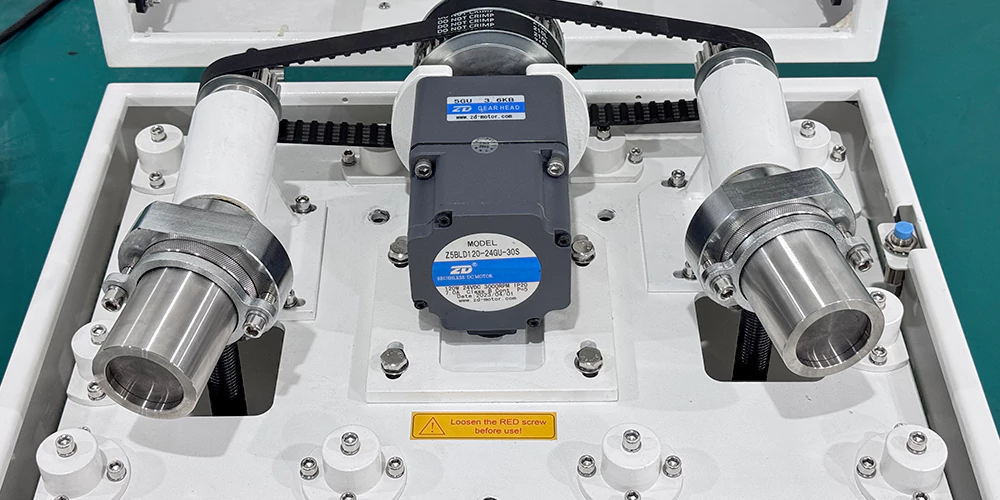

The double-tank high-energy ball mill adopts the three-dimensional ∞-shaped motion eccentric pendulum shaft structure principle, and the tank produces eccentric swing when the motor runs at high speed, which drives the whole bracket to vibrate up and down, and completes the three-dimensional coordinated grinding including high-speed swing, strong impact and vibration, and the heat generation ratio is low, and the grinding energy input is 2-3 times higher than the traditional planetary two-dimensional motion, and the high-efficiency mechanical energy greatly improves the speed and efficiency of grinding and reduces the thermal effect.
The sample is mechanically alloyed (mechanically activated) in a very short time, forming high-energy grinding of nanocrystalline or amorphous materials, and the sample powder is ground to an extremely full and uniform level.
|
Model |
TOB-2GZQM-50 |
|
Capacity |
50ml*2 |
|
Grinding tank material |
Rust steel tanks, Agate tanks, Nylon tanks, PTFE tanks, Ceramic tanks, Zirconia tanks, Stainless steel vacuum tanks. According to your needs. |
|
Max feeding volume |
1/3 of the capacity of the ball mill jar |
|
Feeding material size |
<1mm |
|
Output material size |
Up to 0.1μm |
|
Speed |
1000 rpm/ min |
|
Working mode |
three-dimensional swing |
|
Working Voltage |
AC 220V |
|
Timing time |
1~9999 min and normally open |
|
Features |

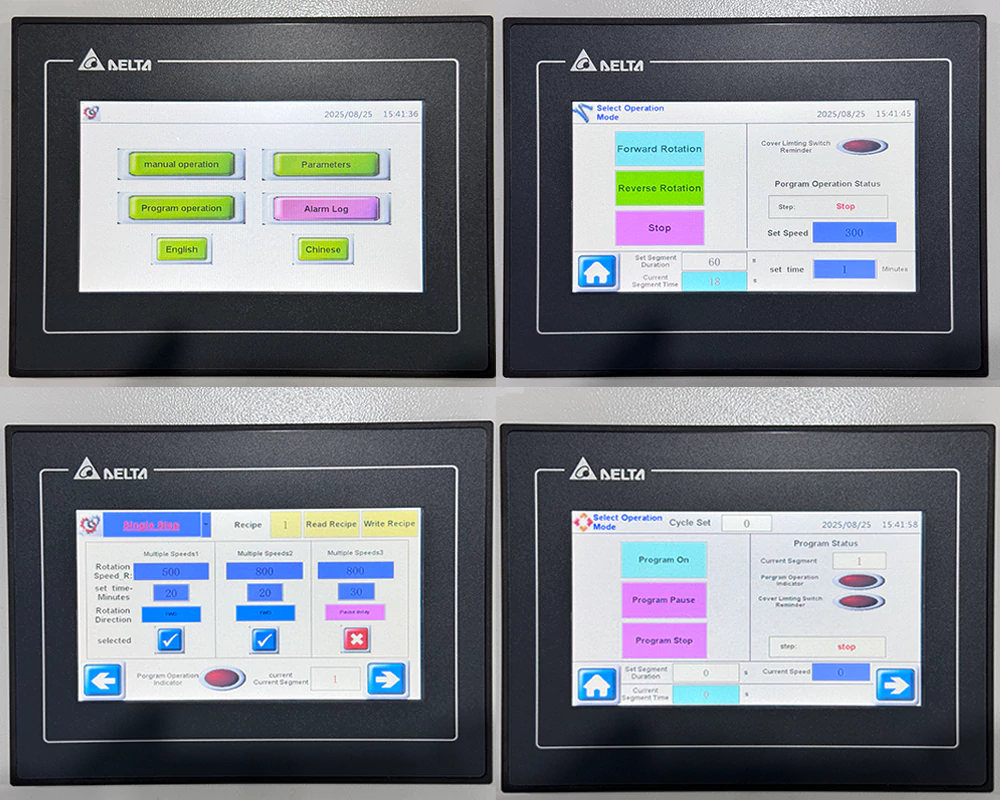

1.LCD touch screen menu display, humanized one-button operation setting, real-time data recording throughout the process, fully automatic program control, grinding time pre-set, grinding process is all automatically completed, no manual operation is required; 2.Programmable grinding time, equipped with high-efficiency three-phase rotary motor, three-dimensional ∞-shaped motion design makes ball grinding fast and efficient; 3.The air cooling system of the automatic grinding chamber enables the ball mill to be cooled in real time, and the crushing fineness can reach the micron level. |

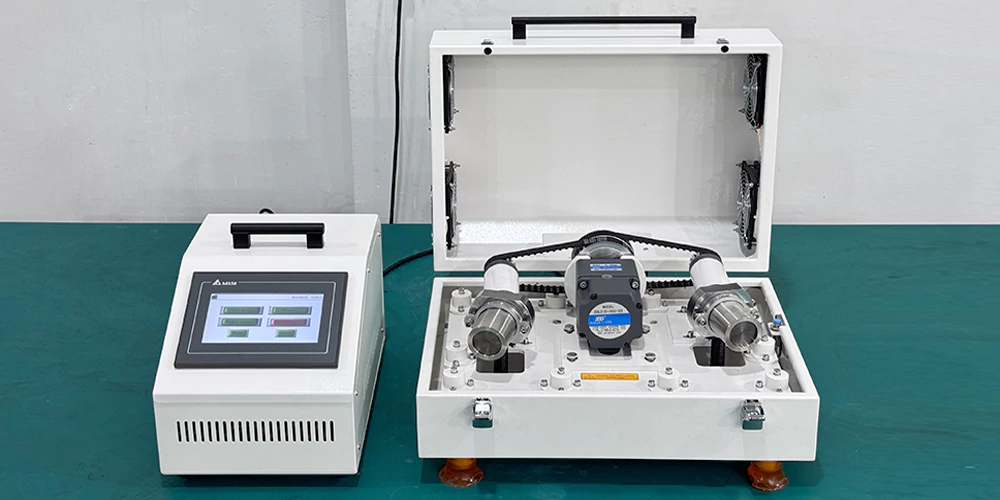

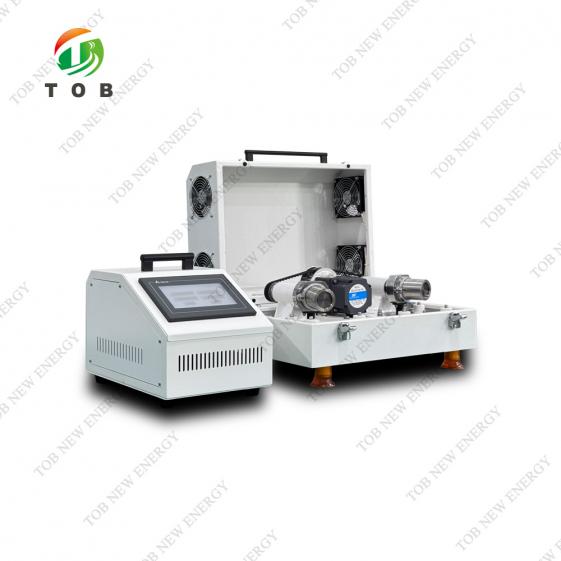

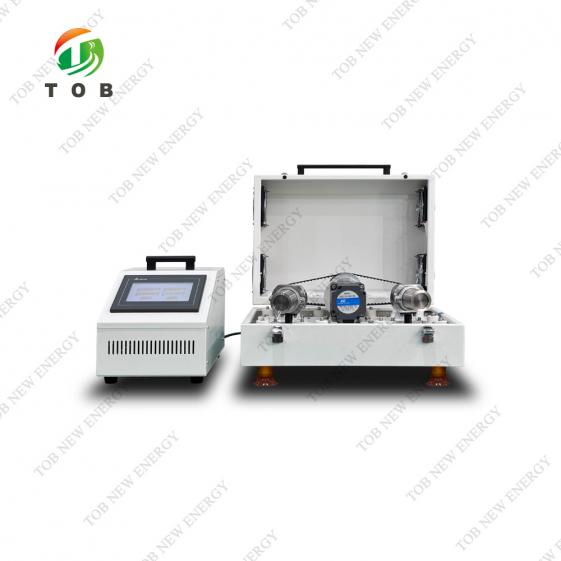

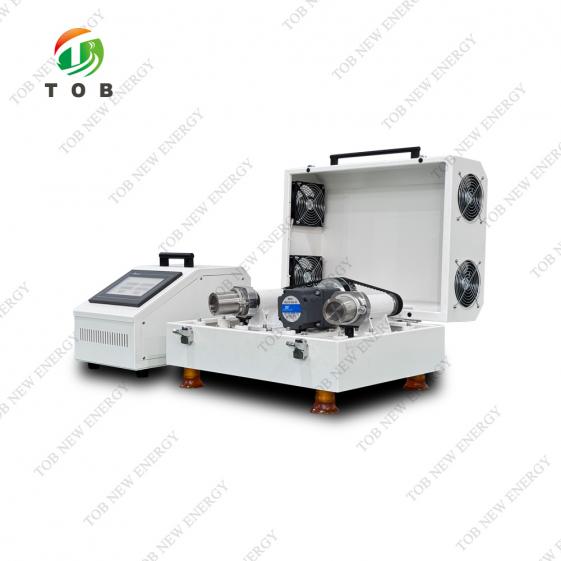

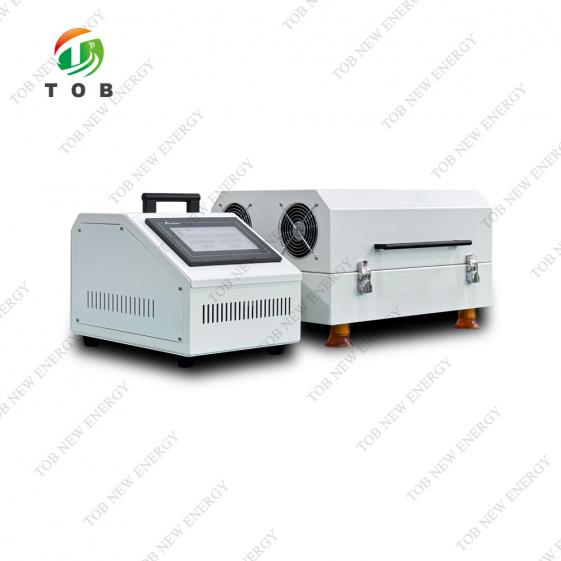

PRODUCT DISPLAY
