33135 Tabless Sodium-ion Cylindrical Battery Case Kit

33135 Tabless Sodium-ion Cylindrical Battery Case Kit | TOB-33135-C-01

Overview

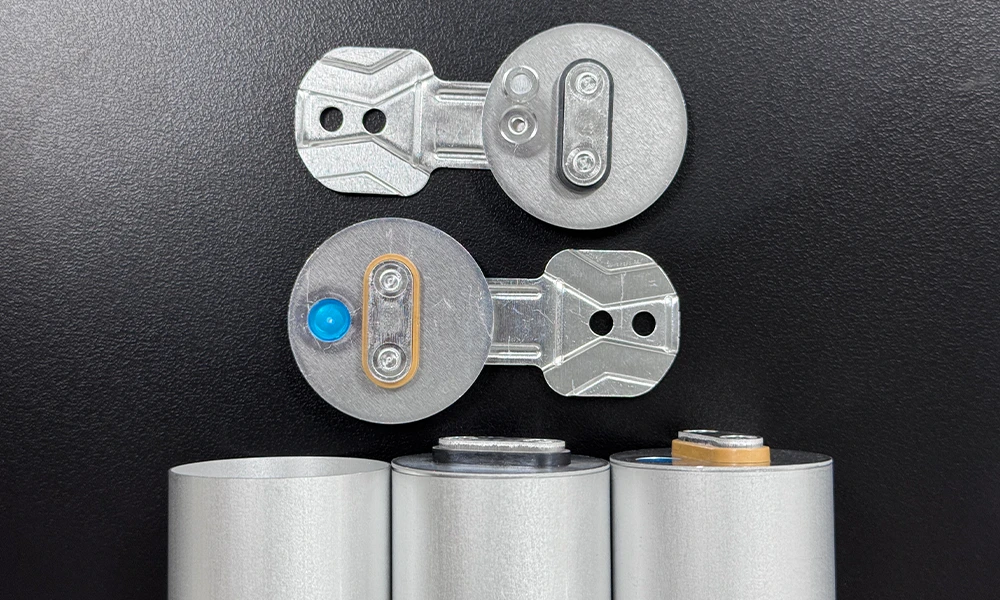

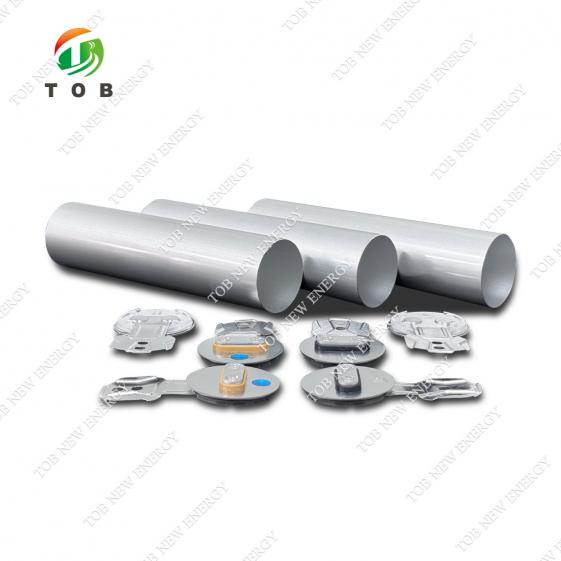

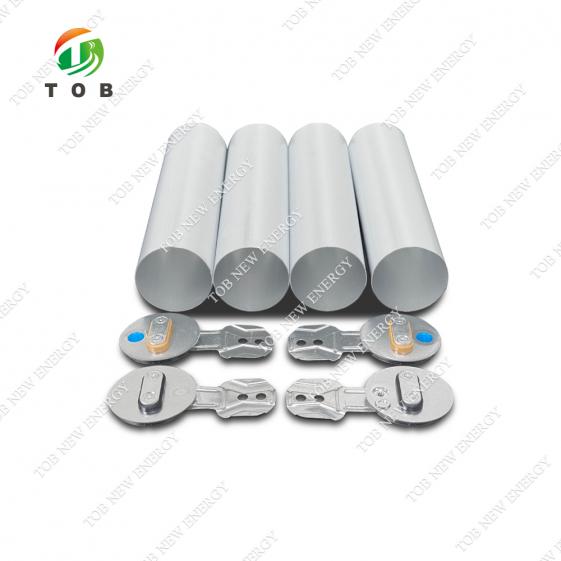

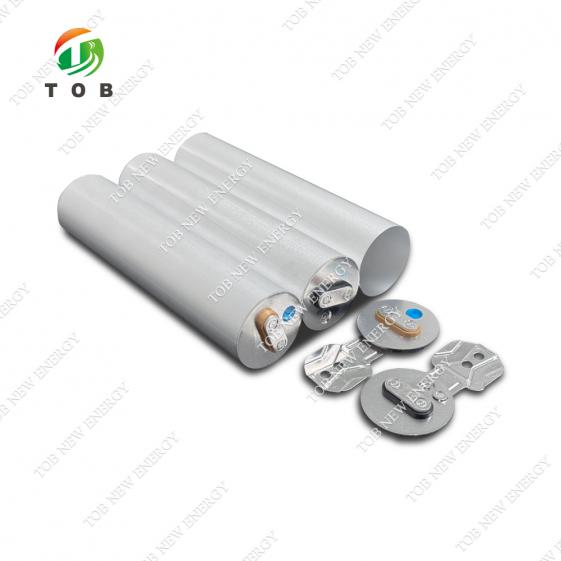

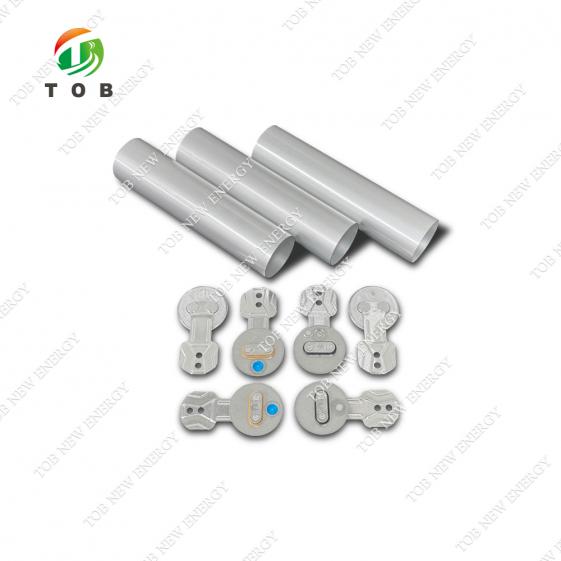

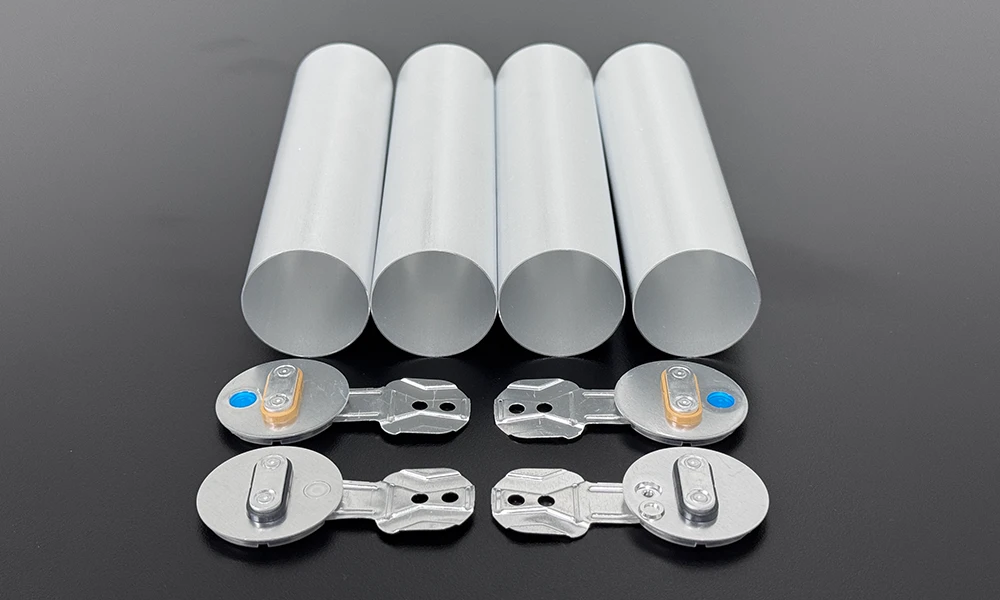

The TOB-33135-C-01 is a dedicated cylindrical case kit for 33135 sodium-ion batteries. It features an all-aluminum tabless design and consists of four precision components. The tabless structure, combined with laser welding assembly, reduces internal resistance and enhances heat dissipation, meeting the demands of high volume automated production.

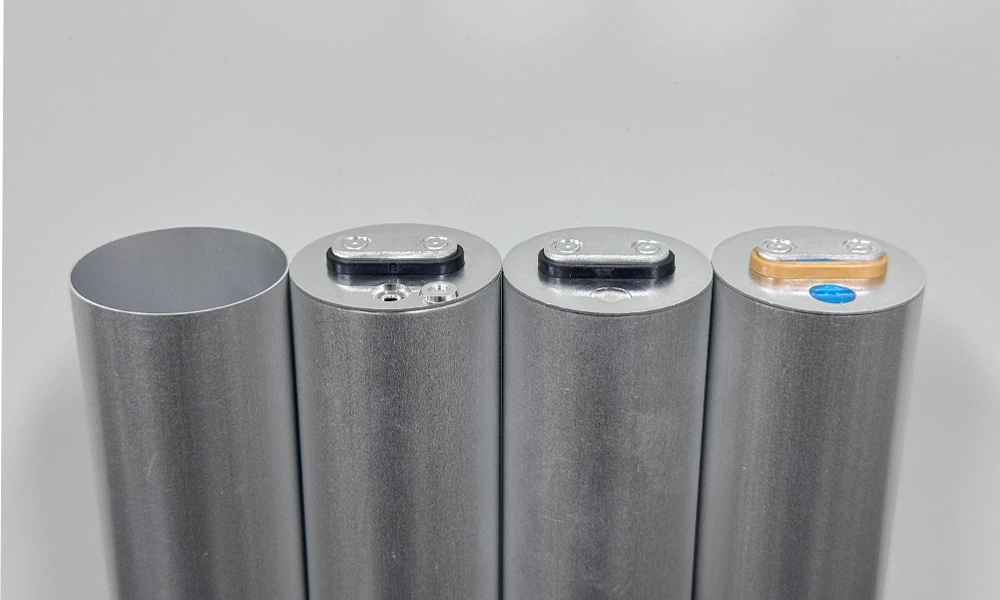

Components

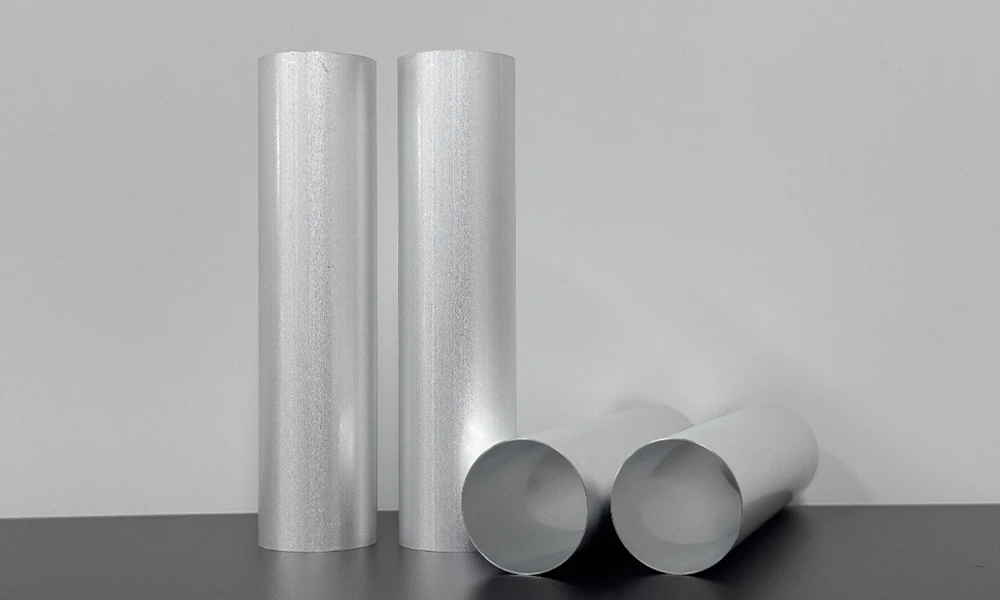

1. Cylindrical Hollow Aluminum Can

Material: Aluminum alloy

One piece formed with a smooth inner wall and precise dimensions, compatible with flattened tabless jelly rolls.

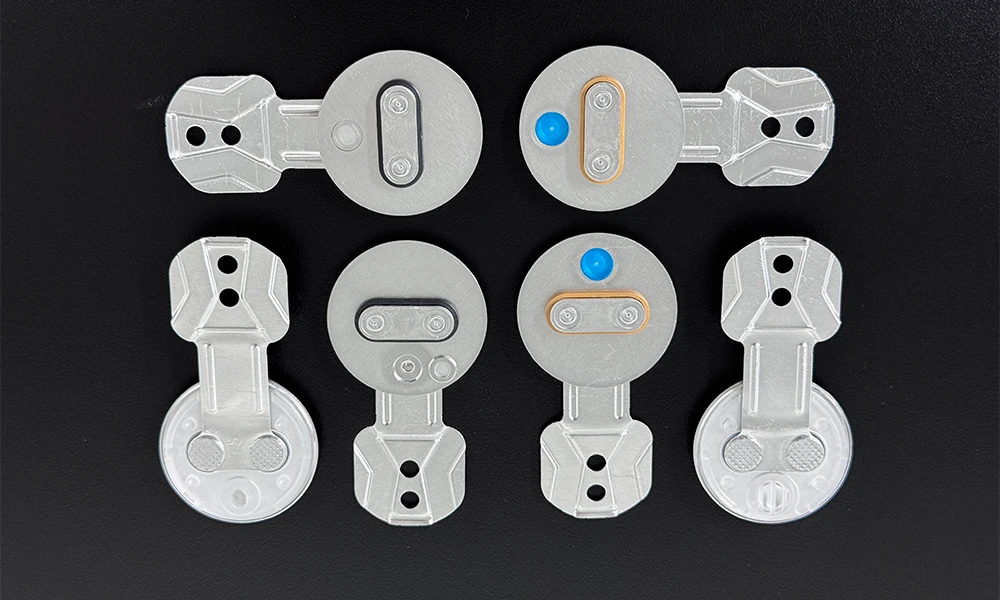

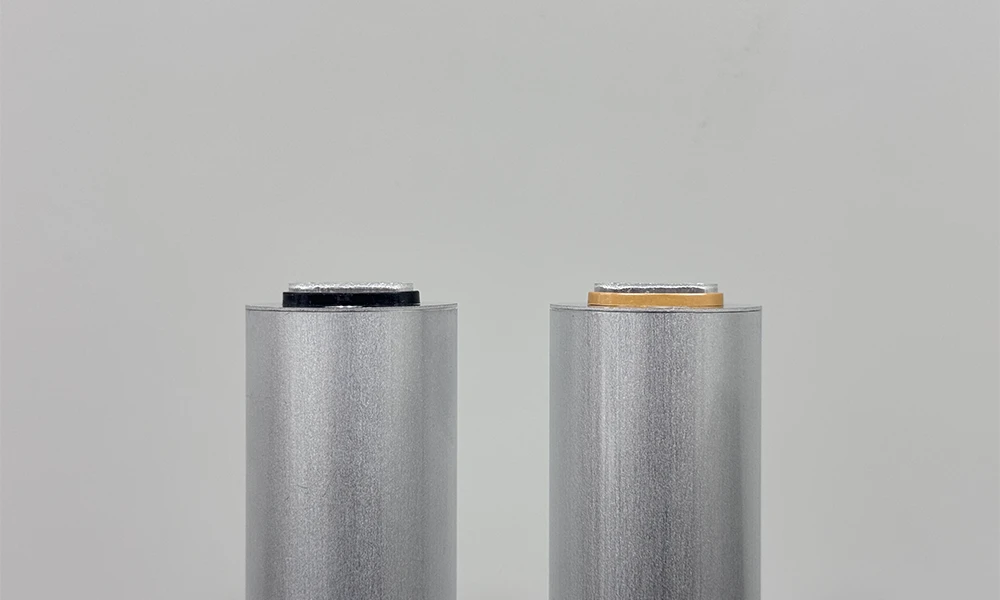

2. Positive Cap Plate (with Integrated Connection Tab)

Material: Aluminum

Assembly: After flattening the positive electrode, the connection tab is laser welded to the positive foil.

The cap plate contains the electrolyte filling hole.

3. Negative Cap Plate (with Integrated Connection Tab)

Material: Aluminum

Assembly: After flattening the negative electrode, the connection tab is laser welded to the negative foil.

4. Filling Hole Sealing Nail

Material: Aluminum

Purpose: After electrolyte filling, the nail is inserted into the hole and sealed by laser welding to ensure long term hermeticity.

Features

• Lightweight All Aluminum Construction – Reduces overall cell weight and improves energy density.
• Tabless Design – Delivers low internal resistance and superior thermal management for high rate charge/discharge.
• Integrated Connection Tabs – Simplifies assembly and enables fully automated laser welding.
• Reliable Sealing – Positive side filling hole with laser welded aluminum seal provides robust long term reliability.
• High Consistency – Precision machined components ensure tight tolerances and high packaging yield.

Applications

Suitable for mass production of 33135 cylindrical sodium-ion cells used in power tools, low speed electric vehicles, residential energy storage systems, telecom backup power, and related fields.

Specifications
