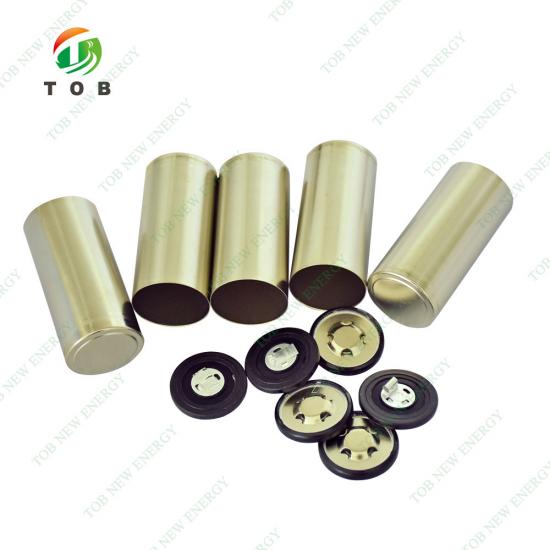

32700 Cylinder Cell Cans
Brand:
TOB NEW ENERGYitem no.:
TOB-32700-Corder(moq):
1Payment:
L/C,T/TPrice:
$80/bagproduct origin:
Chinashipping port:
XIAMEN
32700 Cylinder Cell Cans
SPECIFICATIONS
Materials: SPCC or SPCD
Surface nickel plating, nickel plating layer thickness :0.004mm
Shell size: 32.2mm(OD)*72.5mm(H)
Cap Size
|
Name |
Size（Diameter*Height*Thickness of material） |
Material |
|
Steel cap |
29.05*2.5*08 |
Steel degree carbon steel |
|
Steel ring |
22.4*1.05*0.3 |
Steel degree carbon steel |
|
Explosion-proof piece |
30*1.6*0.4 |
Al1060 |
|
Connection piece |
23.60*1.45*0.5 |
Al1060 |
|
Isolation ring |
23.7*1.05*0.3 |
High temperature material |
|
Sealing ring |
31.25*5.1*0.6 |
PP（White） |
|
Note tolerance of outer diameter and height ±0.05mm, thickness tolerance ±0.03mm |
||
