XIAMENDual-Temperature Zones 5V100mA Coin Cell Constant Temperature Tester
SPECIFICATIONS
The TOB-200L2-5V100mA-160CH Dual-Temperature Zones 5V100mA Coin Cell Constant Temperature Tester is primarily designed for temperature testing of coin cells and 3C pouch cells. This instrument is primarily targeted at research institutions, universities, and testing labs within battery manufacturing enterprises.
Dual-Temperature Zones 5V100mA Coin Cell Constant Temperature Tester |
|
Product model |
TOB-200L2-5V100mA-160CH |
Product application |
|
Application scenarios |
Constant temperature test of snap-on cells Electronics, electrical appliances, instrumentation, materials, semiconductors and other production enterprises carry out constant temperature tests on non-flammable and non-explosive items Environmental protection, agriculture and animal husbandry, aquatic research institutions and production for water analysis, bacteria, mold, microbial culture, preservation, plant cultivation, breeding test constant temperature test |
Sample restrictions |
This test equipment is prohibited: Test or storage of samples of inflammable, explosive and volatile substances Testing or storage of corrosive material samples Test or storage of samples from strong electromagnetic sources Testing and storage of radioactive material samples Testing and storage of samples of highly toxic substances Tests or storage of samples of the above substances or objects during testing or storage |
Volume, size and weight |
|
Nominal volume |
100L×2 (volume of single temperature zone 100L) |
Inner box size |
W500 mm×D500 mm×H400 mm (single temperature zone) |
External dimensions |
W600 mm×D950 mm×H1920 mm |
Weight |
About 300kg |
Performance |
|
Test environment conditions |
The ambient temperature is +25℃, the relative humidity is less than or equal to 85%, and there is no sample in the test chamber (no load) |
Test method |
GB/T 5170.2-2017 Temperature test equipment |
Temperature range |
0~60℃ |
Temperature fluctuation |
≤±0.5℃ (no load, temperature stable) |
Temperature deviation |
±2.0℃ (no load, temperature stable) |
Heating time |
25℃→60℃ ≤30 min (no load, average nonlinearity) |
Cooling time |
25℃→0℃ ≤50 min (no load, average nonlinearity) |
Structural characteristics |
|
Insulation envelope structure |
Exterior wall material: high quality cold rolled steel plate, surface spray treatment Inner wall material: stainless steel plate SUS304 Insulation material of the box: polyurethane foam (insulation thickness 50mm) |
Air conditioning channel |
Axial flow fan, heater, evaporator |
Standard configuration of test chamber |
Observation window: multi-layer hollow electric heating film heating anti-fog observation window (located on the door) Lead hole (with soft rubber plug): φ50mm /2 (located at the rear of the box) Wheels: 4 (with brakes) Cell tray: 2 layers of electric insulation cell tray, load-bearing (evenly distributed): 10kg/layer Lighting: LED lighting |
Control panel |
Touch control button |
Air conditioning unit |
Stainless steel heating tube Heater control mode: contactless periodic pulse width modulation, SSR (solid state relay) |
Refrigeration system |
|
Refrigeration compressor |
Fully enclosed piston compressor |
Cooling mode |
Air-cooled |
Throttle device |
Capillary |
Refrigerant |
R134a |
Welding process |
Nitrogen-shielded welding |
Electrical control system |
|
Controller |
LED digital display + touch key controller |
Setting method |
Touch-key type |
Control mode |
The forced circulating ventilation and temperature balancing method. The control system controls the output of the heater through PID automatic calculation according to the set temperature value, so as to achieve dynamic balance |
Communication mode |
Ethernet standard interface |
Temperature control module |
Independent research and development (tested for high and low temperature impact, vibration and EMC related reliability performance) |
Cell testing equipment and test interconnection |
|
Testing equipment |
5PCS BT-4032Q-5V100mA-HWX |
Control unit |
1 BT-4002-ZWJPLUS-HWX |
Network switch |
1 |
Safety protection device |
|
Test box |
Leakage protection, short circuit protection and abnormal operation of circulating fan |
Other configurations |
|
Power cable |
(One single-phase + protective earth wire) cable (the specific specification is selected according to the contract requirements) |
Total power leakage circuit breaker |
Single phase + protective earth wire |
Transportation (the test chamber is integral and transported as a whole) |
|
Size |
Maximum transport size (excluding packaging): "see 4.3 External dimensions" |
Conditions of use: The user shall guarantee the following conditions (the installation of power supply lines for the equipment shall be the responsibility of the user) |
|
Installation site |
The ground is flat, and the flatness is less than 5mm/2m well-ventilated There is no strong vibration around the equipment There is no strong electromagnetic field around the equipment There is no flammable, explosive, corrosive substances and dust around the equipment There should be appropriate space for use and maintenance around the equipment. There should be space for the door of the equipment to open and close normally at will, and there should be no other objects in front of the door of the equipment |
Environmental conditions |
Temperature: 5℃~35℃; Relative humidity: less than or equal to 85%; Air pressure: 86kPa~106kPa |
Power supply conditions
|
AC (220±22) V (50±0.5) Hz single phase + protective earth wire The grounding resistance of the protective earth wire is less than 4Ω Power supply: The user is required to configure the corresponding capacity of air or power switch for the equipment at the installation site, and this switch must be independently supplied for the use of the equipment Power supply capacity: 2.5kW Maximum current: 14A |
Others |
Opening the door of the test chamber during the test will cause temperature fluctuations in the chamber; if the door is opened repeatedly or kept open for a long time during the test, or if the test sample emits moisture, it may cause frost or ice on the heat exchanger of the refrigeration system and make it unable to work normally |
Cell specifications and placement method |
|
Cell specification |
Coin cell 5V100mA160CH |
Cell placement method |
Four layers are placed, each layer 40CH(channel) |

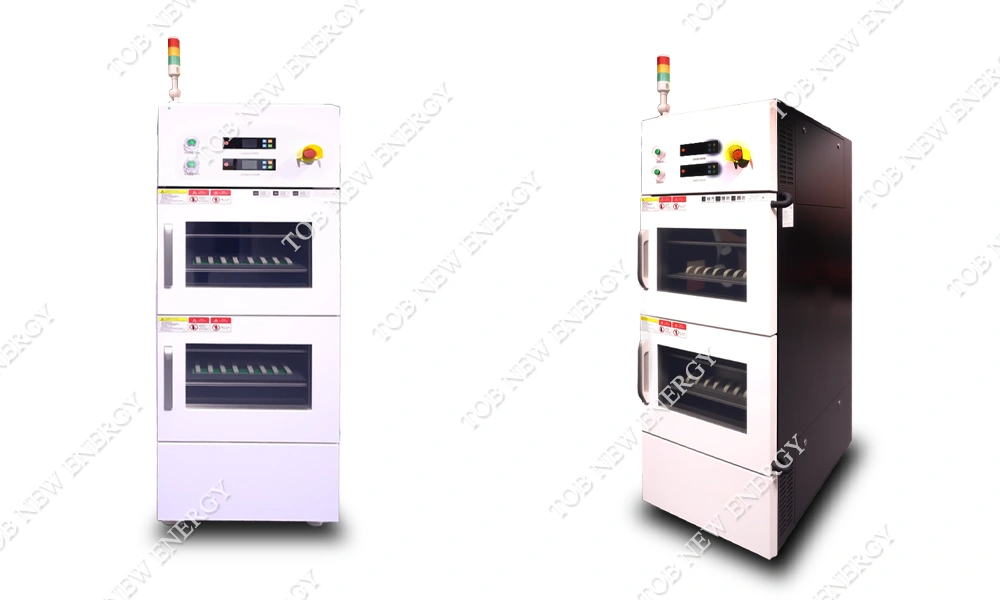

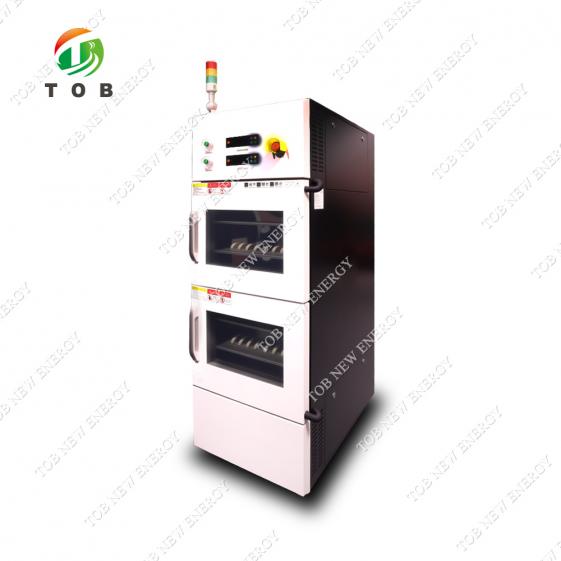

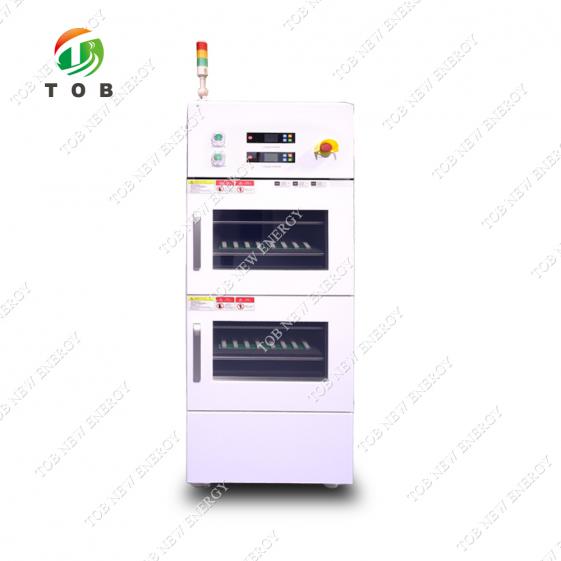

Product Display
