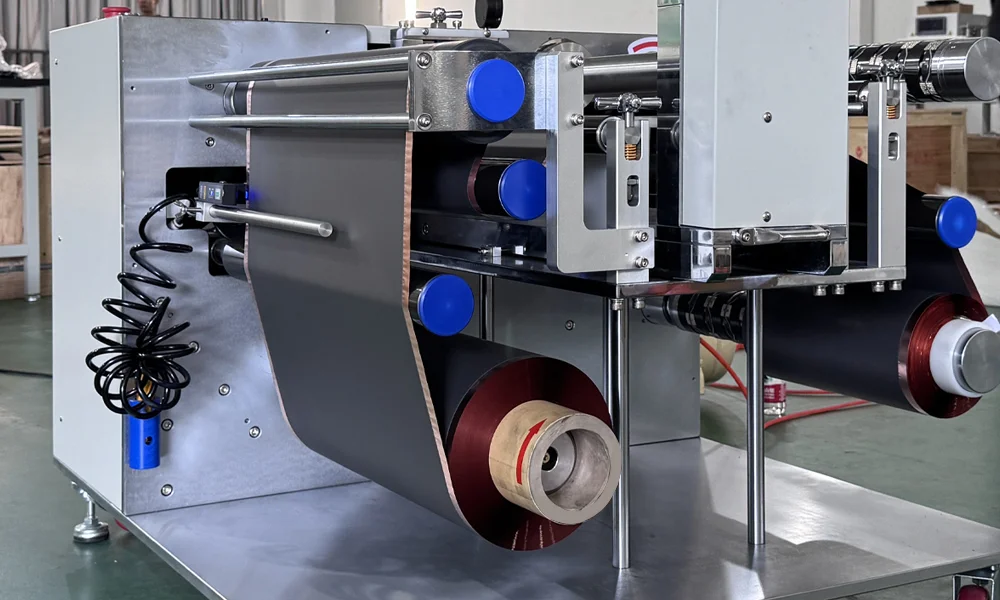

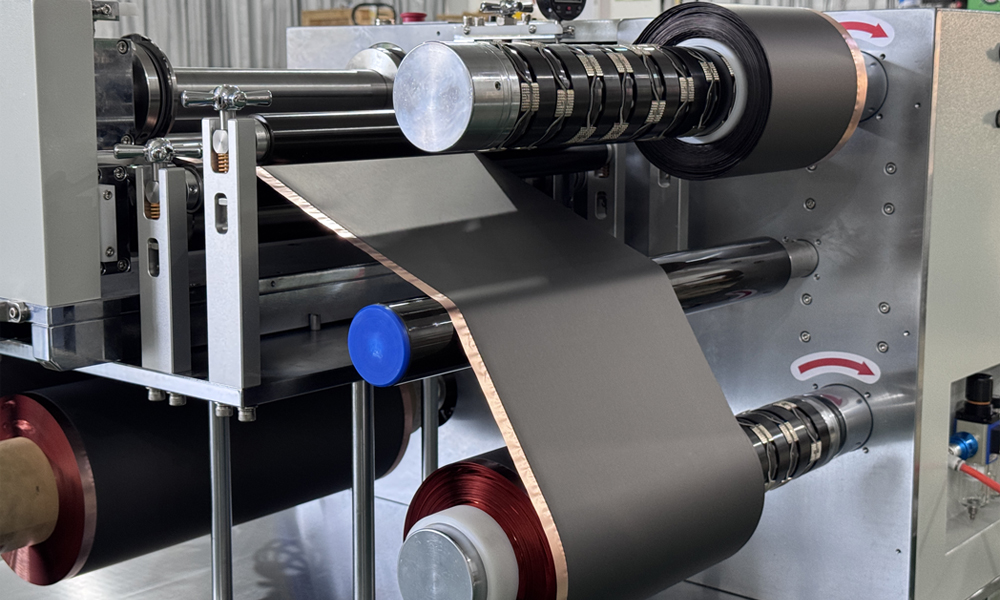

Roll to Roll Battery Electrode Slitting Machine

Roll to Roll Battery Electrode Slitting Machine

SPECIFICATIONS

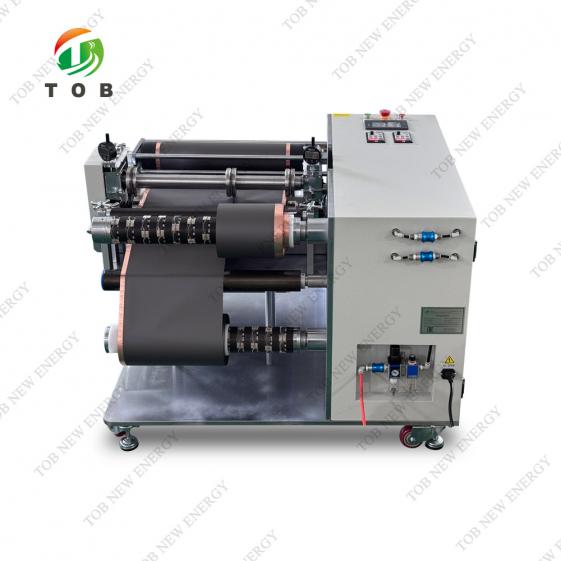

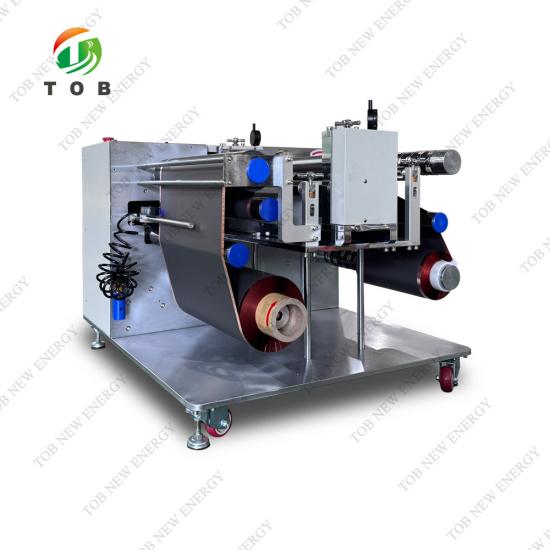

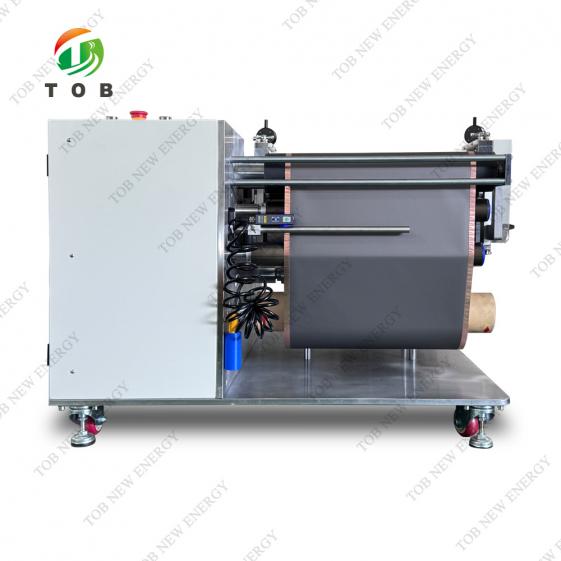

The TOB-LFT-500 Roll to Roll Battery Electrode Slitting Machine is equipped with a precision knife holder, which can achieve high precision foil slitting. It is widely used in lithium battery, metal foil, optical film and other functional film industries.

Main feature：

● Correction system for feeding is set to ensure the neat coils.

● Ultrafine alloy blade, good cutting quality and long service life.

● High slitting width precision, no burrs, waves, or indentations in the finished product.

● The amount for the feed knife is adjustable, and the ratio of the knife speed to the linear speed of the material is adjustable.

● By adjusting the inlet and outlet angles, it can adapt to the cutting of different materials and thickness values.

● Single stand structure, independent knife holder, equipped with dust removal device.

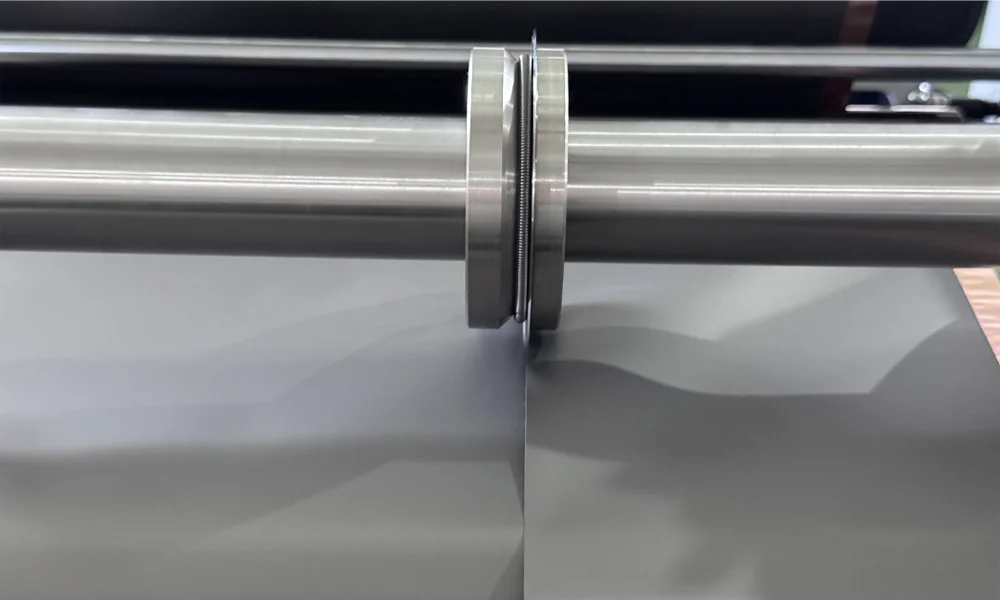

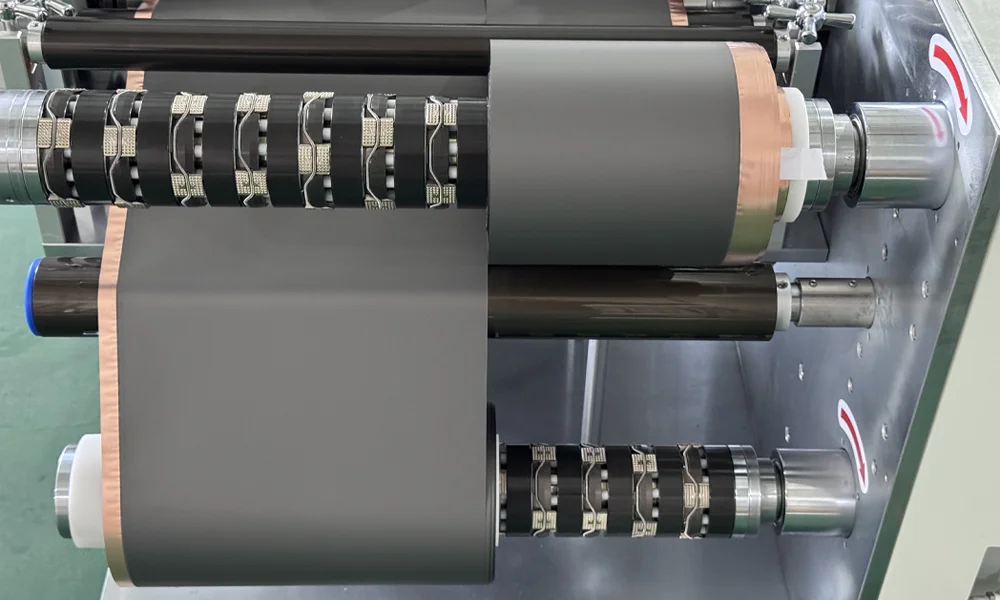

● Upper and lower circular knife structure, slitting width can be adjusted by changing the sleeve.

● Adjustable within 50 N of upper and lower shafts.

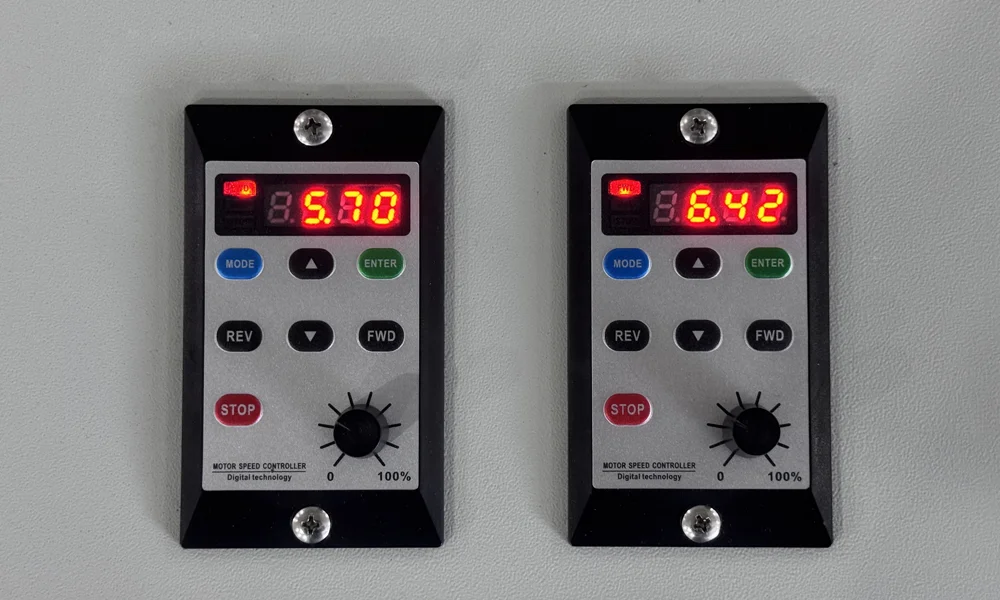

● PLC control, HMI operation, easy to operate.

Maintenance methods

● Wipe the upper and lower cutters frequently to keep them clean.

● Lubricate the moving parts of the linear slide group to keep the movement smooth.

● If the device is not used for a long time, wipe the surface of the upper and lower cutters clean, and the surface should be sprayed with rust- proof oil to protect it.

● Regularly inspect the screws, nuts, pins and other fasteners in various parts of the machine to prevent loosening and prevent machine quality accidents and personal accidents.

Precautions

● The upper and lower cutters do not collide with hard objects to avoid damage to the hob.

● It is forbidden to use this equipment to cut hard metal to avoid damage to the blade and affect the effect of the cutting product.

● When the equipment is running, do not reach into the cutter working area.

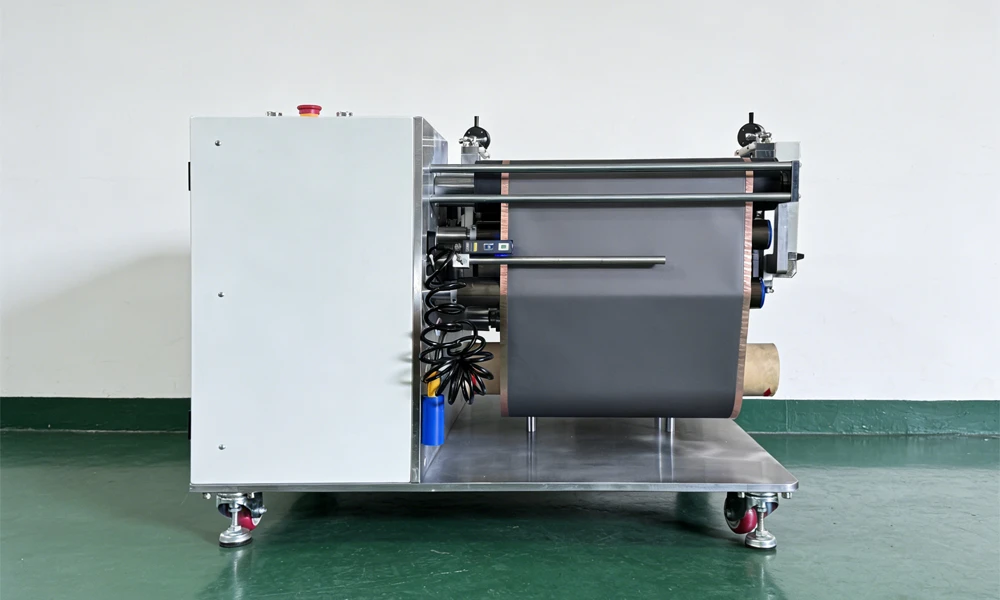

PRODUCT DISPLAY
