Small Lab Scale Mini Spray Dryer

Small Type Lab Scale Mini Spray Dryer Machine

SPECIFICATIONS

The experimental spray dryer (small spray dryer) has a compact design and can be placed independently in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, two operating modes, fully automatic or manual monitoring, can be used to facilitate operation and monitoring of the experimental process. It is currently a spray dryer with the smallest volume, the least noise and excellent drying effect.

characteristics:
1. Original imported nozzle: high efficiency.
2. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle frequency.
3. Fully automatic control: one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; just press the stop button when shutting down, the machine is automatically safe Shut down.
4. Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, and the color touch screen is dynamically displayed throughout the experiment.
5. Nozzle cleaner (through needle): when the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be adjusted automatically.
6. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the equipment will not burn out due to misoperation (such as forced shutdown of the fan).
7. The spraying, drying and collecting system is made of transparent high-quality high-borosilicate heat-resistant glass material, so that the drying process can be carried out in a pollution-free environment.
8. Built-in imported oil-free air compressor,：the particle diameter of the powder spray is normally distributed, the fluidity is very good, the noise is very low, less than 60db.
9. Real-time control PID constant temperature control technology: make the temperature control in the full temperature zone accurate, and the heating temperature control accuracy is ±1℃.
10. Air inlet filter: keep the sample pure (for benzene, methanol, ethanol and other materials, it is safer to choose to add a nitrogen device)
11. Feed peristaltic pump adjustment: the feed amount can be adjusted, and the minimum sample volume can reach 50ml.
12. The particle size of the finished dry powder after drying is relatively uniform, and more than 98% of the dry powder is in the same particle size range.
13. Nozzle cleaner (through needle): The sticky material will be automatically cleared when the nozzle is blocked, and the frequency of the through needle can be adjusted automatically.
14. Innovative tower wall purge device: higher material recovery rate.

Technical Parameters:

1.Quality standards: export standards
2.Inlet air temperature control: 30 ℃ ~ 300℃; Outlet air temperature control: 30 ℃ ~ 140℃.
3.Water evaporation: 1000mL/H ~ 2000ml/h.
4.The maximum feed volume: the maximum is 1500ml/h (adjustable); the minimum feed volume: 50mL
5.Feeding method: peristaltic pump adjustment.
6.Temperature control accuracy: ±1℃, adopt imported temperature control system.
7.Average drying time: 1.0～1.5S.
8.Fan: maximum air volume 0-330m3/h; maximum air pressure 1.1KPa.
9.Equipped with 1 air inlet filter.
10.Compressor: Imported oil-free air compressor with good fluidity and low noise. 0.2KW, maximum gas production 4.2m3/h, working pressure 2-5bar.
11.Jet (through needle): variable firing pin frequency (built-in 2.3bar compressed air supply).
12.Nozzle diameter: 0.5mm/0.7mm/0.75mm/1.0mm/1.5mm/2.0mm optional, and can be customized according to requirements.  If no requirements, will supply the 0.5mm model
13.Shutdown protection function: just press the stop button during shutdown, the machine will stop running immediately except for the fan, to ensure that the device will not burn out due to misoperation (forced shutdown of the fan).
14.Total power: 4KW/220V (customized according to different country voltage requirements).
15.Dimensions: 1300mm (height) × 650mm (length) × 550mm (width)

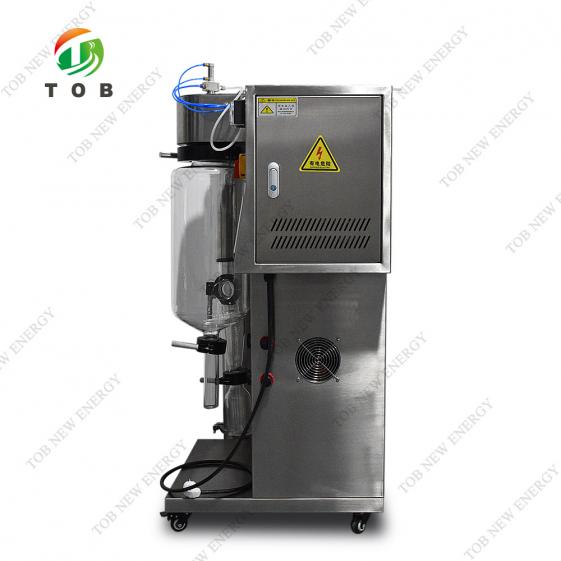

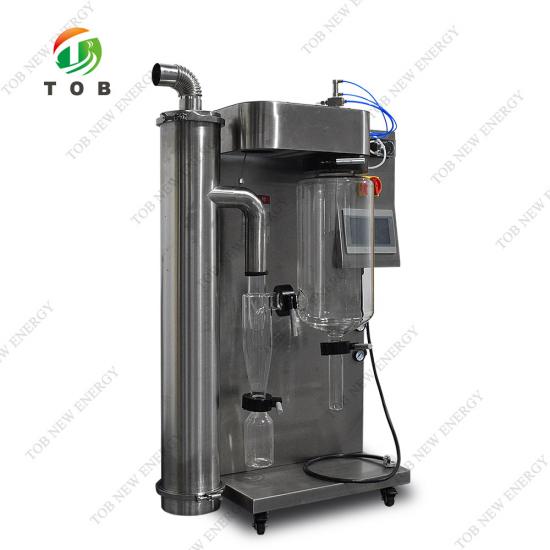

PRODUCT DISPLAY
