Three Electrode Three Electrode

High Purity Titanium Three Electrode Battery Test Cell

This TOB-SL3E2-14 three-electrode battery test cell is used for water-based batteries, zinc batteries or highly corrosive environments. Its inner diameter is 14mm (can be customized).

  • Brand:

    TOB NEW ENERGY

  • item no.:

    TOB-SL3E2-14

  • order(moq):

    1 set

  • Payment:

    L/C, T/T

  • product origin:

    China

  • shipping port:

    XIAMEN
inquiry now
Product Detail

High Purity Titanium Three Electrode Battery Test Cell


SPECIFICATIONS

Model TOB-SL3E2-14
Inner diameter 14mm (customizable)
Length 116mm
Height 55mm
Teflon intermediate 76mm
Material High purity titanium

Used in water-based batteries, zinc batteries or highly corrosive environments.

Use it as 2 electrodes or 3 electrodes. The 2 electrodes are sealed with a sealing column. When used as a 3-electrode, replace the seal with a 6mm direct reference electrode and adjust the height before use.


Product Display

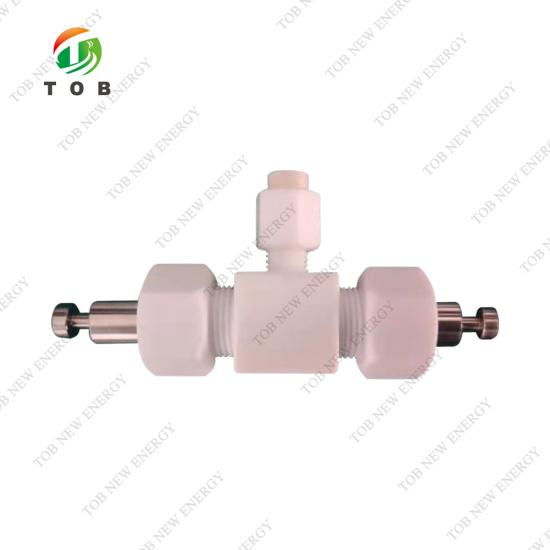

Titanium Three Electrode Battery Test Cell

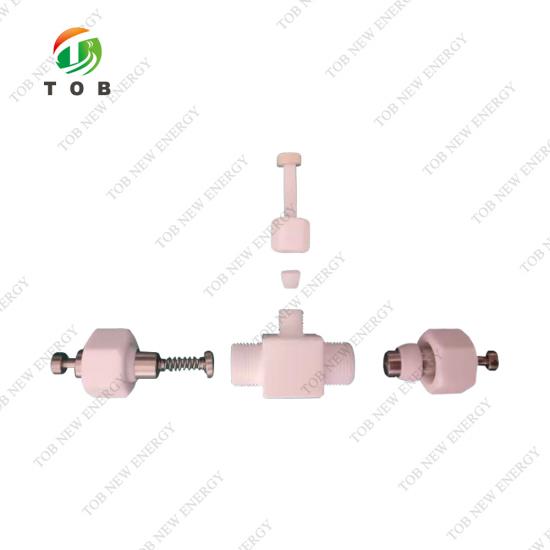

Titanium Three Electrode Battery Test Cell



12mm stainless steel 316  Three Electrode Battery Test Cell
