8 Channels Split Coin Cell

TOB-HSC-8 is an 8 channel split coin cell kit designed for high-throughput R&D battery material testing and screening.

  • item no.:

    TOB-HSC-8
  • order(moq):

    1 set
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

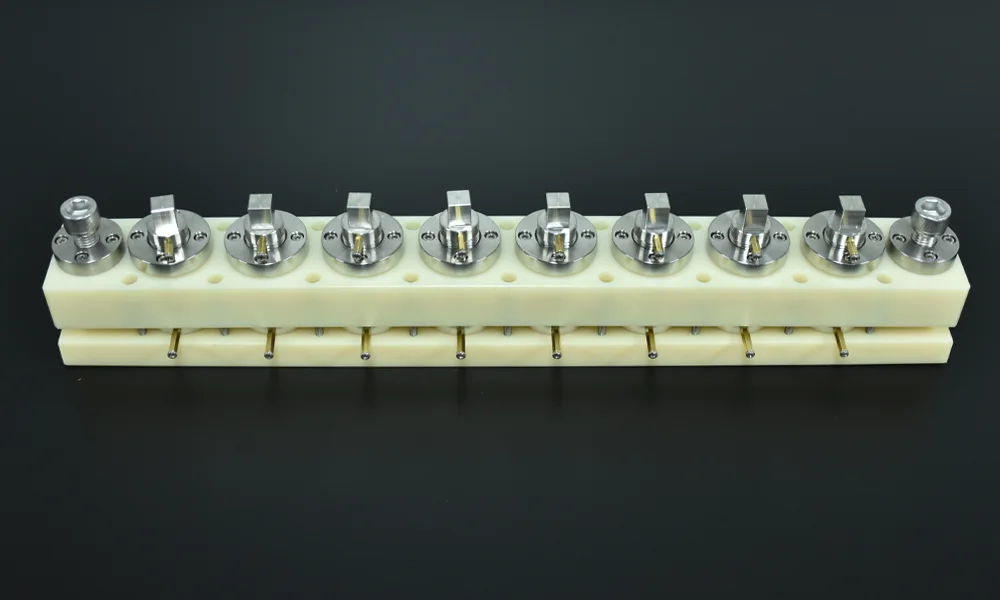

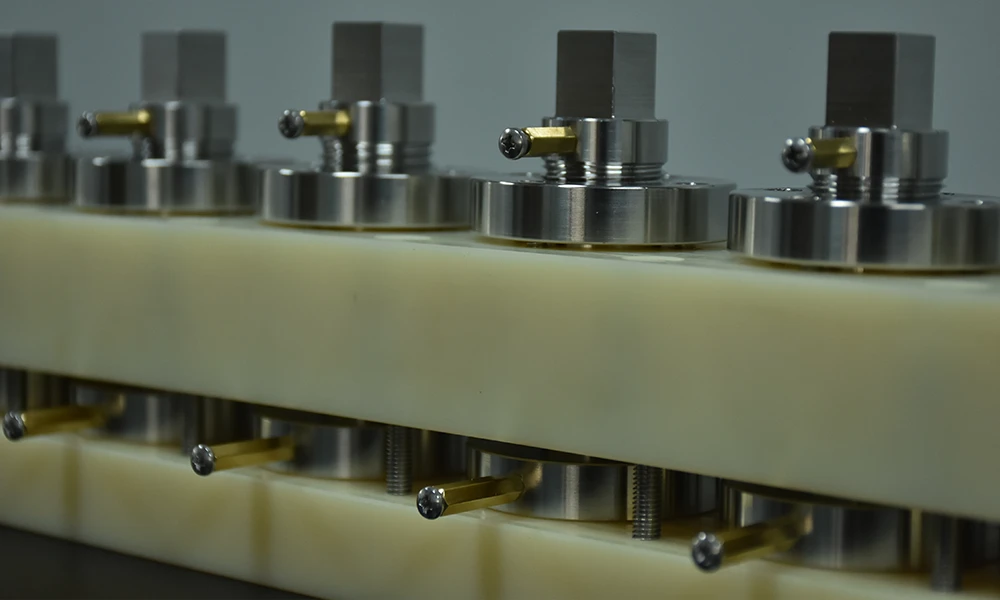

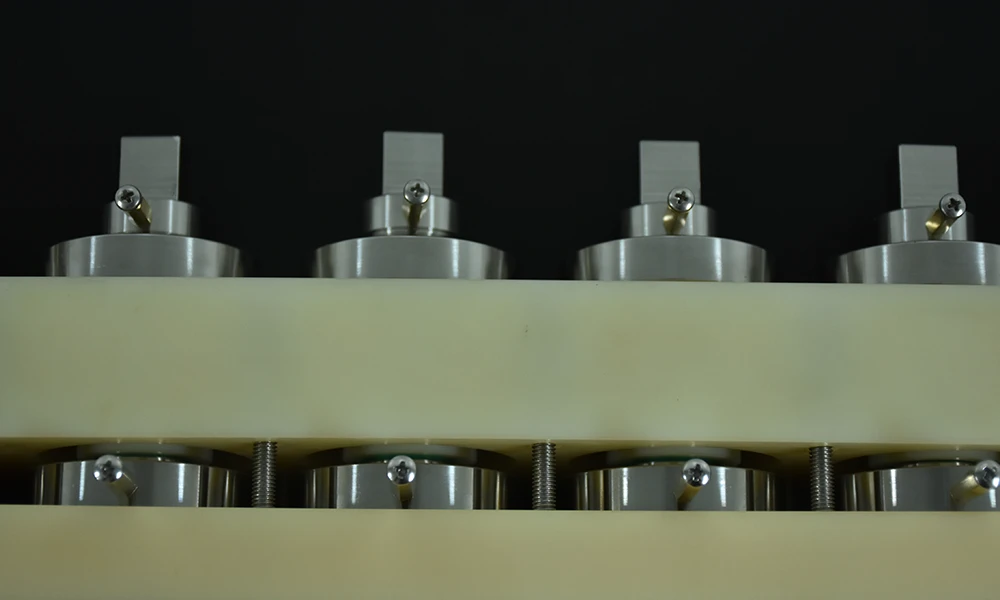

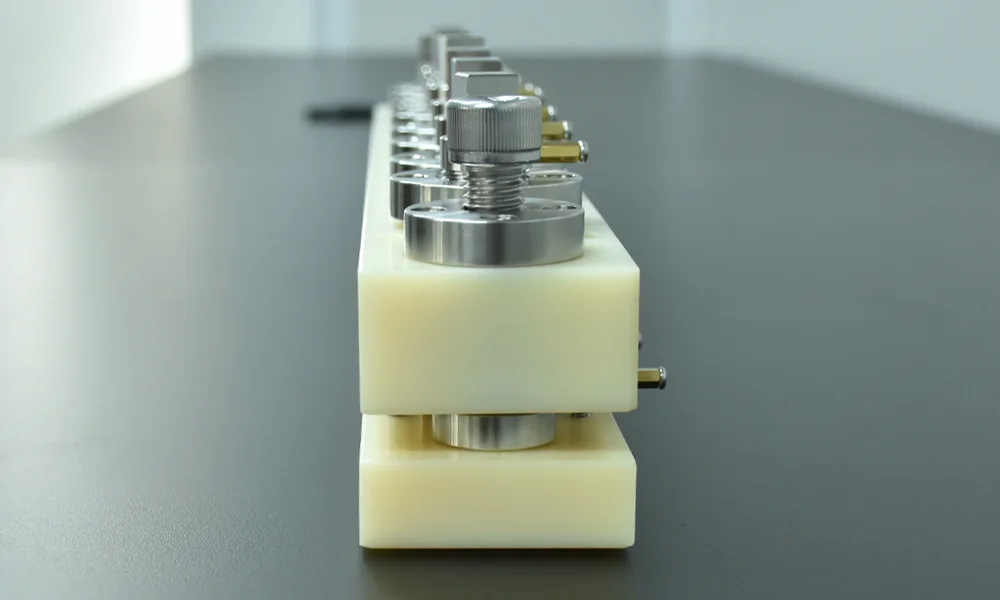

8 Channel Split Coin Cell Kit for High-Throughput Testing of Battery Materials


SPECIFICATIONS

TOB-HSC-8 is an 8 channel split coin cell kit designed for high-throughput R&D battery material testing and screening. With this testing kit, 8 split coin cells can be assembled independently with varying battery materials and tested parallelly by a multi-channel battery analyzer for comparison and time saving. This split coin cell kit can be easily tightened or de-assembled by a wrench. No coin cell crimper is needed, saving user's time and cost.


Structure & Features

8 separated split coin cells can be assembled independently and tested parallelly for high-throughput R&D battery material testing and screening

Work greatly with a multi-channel battery analyzer for battery material comparison and time-saving

Stainless steel bottom contact plate and top plunger ensure good electrical conductivity

PTFE made sealing gaskets and Nylon body for good resistance to electrolyte corrosion

The air-tight design ensures zero electrolyte leakage

Electrode Diameter

Standard 20 mm ID

(5, 10, 12, and 15 mm ID versions are available upon request)

Working Temperature

Max. 100 ºC

Testing Station (Optional)

To perform a parallel test for multiple cells, simply align the kit parallel with an TOB battery tester and have the cells connected to the corresponding channels for cycling life,  coulombic efficiency, and other measurements

Application Notes

Recommend to use a torque wrench when tightening the top plunger for good electrical contact and repeatability

PRODUCT DISPLAY

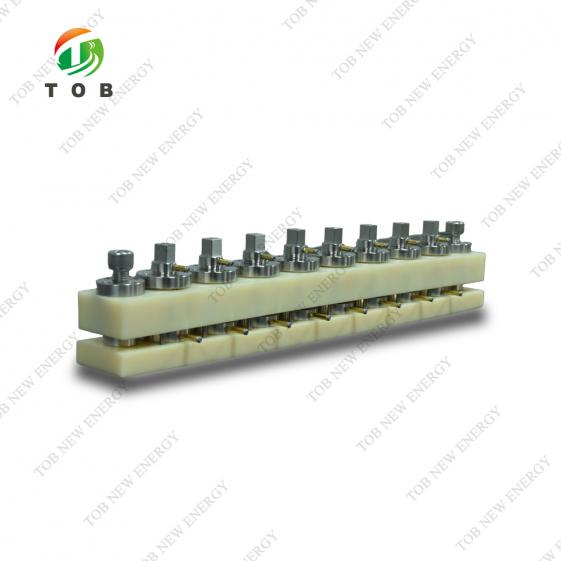

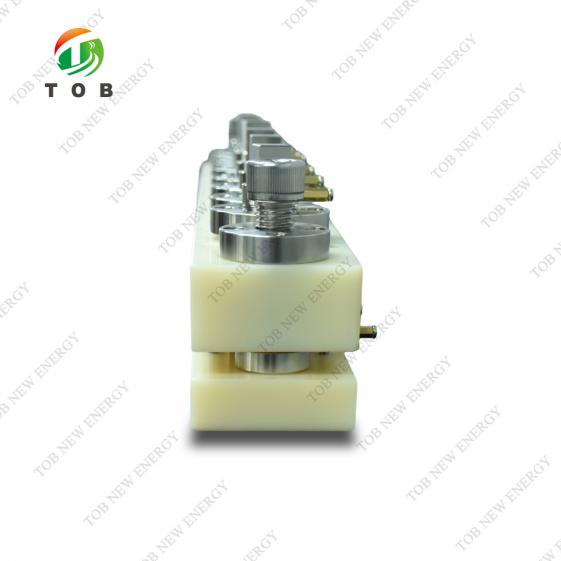

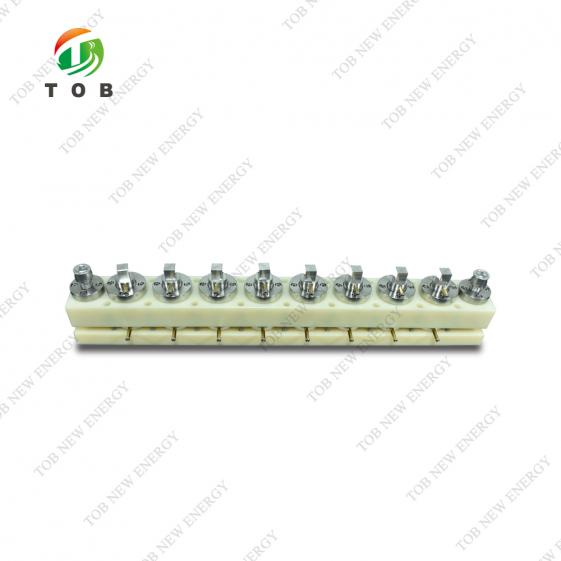

8 channels split test cellsplit test cellSwagelok Cellsplit coin cell
