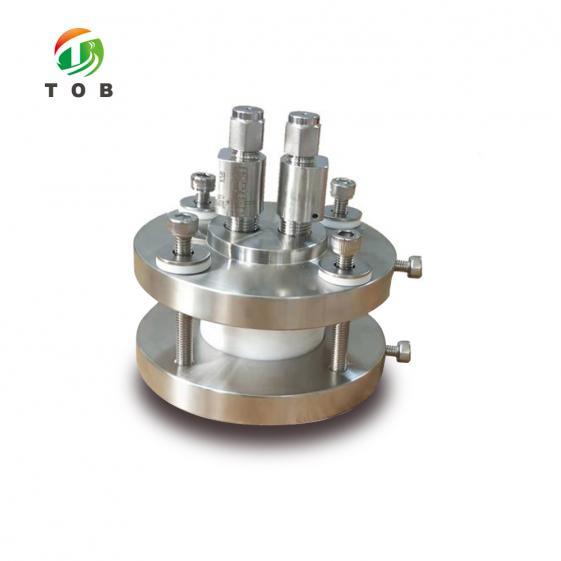

Split Test Cell for Lithium Air Battery Research

Split Test Cell for Lithium Air Battery Research

SPECIFICATIONS

The split test cell for lithium air battery research is a detachable electrochemical measurement device specifically developed for laboratory investigation of lithium-air batteries and zinc-air batteries.

Designed for controlled experimental environments, the device combines corrosion-resistant stainless-steel construction, stable mechanical compression, and gas management capability, making it suitable for fundamental research, materials evaluation, and electrochemical performance studies in air-battery systems.

Its compact structure allows convenient placement inside a glove box, supporting experiments that require controlled moisture and oxygen conditions.

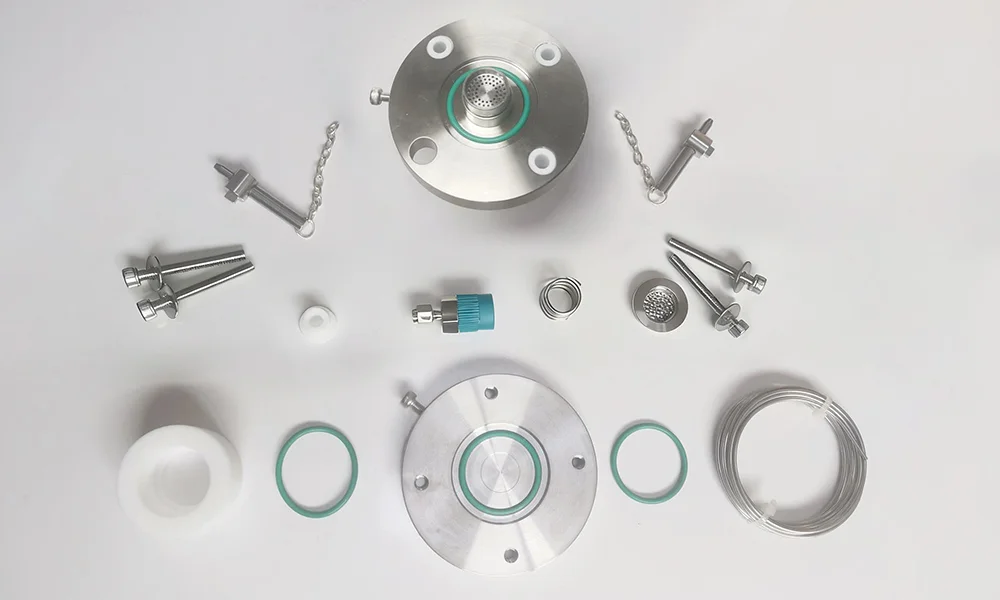

Structural Design

The main body of the split test cell is manufactured from stainless steel, providing durability, corrosion resistance, and structural stability for repeated laboratory assembly and testing.

An internal compression spring mechanism maintains consistent pressure on the electrode stack, ensuring reliable fixation of cell components during electrochemical measurement.

Sealing between the two electrodes is achieved through a combined structure of:

PTFE sealing components

Cylindrical chamber connection

Fluororubber O-ring sealing

This multi-layer sealing configuration supports the controlled internal environment required for lithium air battery research.

Gas Control Configuration

To meet the requirements of air-involved electrochemical reactions, the split test cell includes:

Stainless-steel needle valves at both gas inlet and outlet

1/16-inch compression fittings for external gas connection

Pre-installed 1/16-inch stainless-steel tubing for gas introduction or exhaust

This design enables researchers to manage gas flow conditions according to specific lithium air or zinc air battery experimental protocols.

Lithium air battery structure

Application Scenarios

This split test cell for lithium air battery research is suitable for:

● Fundamental research on lithium-air batteries

● Zinc-air battery electrochemical testing

● Electrode and catalyst material evaluation

● Gas-participating electrochemical reaction studies

● University laboratories and battery R&D institutions

Reliability and Service

● TOB NEW ENERGY provides:

● One-year warranty coverage

● Lifetime maintenance and technical support

These services ensure long-term usability and dependable operation in professional laboratory research environments.

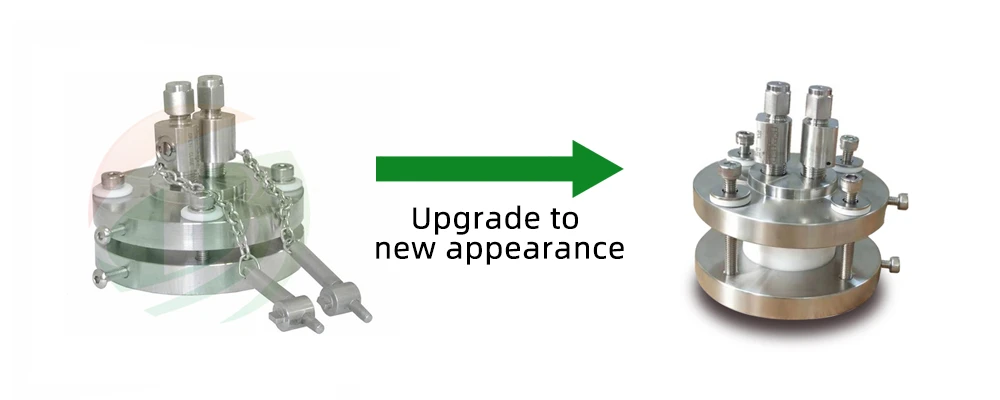

Product Display
