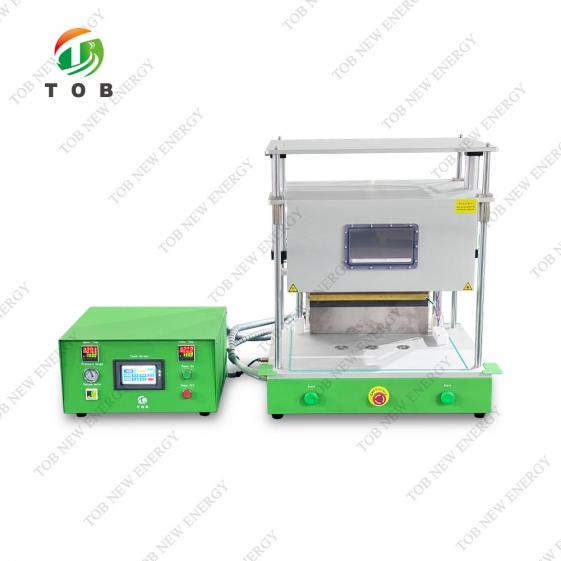

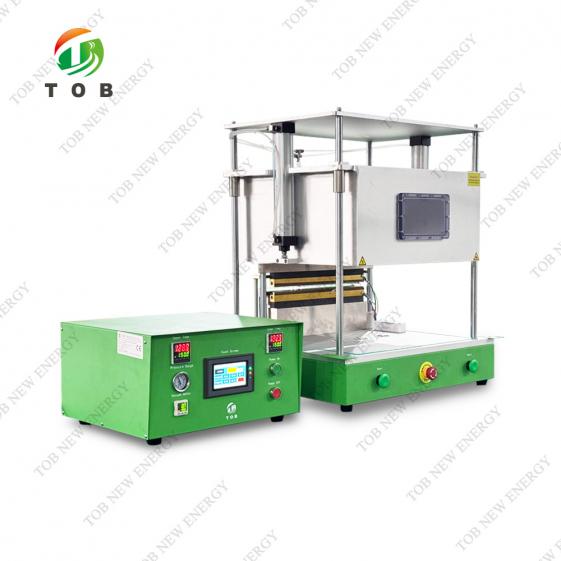

Vacuum Pre-sealing, Final Sealing and Electrolyte Diffusion Three-in-One Machine

SPECIFICATIONS

Product introduction

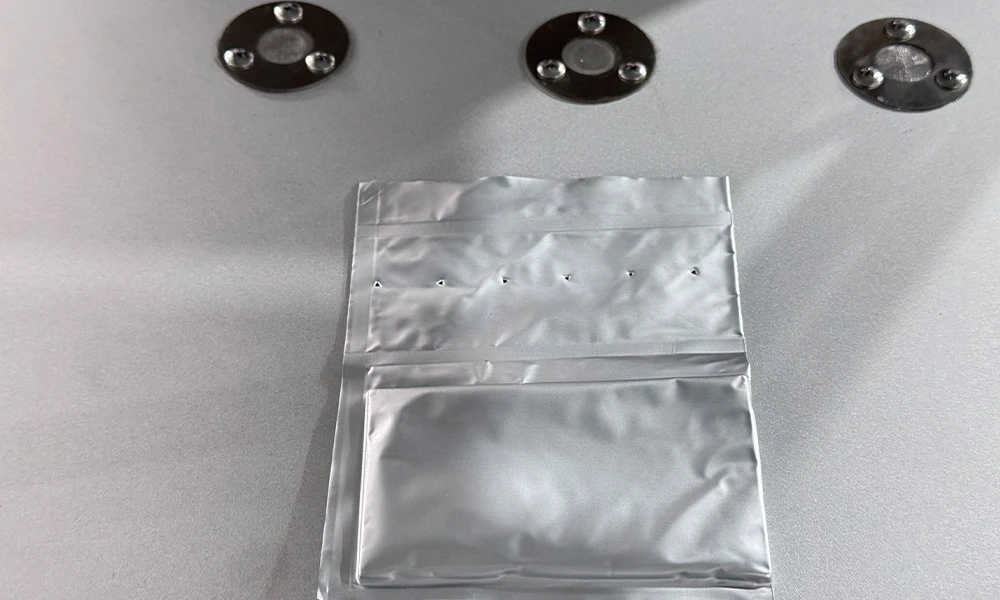

TOB-SJZYF400 is mainly used for the adsorption of electrolyte during the electrolyte injection of pouch cells. to ensure a more complete fusion with the electrode sheets in a vacuum environment. It is also suitable for the vacuuming and pre-sealing Final sealing of pouch cells after electrolyte injection and standing still. This machine automatically completes the vacuum heat-sealing of the pouch cell case by precisely controlling the vacuum suction box and the pneumatic heat-sealing component.

Main features

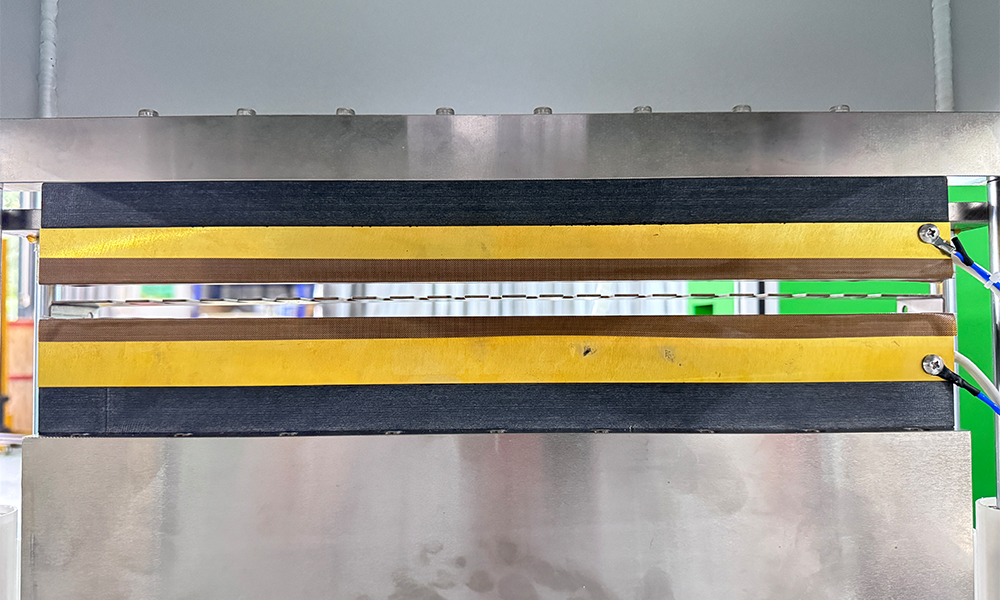

● The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products.

● The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

● The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing.

● Through the perspective window, you can observe the changes in the cavity while working.

● It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

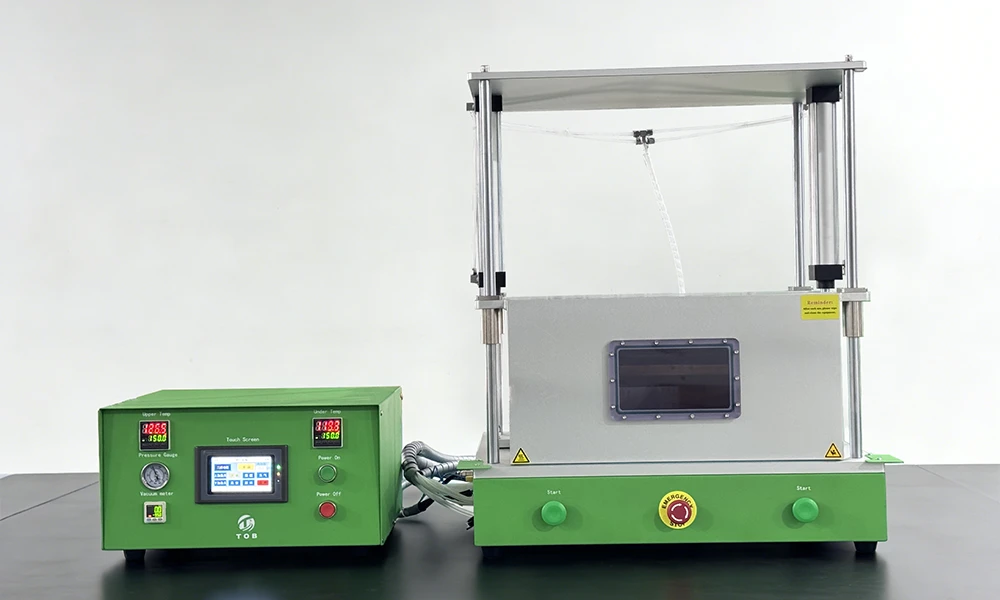

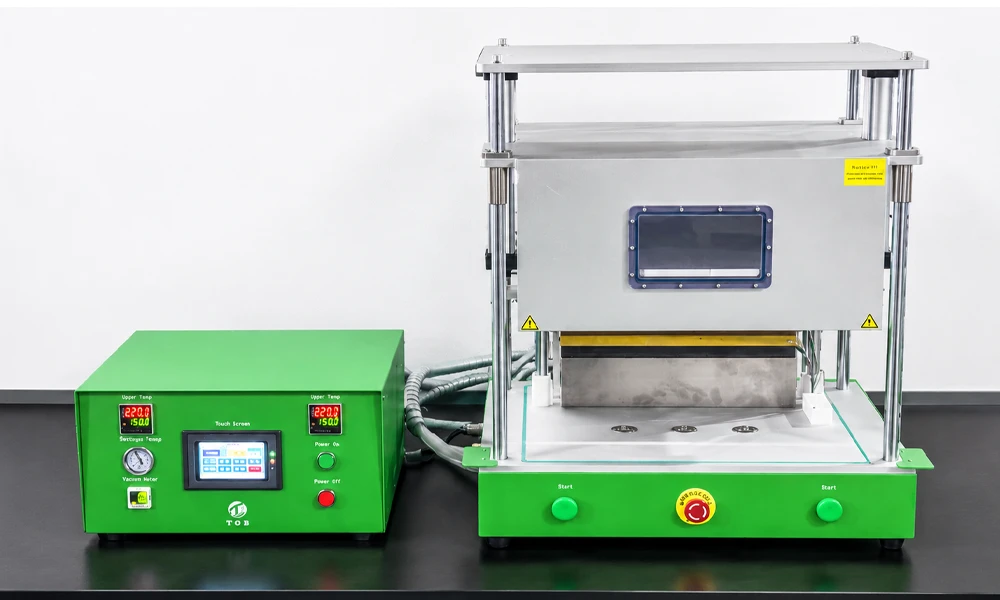

● The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.

● The product has a multi-stage cycle operation function. Helps the electrolyte to fuse more fully.

● The upper cavity is driven by an air cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guide is accurate to ensure the product tightness requirements.

● Beautiful appearance, small size and light weight.

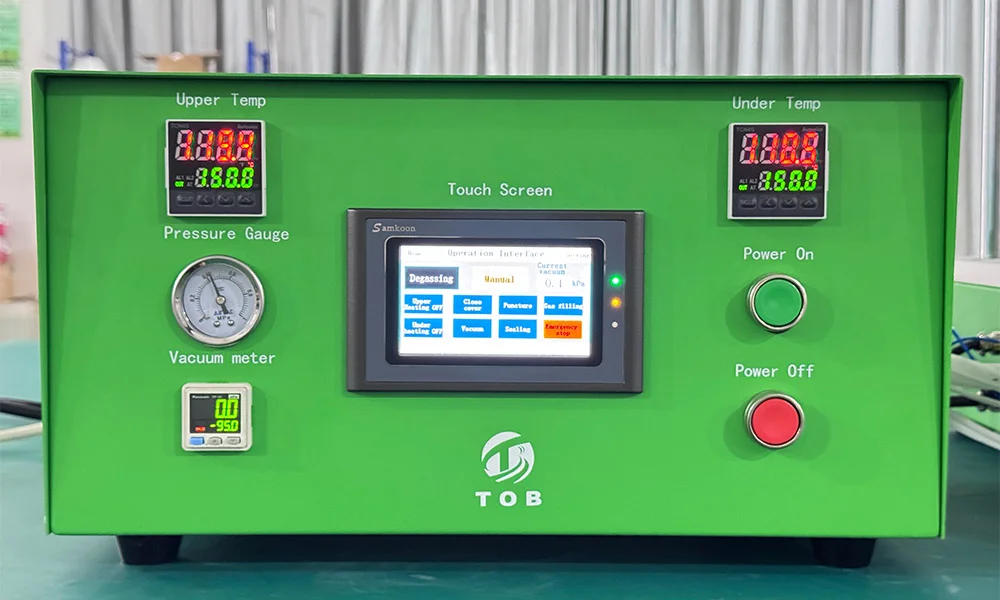

● PLC+touch screen control, easy to understand.

Product Display
