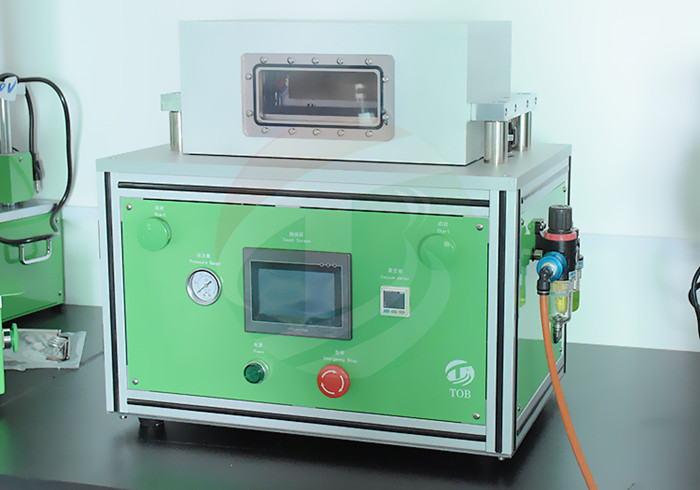

Pouch Cell Vacuum Final Sealing Machine

Large Size Pouch Cell Secondary Vacuum Heat Sealing Machine

Specifications

Main feature

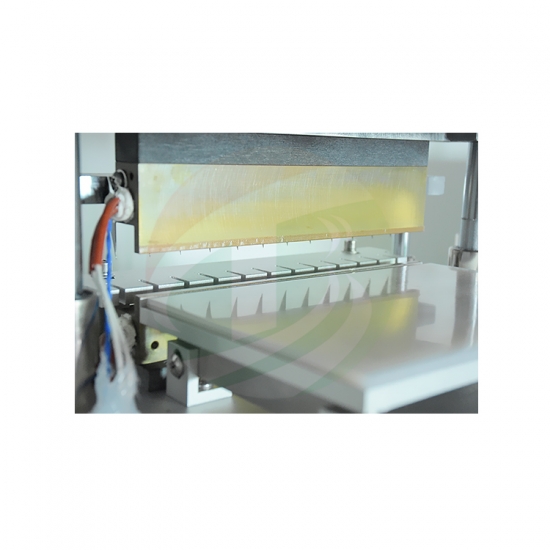

*The sealing head is made of copper materials,have a good heating transfer effect and power saving,can improve the work effective and more energy saving than other similar product；
*The pressure of the upper and lower sealing head can adjust by pressure regulator to achieve difference process parameter requirement；
*The upper and lower sealing head driven by cylinder and the direction controlled by two linear guide sheath.Flexible move ,accurate guide guarantee the parallelism requirement of the product after sealing.；
*With pierce function；
*Chamber lid driven by cylinder,and guide by linear sheath，flexible up and down activities，which can promise the requirement of the sealing performance；
*Can suit for difference model battery, and easy to adjust；
*Easy to operate,beauty appearance, small size and weight；

Technical parameter
*Chamber made by Aluminum alloy,anti corrosion,and firm structure；
*Vacuum degree≤-96Kpa(Buyer-provided vacuum pump)；
*Sealing head temperature：room temperature～250℃，adjustable；
*Temperature control precision：±1.5℃；
*Heating sealing pressure：0～7Kg/cm2 adjustable；
*Heating sealing time：0～99S adjustable；
*Sealing width：5±0.4mm(according the requirement of the customer)；
*Sealing length：340mm
*Maximum sealing size：310mm；
*Sealing thickness range：60~300um
*Sealing thickness precision.(mm)：Package thickness difference at any two points<15um.
*Air consumption：About 0.2L compress air/time。
*Air compressor working speed：≥180 times/h
*Power：Using 500w heating tube, the power consumption when heating is about 0.6KW。
*Power：220V/50Hz；
*Compress air source：0.5～0.7Mpa；
*Dimension：L600mm*W650mm*L800mm;

*Maximum battery size:
