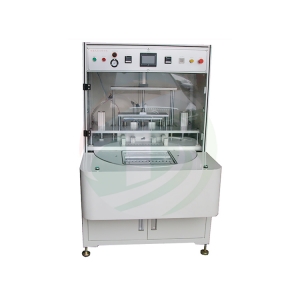

Turntable Type Vacuum Seal Machine For Polymer Battery

This Turntable type vacuum sealer machine is used for middle size pouch cell final vacuum sealing after the lithium battery formation.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-JD-EF-350
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30days
Product Detail
350mm Turntable Type Vacuum Seal Machine For Preparing Lithium Pouch Cell Final Vacuum Sealing


SPECIFICATIONS



1. This Turntable type vacuum sealer machine is used for middle size pouch cell final vacuum sealing after the lithium battery formation.

2. The feed turntable is divided into sealing and loading-unloading positions, firstly put the pouch cell on loading-unloading position, start double point button, the turntable go into sealing position, up and down chamber close, form a sealing cavity, finish vacuum, puncture and hot press sealing, start again, sealed pouch cell is send out by the turntable.

3. The double working position rotary cam drive.

4. The turntable, cavity with corrosion resistant material .

5. Can preset temperature, extraction time and sealing time.

6. Upper and lower head independent temperature control, with low and high temperature alarm function.

7. Digital vacuum degree display, clear and easy to adjust the settings.

9. Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.

Model

   TOB-JD-EF-350

Type

Turntable type

Source voltage

AC 220V, 50HZ, Customized as request

Power

1800W

Warranty

One year limited warranty with lifetime support

Air compression

0.6-0.7MPa

Vacuum degree

≤-0.095MPa

Size (L*W*H)

 900*1000*1600mm

Weight

About 700kg

Suitable battery size with air bag

350*250*15mm

Sealing head length

≤350mm

Sealing stamp width

6mm (customized)

Sealing thickness

0.1-0.35mm

Sealing temperature

RT-250℃ adjustable, Accuracy ±2°

Sealing time

1-99s, adjustable

Vacuum sealing time

1-99s,adjustable

Depth of parallelism

for sealing head

±0.01mm



Product display



Sealing box for vacuum seal machine

sealing box for vacuum seal machine

Copper sealing head for vacuum seal machine

Copper sealing head for vacuum seal machine
