battery machine and materials solution
Products

Hot Products


Battery Separator
加载中...

Glass Fiber Battery Separator

Usd for Soft packing alumnum battery, Aqueous zinc ion battery, Aqueous zinc iodine battery, Sodium ion battery

  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-GF-A
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

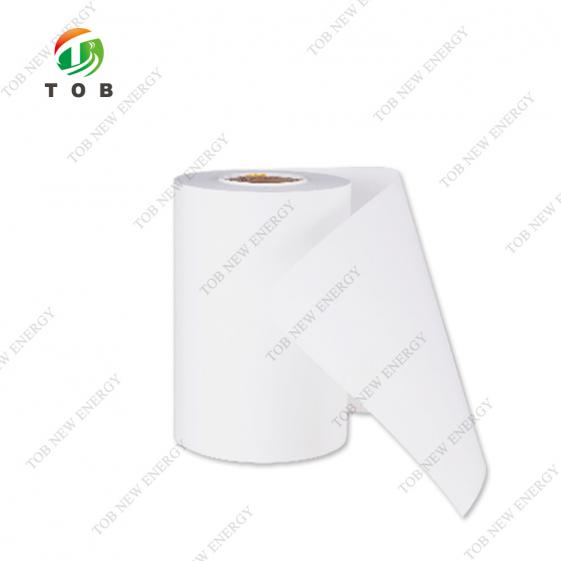

Glass Fiber Battery Separator for Aqueous Zinc Ion Battery Aqueous Zinc Iodine Battery Sodium Ion Battery and Aluminum Battery


SPECIFICATIONS



1.Product introduction

The membrane of GF battery uses 100% glass fiber as the base material, the glass fiber is inert,the chemical property is stable, and it is not conductive,which can effectively make the electrolyte ion pass through.

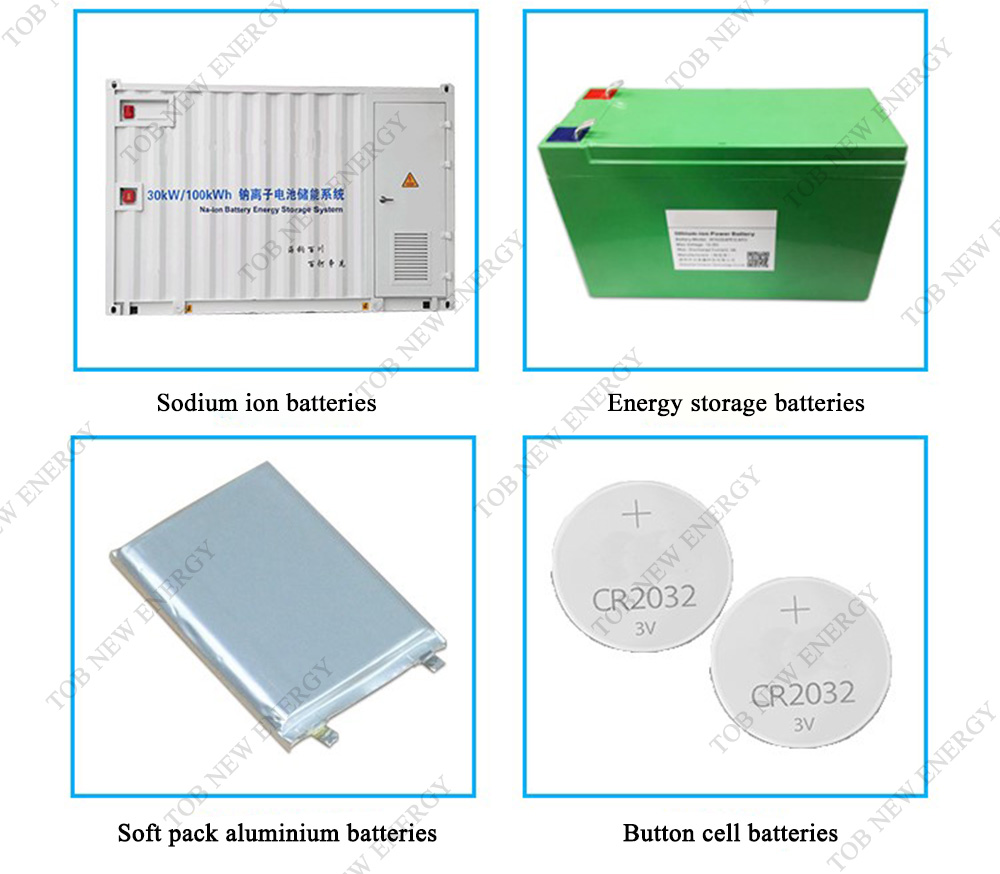

2.Application area

Aluminum battery

Aqueous zinc ion battery

Aqueous zinc iodine battery

Sodium ion battery


3. Product characteristics

1) uniform pore size distribution and thickness.

2)moderate porosity and good air permeability.

3)High puncture strength and tensile strength.

4) Excellent hydrophilicity, acid resistance, alkali resistance and thermal stability.


4. Technical specifications

Product index

Name

Model

Weight

Aperture

Thickness

MD-KN/M

GF battery separator

TOB-GF-A

66

1.63

0.29

0.15


Specification quantity

Size

Number

Packing

W-200MM

10/25/50(M)

Carton

100MM-100MM

40PCS

Box

Note: Custom sizes available.

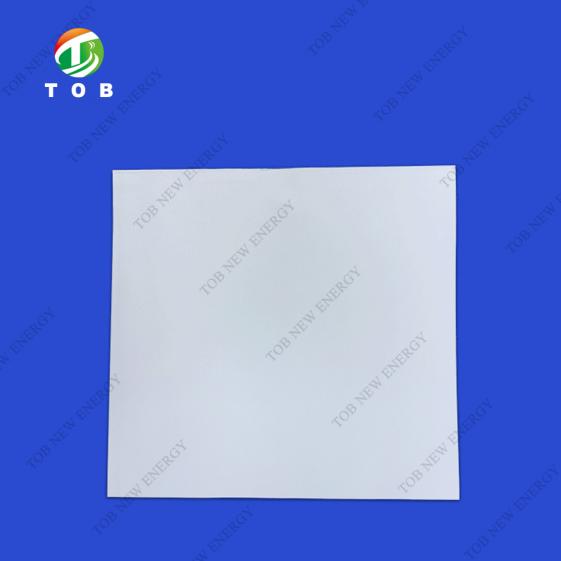

PRODUCT DISPLAY



Gas Diffusion Layers

Learn more other Battery Materials from TOB NEW ENERGY


 Email : tob.amy@tobmachine.com

 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

our works
related products

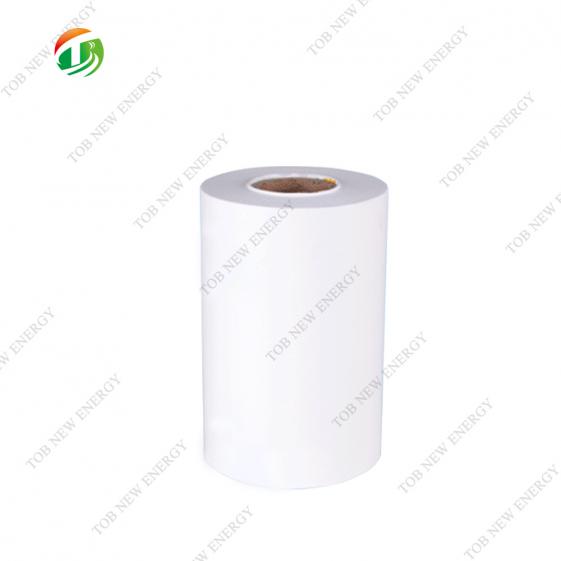

China Leading 25um polypropylene/PP separator for lithium ion battery Manufacturer
25um polypropylene/PP separator for lithium ion battery
Polypropylene/PP separator for lithium ion battery SPECIFICATIONS Length:400m,  width:50mm, Thicness:25umMode:TOB-PP-25 Name  PP(polypropylene) Separator Item Unit   Type TOB-PP-25 Thickness um 25 Air Permeability sec/100ml 520 Factor of porosity % 42   Tensile Strength  MD Kg/cm2 >1200 TD Kg/cm2 >130 Puncture Strength g >450 Thermal contraction (90℃ 1h) MD % ≤2.5 TD % ≤0.5  Thermal contraction  (105℃ 1h) MD % ≤4 TD % ≤1  Obturator temperature  ℃ 153   PACKAGE  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
China Leading 16um pp separator for lithium ion battery Manufacturer
16um pp separator for lithium ion battery
16um pp separator for lithium ion battery
 lithium ion battery separator
8um Separator for Lithium ion Battery Cells Electrode
8um separator for lithium ion battery raw materials
China Leading 30um separator for lithium ion battery raw materials Manufacturer
30um separator for lithium ion battery raw materials
30um separator for lithium ion battery raw materials
separator for lithium ion battery
20um separator for lithium ion battery raw materials
Polypropylene/PP separator film for lithium ion battery SPECIFICATIONS Length:400m,  width:50mm, Thicness:20umMode:TOB-PP-20 Name  PP Separator paper Item Unit   Type TOB-PP-20 Thickness um 20 Air Permeability sec/100ml 420 Factor of porosity % 40  Tensile Strength  MD Kg/cm2 >1200 TD Kg/cm2 >130 Puncture Strength g >450  Thermal contraction (90℃ 1h) MD % ≤2.5 TD % ≤0.5  Thermal contraction  (105℃ 1h) MD % ≤4 TD % ≤1  Obturator temperature  ℃ 153   PACKAGE  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
separator for lithium ion battery
40um separator for lithium ion battery raw materials
Polypropylene PP separator film for lithium ion battery.
Strapping Tape
Lihtium Battery Strapping Tape
The tape is made of PET film backing and single side coated with acrylic adhesive. It’s provided with high performance in electrical insulation and heat-resistance, excellent adhesion and can be easily peeled off without residue. The material is environmental friendly and ROHS complied. Used on parts of lithium battery and for adhesion, packing, wrapping and holding purposes on battery assembling process.
Hot Melt Adhesive
0.1mm Thickness White Hot Melt Adhesive For Battery Tab
This hot melt adhesive/sealant is specific and necessary item for sealing tab (Nickel or Aluminum) in between aluminum-made lamination film (pouch cell case).
