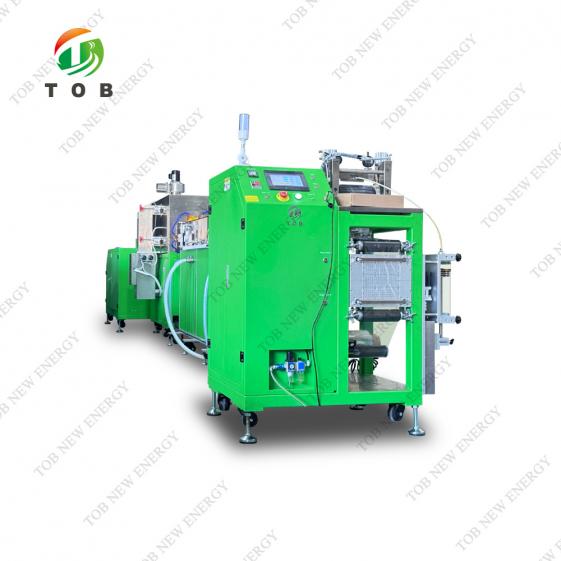

Water Bath Slot Die Coater

Water Bath Slot Die Coater

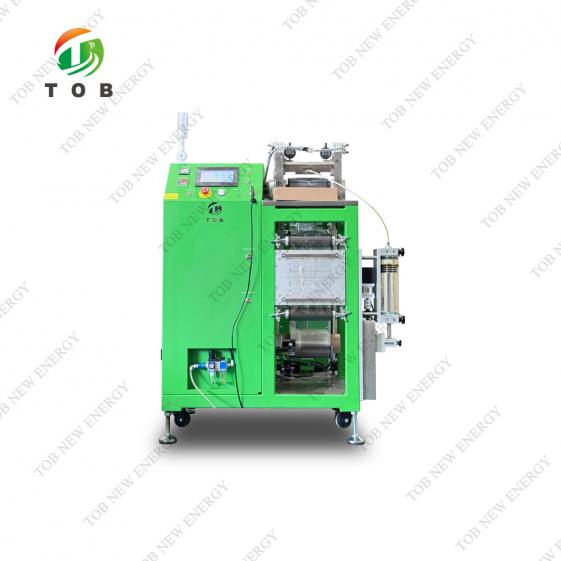

SPECIFICATIONS

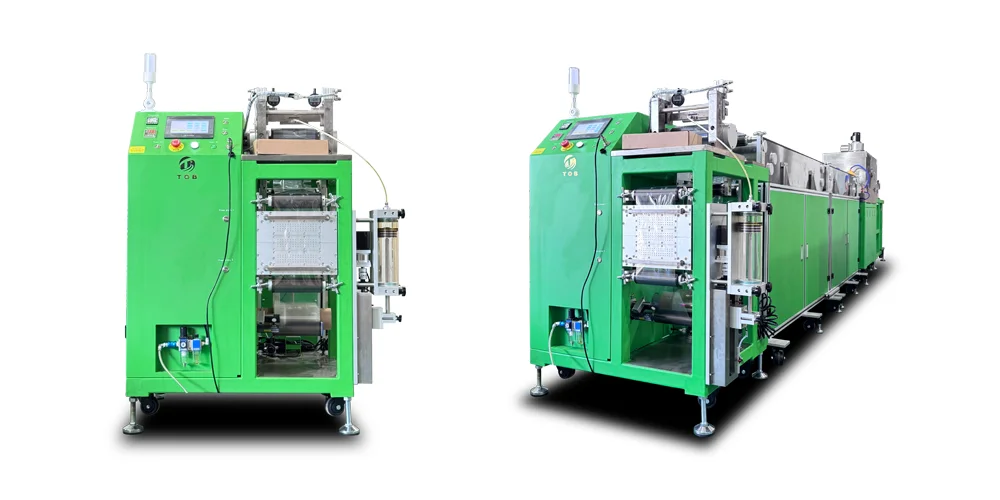

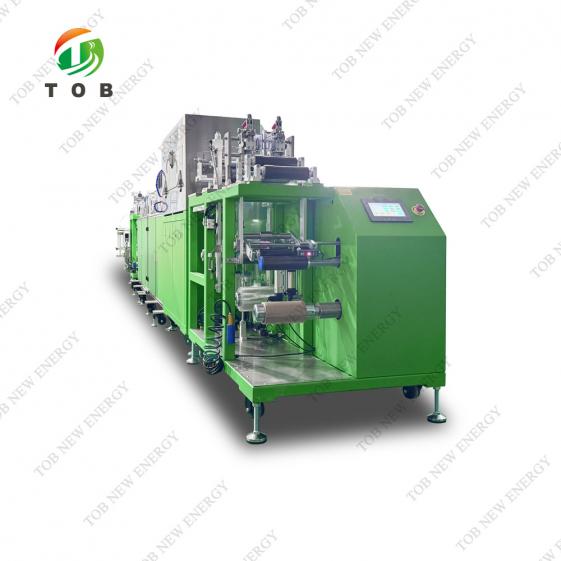

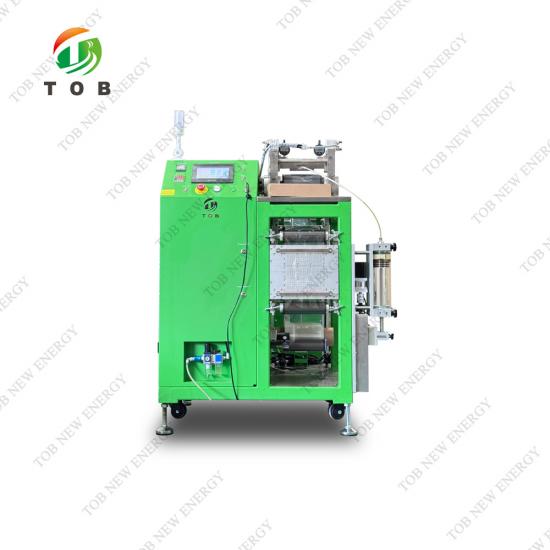

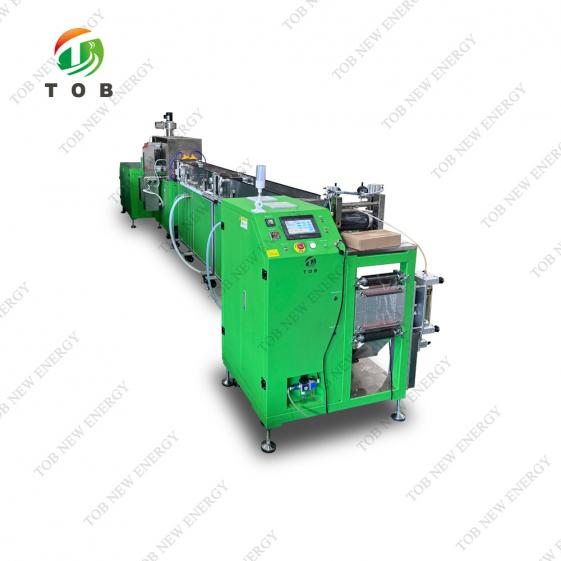

The TOB-KDS-200-3 Water Bath Slot Die Coater is a high-precision laboratory and pilot-scale coating system. It excels in processing a variety of slurries with exceptional accuracy and stability.

Main Features:

● Stable Web Guiding: Substrate tension control for stable web travel, equipped with an ultrasonic edge guide device.

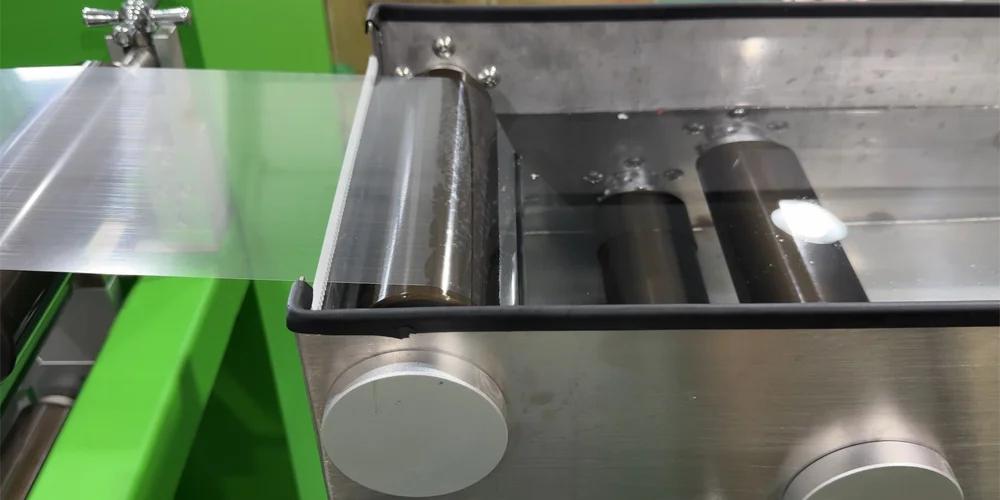

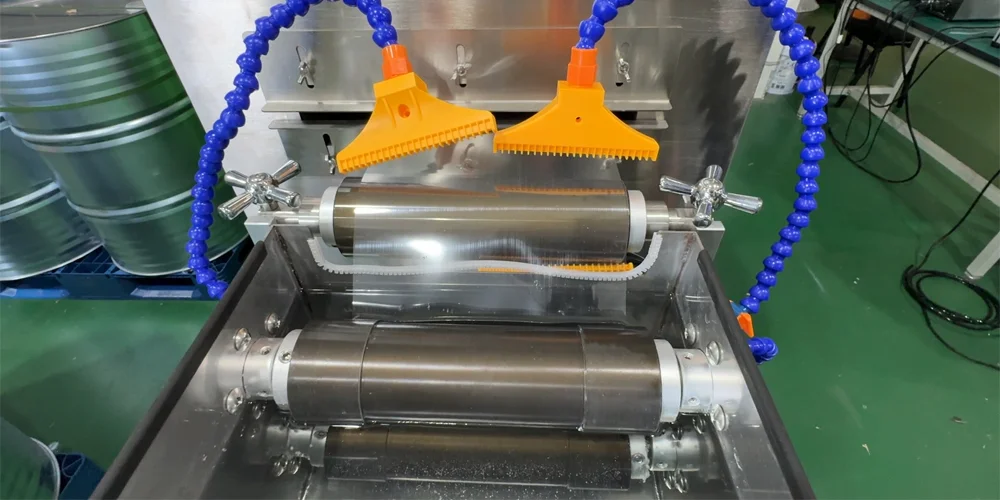

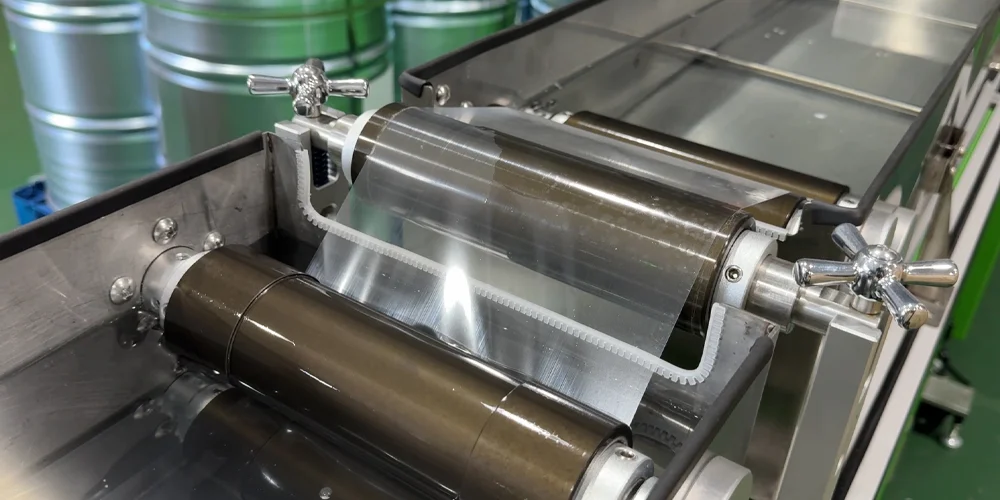

● Dual Liquid Capability: Dual water bath devices can be configured with two different liquids.

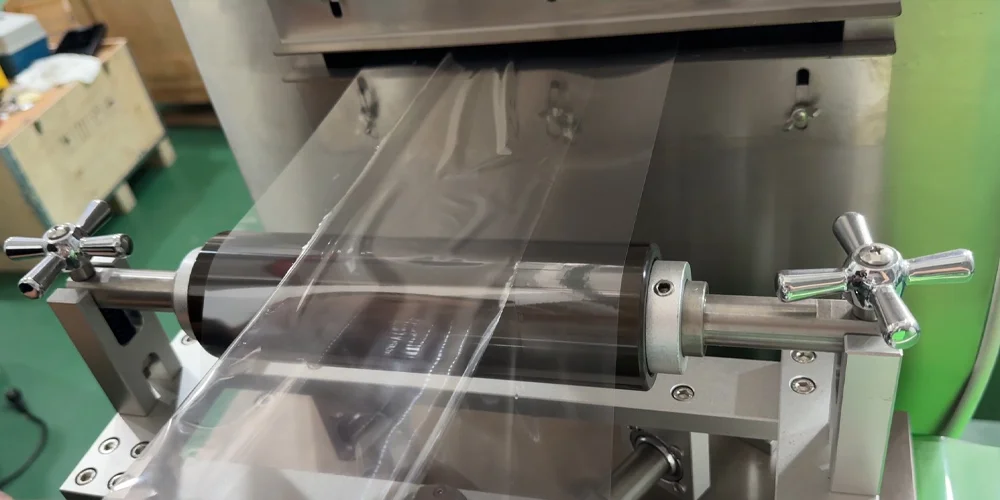

● Independent Winding: Dual winding mechanism with independent tension control.

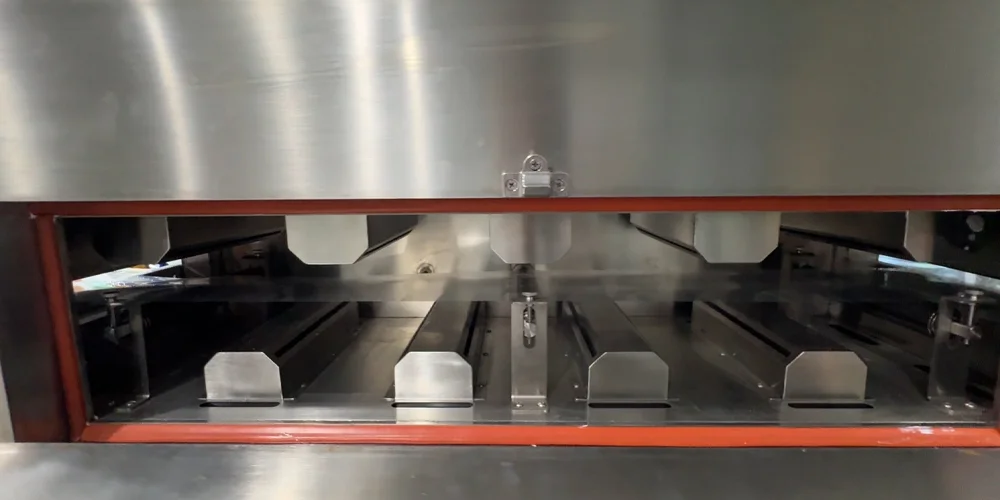

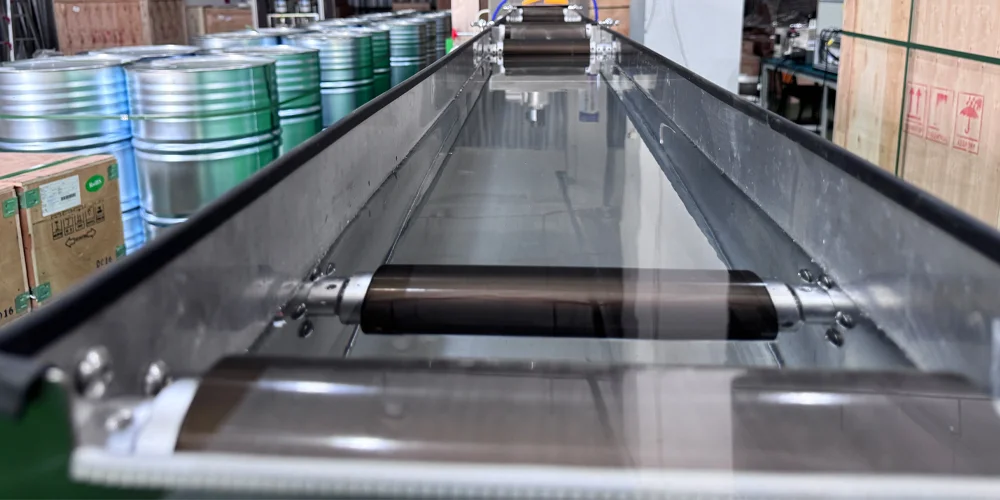

● Efficient Drying: Hot air oven with top and bottom air blowing for excellent drying performance.

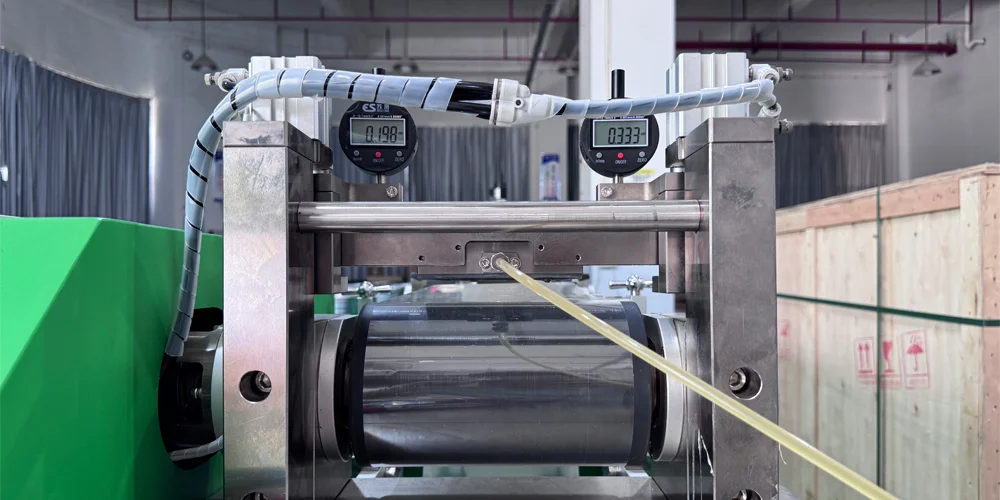

● High Precision Coating: Equipped with a slot die coating head and precision adjustment mechanism for high coating accuracy.

● Precise Heating: Utilizes analog power regulators for heating control, offering high precision and long service life for the heating system.

● User-Friendly Control: PLC control with dual touch screens (head and tail) for easy and convenient operation.

Main Technical Parameters and Configuration

Equipment Function:

Equipment Dimensions and Weight:

● Dimensions: L7000 × W920 × H1900 mm

● Weight: Approximately 1200 kg

● Installation: Equipped with casters and adjustable feet.

Hardware Precision:

Installation Environment Requirements

Temperature:

● Coating Head Area: 25~30℃

● Remainder of Equipment: 10~40℃

Relative Humidity:

● Coating Head Area: For Positive Electrode ≤ 35%, For Negative Electrode ≤ 98%

● Remainder of Equipment: ≤ 98%

Supporting Facilities

Power Supply: Three-phase five-wire system, 380V, 50Hz. Voltage fluctuation range: +8% to -8%. Total starting power: 20 kW.

Compressed Air: Supply must be dried, filtered, and pressure-stabilized. Outlet pressure must be greater than 5.0 kg/cm² (approx. 0.49 MPa).

Maintenance Methods and Precautions

● Clean the slot die, coating roller, and all guide rollers thoroughly before and after each operation.

● Keep all frequently moving parts clean and properly lubricated to ensure smooth operation.

● Regularly inspect and tighten all screws, nuts, pins, and other fasteners on the machine to prevent loosening and potential product quality incidents.

● For safety, do not allow two or more persons to operate the machine simultaneously to avoid accidents caused by miscommunication.

● Do not use oil-based cleaners to wipe any rubber rollers.
