Ultrasonic Disperser

Brand:
TOB NEW ENERGY
item no.:
TOB-LC-500
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Ultrasonic Disperser

SPECIFICATIONS

Material dispersion instrument, also known as ultrasonic disperser, ultrasonic cell crusher and emulsification disperser, uses the ultrasonic cavitation effect of ultrasonic to disperse agglomerated particles. It puts the particle suspension (liquid) to be processed into an ultrasonic field and processes it with appropriate ultrasonic amplitude and action time. Due to the inherent characteristics of powder particle agglomeration, for some powders that are not well dispersed in the medium, an appropriate amount of dispersant can be added to maintain a stable dispersion state. This product has recently been particularly suitable for dispersing nanomaterials and disrupting cells. It has good results and is attracting attention.

Model	TOB-LC-500	TOB-LC-1000	TOB-LC-1500	TOB-LC-3000
Working Frequency（KHz）	22-30	22±1	22±1	22±1
Ultrasonic Power（W）	5-500	10-1000	20-1500	500-3000
Ultrasonic Horn	Φ6	Φ10	Φ20	Φ35 or Φ40
Single Processing Volume（ml）	0.2-400	0.2-600	50-1500	50-5000
Optional Ultrasonic Horn	Φ2，Φ3，Φ8，Φ10	Φ6，Φ12，Φ15	Φ15，Φ25
Temperature Control (Optional)	-60-200℃

Same Series Product


TOB-LC-1000D(Fully sealed Ultrasonic Cell Disruptor)	TOB-LC-2008(Low Temperature Ultrasonic Cell Disruptor)

PRODUCT DISPLAY

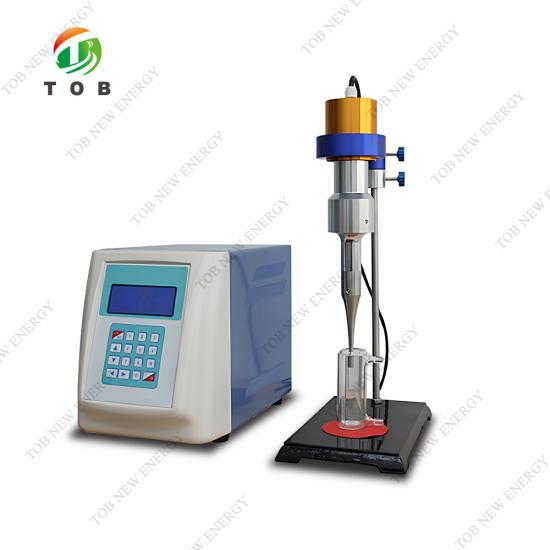

Ultrasonic Disperser

soundproof box
