Φ100*200mm Hot Roll Press Machine Stainless Steel

TOB-GYJ-100C-S Lab Roll Press Machine is a compact precision Hot Roll Press Machine . It has dual rollers of 100mm dia. x 200mm width and dual grade micrometer.
  • item no.:

    TOB-GYJ-100C-S
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

Electric Precision 4" Dia * 8" Width Hot Rolling Press with Dual Micrometer up to 80℃ Without Surface Coating


SPECIFICATIONS



1 TOB-GYJ-100C-S Lab Roll Press Machineis a compact precisionHot Roll Press Machine. It has dual rollers of 100mm dia. x 200mm width and dual grade micrometer. This lab roll press machine is an idealHot rolling pressfor adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

2 This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.

3 It has a pair of 200mm width steel rollers. Such a roller can be heated up to 80℃.


Model

Φ100*200mm Hot Roll Press Machine   TOB-GYJ-100C-S

Working Voltage

110V / 220V AC single phase selectable

Power

900W Total

Warranty

One year limited manufacture warranty with lifetime support

Structure

1 Heavy duty steel frame, gears and handle

2 Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62)

with Cr electroplated coating

3 Dual micrometer for accurate thickness adjustment in range 0 - 1.5mm Maximum

Roller

Dimensions: 100mm(Dia.) x 200mm(W)

Material: Made from hardened tool steel (HRC > 62)

with Cr electroplated coating. With finish  > 0.8

Rolling press accuracy

≤±0.005

Roller surface hardening

depth

5mm

Heating Temperature

10-80℃

Temperature Control Accuracy

+/-5℃

Max pressure

3T

Rolling press thickness

0-1.5mm adjusted with Dial gauge

Rolling press width

Max 200mm, Customized

Rolling press speed

0-20m/min adjustable

Weight

95kg

Application Notes

This roller is specially designed for battery R&D in terms of its advantages

as affordable, compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property

of the materials.

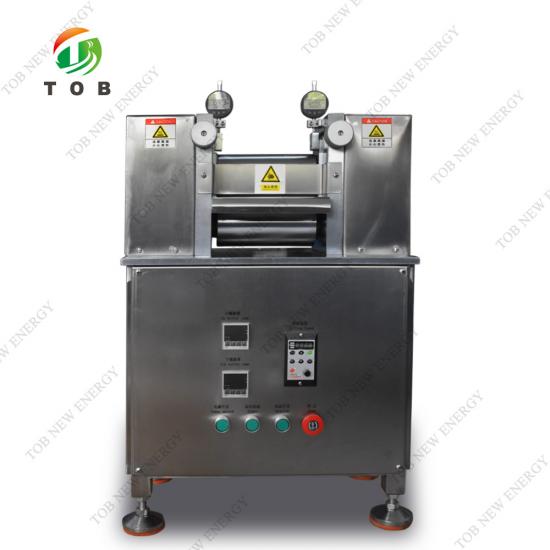

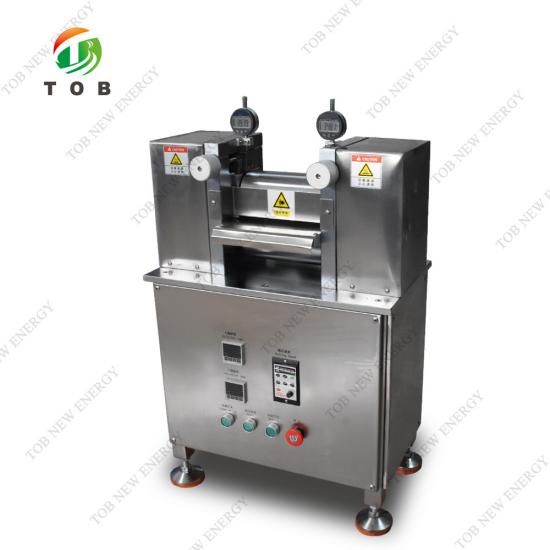

PRODUCT DISPLAY



 Hot Roll Press Machine

electric rolling heat press machine


PACKAGE

electric rolling heat press machine




PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
