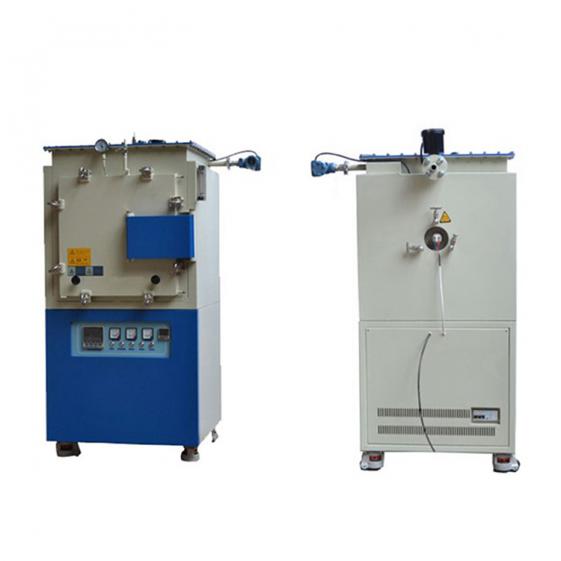

1700 ℃ atmosphere chamber furnaces

Update: 2015-10-09      View:8042
  • Item Num :TOB-DSP-GF17
  • Shipping Port: XIAMEN
  • MOQ :1set
  • Payment :L/C,T/T,Western Union, Paypal
  • Product Orgin:China
  • Delivery Time :7days
  • Order Online
Message

have a question? you can call us or Email us by sending a message below.

Subject : 1700 ℃ atmosphere chamber furnaces

Introduction

1700 ℃ atmosphere chamber furnaces

SPECIFICATIONS

Model

TOB-DSP-GF1700-I

TOB-DSP-GF1700-II

TOB-DSP-GF1700-III

TOB-DSP-GF1700-IV

TOB-DSP-GF17-V

Power

3KW

5KW

7 KW

9KW

13 KW

Furnace tube size(mm)

160X150X150

200X200X200

300X200X200

300X250X250

400X300X300

Dimension

550X 470X860

600X 510X910

600X610X940

650X 610X990

700X 710X1355

Power supply voltage

220V

380V

Phase number

Single-phase

Heating element

1800 type silicon molybdenum rod

Temperature control mode

.Yudian temperature control

30 sections can only use PID temperature regulation.

.FP93 temperature control (from Japan)

(Replace imported instruments, for an additional fee)

1,40 section program temperature control can be divided into 4,2,1 group program,

 if the program is divided into four groups, each program segment 10,

2,6 group PID control, low, medium and high temperature can each with a set of PID,

such that each segment is capable of controlling the temperature is very accurate.

Control accuracy

+/- 1 ℃

Triggers

1.Phase trigger (with soft start and current limiting function)

2.Current limiting function: no matter how to adjust the heating time,

our furnace transformer secondary current through the post is limited to 160A,

limited protection of equipment, no matter how you operate, the device will not burn.

3.Soft-start function: When the power current will slowly increase,

the impact on the heating element is small, help extend the life of the heating element

SCR

106 / 16E Germany Semikron

Max temperature

1700 ℃

Rated temperature

1650 ℃

Heating rate

≤20 ℃ / Min (available upon request modification)

Recommended heating rate

≤10 ℃ / Min



Thermocouple Type

Type B

Certification

CE

Surrounding surface temperature

≤45℃

Maximum temperature use in a variety of atmosphere

Atmosphere

Max temperature

NO2,CO2,O2,Air

1700℃

He,Ar,Ne

1650℃

SO2

1600

CO,N2

1500

Wet H2

1400

Dry H2

1350


PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery
