300L Planetary Vacuum Mixer
加载中...

300L Planetary Vacuum Mixer And Dispersing Machine

This TOB-XFZH300 planetary mixing machine is suitable for mixing and dispersing the powder and liquid materials of various common batteries, and finally obtains a uniformly mixed battery slurry. Especially suitable for high viscosity process.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-XFZH300
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

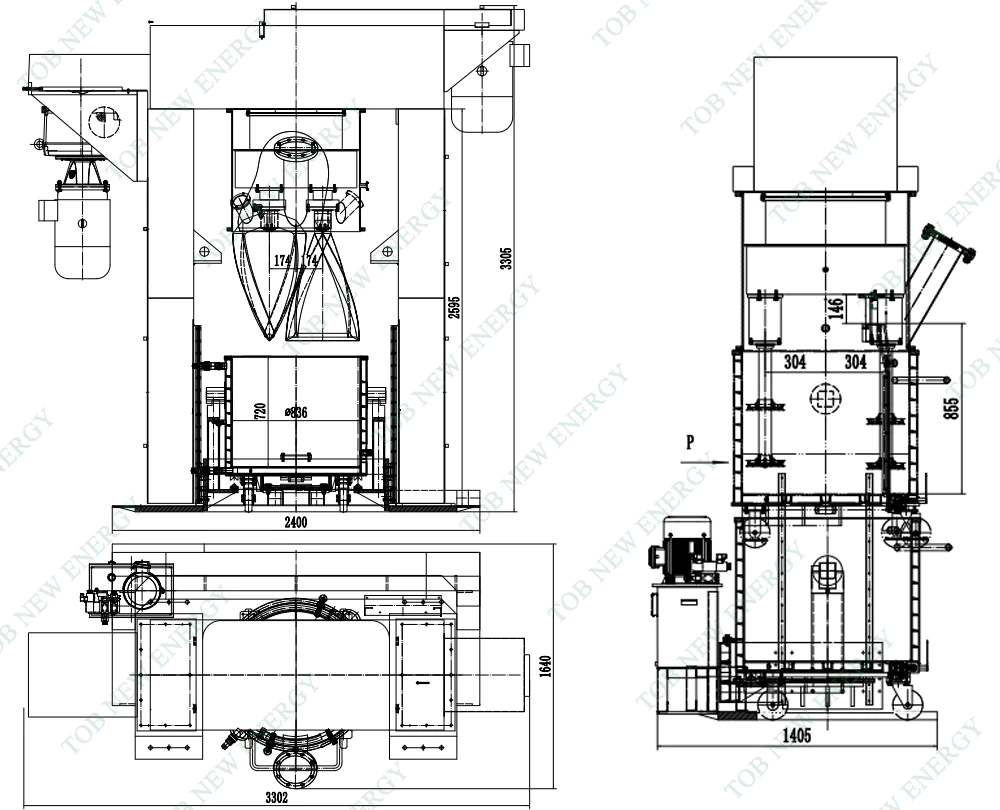

300L Planetary Vacuum Mixer And Dispersing Machine


SPECIFICATIONS


Product pictures are just for reference , the specific object shall prevail


Application:

1. This TOB-XFZH300 planetary mixing machine is suitable for mixing and dispersing the powder and liquid materials of various common batteries, and finally obtains a uniformly mixed battery slurry. Especially suitable for high viscosity process.

2. Adapt to working conditions with a viscosity range of ≤1.2 million cP.


Main Parameters:



Lower Mixing barrel:

Design volume

395L

Effective volume

130-300L

Inner diameter of the container

836mm

Inner depth of the container

720mm

Container material

The part in contact with the material is 304 stainless steel

Cooling Jacket

Barrel wall single layer jacket for cooling or heating; barrel bottom single layer jacket for cooling or heating

Cooling Jacket interface

G1", with quick open joint, jacket pressure ≤0.4MPa

Cooling Jacket circulation system

Prepared by the customer, it is recommended that the jacket water inlet temperature be ≤8°C and the cooling water flow rate be greater than 80L/min

How to discharge

A G1-1/2" three-piece discharge ball valve at the bottom of the barrel

Ambient temperature

-10°C~+120°C

How to move

Universal wheel


Mixing parts

Working frequency

5-50hz

Mixing power

22kw

Mixing speed

3-38rpm

Planetary box speed

2.6-26rpm

Mixing paddle diameter

478mm

Paddle style

Spiral type, precision casting and processing to ensure 90° helix

Mixing paddle material

304

Mixing paddle linear speed

0.1-1.0m/s

Number of paddles

2pcs

Paddle to paddle distance

7±2.5mm

Paddle to barrel wall distance

4±1mm

Paddle to barrel bottom distance

4±1.5mm


Dispersing Parts

Working frequency

5-65hz

Dispersing power

30kw

Dispersing rotate speed

280-2340rpm

Dispersing plate diameter

190mm

Dispersing model

Serrated

Dispersing plate material

304 stainless steel

Dispersing line speed

1.8-3m/s

Dispersing number

4pcs

Dispersing shaft number

2pcs


Scratch the Wall Parts

Scratch wall bracket material

304 stainless steel

Scratch wall material

Teflon

Scratch wall rotate speed

Consistent with planetary box rotate speed

Removable or not

Removable design (Need to remove when scraping the wall on high viscosity process)


Base and Lifting Parts

Parts materials

High rigidity structural carbon steel

Lifting way

Hydraulic cylinder

Lifting guide

High-precision linear guide

Lifting itinerary

≤820mm


Upper Barrel Parts

Upper barrel material

304 stainless steel

Power feed port

Flange interface DN150 1pcs

Liquid feed port

ISO standard 1" quick interface 1pcs

Mirror port

DN110 tempered glass sight glass 1pcs

Vacuum pumping + vacuum breaking port

ISO standard quick opening clamp interface 1pcs

Nitrogen filling port

G3/4" 1pcs

Exhaust port

G1" 1pcs

Digital vacuum gauge port

M14×1.5 inner wire metric tooth interface 1pcs

Respirator port

ISO standard quick open clamp interface 1"


Control System

Electrical cabinet

Used to install low-voltage electrical components such as inverter

Manual operation panel

For placement buttons, knobs, gauges, etc.

Power supply

AC 3×380V±5﹪,50Hz

Control mode

Electronic control and hydraulic control

Power control and speed adjustment mode

Inverter start and control

Cooling mode

Air cooling and water cooling

Operation mode

Touch screen

Digital temperature display gauge

Material temperature

Emergency stop button

1pcs

Alarm system

Over-temperature alarm, over-temperature alarm shutdown, alarm shutdown

Speed display

Touch screen shows the speed

Power instructions

1pcs

Timer

1pcs, control dispersion and mixing at the same time


Safety Chain System

Emergency stop

Press the emergency stop switch, the device immediately stop, and can not do anything

Start low-speed mixing

Can lift the barrel and turning at the same time

High-speed dispersion

Barrel up in place before turning

Safe lock in operation

When the machine is running, the mixing barrel can not be lowered, can not open the mixing barrel.

Prevent vacuum tube backflow

Special vacuum buffer tank design, can effectively prevent the vacuum pump oil back to the mixing drum phenomenon

Stop running fault

Inverter comes with overload, overcurrent, overvoltage, leakage, lack of equal protection

Mixing barrel lift

Stirring barrel in place to rise

Mixing barrel did not return to normal pressure can not be dropped.

After mixing barrel rises in place and high-speed dispersion, then can be started.

After mixing barrel rises in place, with locking protection system, to prevent while the mixing barrel rises to high place abnormal fall.

Dry mixing stage, while the barrel rising, the stirring paddle need to rotate at the same time.


Requirements

No.

Project name

Standard requirements

1

workshop height

>4M; the machine lift needs a certain height guarantee and consider the maintenance needs; neat and smooth.

2

door size

Height: >4.0M; Width: >3.5M; to ensure that the machine is transported in and out.

3

Cooling water

To ensure cooling requirements, it is best to have a forced cooling water supply system; if heat preservation is required in winter, hot water supply is required.

4

Heating

In view of the cold weather in the north in winter, in order to prevent the hydraulic oil used for lifting from condensation, the indoor temperature must be >20ºC to ensure the smooth lifting of the machine; and to ensure the normal operation of the lubrication system.

5

installation space

Refer to the general plan for layout.

6

Air source

5~7 kgf/cm², 100 l/min; pneumatic pump drive and other occasions.

7

other

No corrosive gas, liquid, explosive gas.
