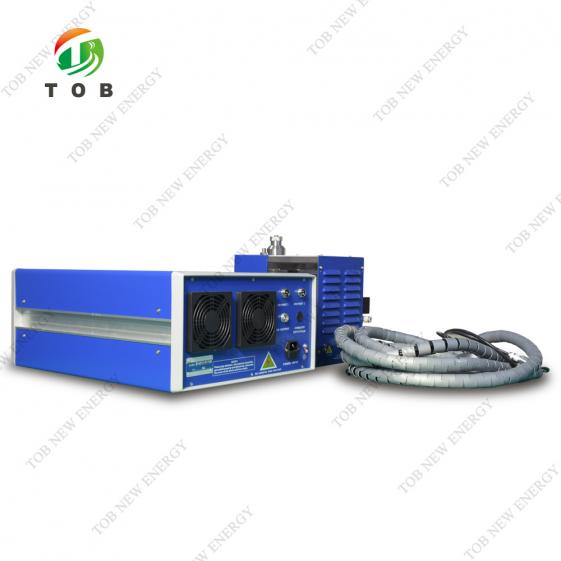

800W Ultrasonic Welding Machine

TOB-X800W Ultrasonic Welding Machine (Can Be Used in Glove Box)

The use in the glove box must go through special settings, otherwise there will be safety hazards.

SPECIFICATIONS

Equipment size
1. Size of the spot welder high power generator ( LxWxH ): 480mm x365mm x202mm

2. Size of the spot welder head (topmost: LxWxH): 420mm x180mm x290mm

2. All measuring instruments on the equipment use metric units

Equipment power requirements

Voltage: 110V ±10%, gas source: pressure 0.4~0.6MPa, humidity less than 48%, temperature not higher than 45℃

Equipment structure composition

1. The metal spot welding machine is mainly composed of ultrasonic generator, transducer, upper and lower sound pole, pneumatic parts, frame, etc.

2. The circuit mode selects full-bridge high-power mode, with stable performance and strong output.

3. The material of upper and lower sound pole is made of new alloy material with good wear resistance.

Applicable requirements for the whole machine

1. All components are metal structure
2. For the convenience of machine maintenance and transportation, are split structure
3. The working drive of the equipment is pneumatic drive
4. The power supply of the equipment is single-phase power supply

Equipment cost

1. The upper and lower sound pole is a perishable part, ultrasonic emission is normally guaranteed for three months. Can be repaired, generally repair 3-4 times scrap.

2. Foot switch 1.5 million times to replace

3. Relay 1.5 million times to replace

Safety measures

The equipment conforms to the enterprise factory standard. Precautions for use: When the equipment welding instability, it is strictly prohibited to continue to use, otherwise the party responsible for their own; upper and lower sound level belongs to the wearing parts, please regularly check the pattern wear, such as serious wear need to be replaced in a timely manner.

Equipment and corresponding welding process description:

Equipment main configuration list

List of spare parts

List of consumable parts and tools

PRODUCT DISPLAY
