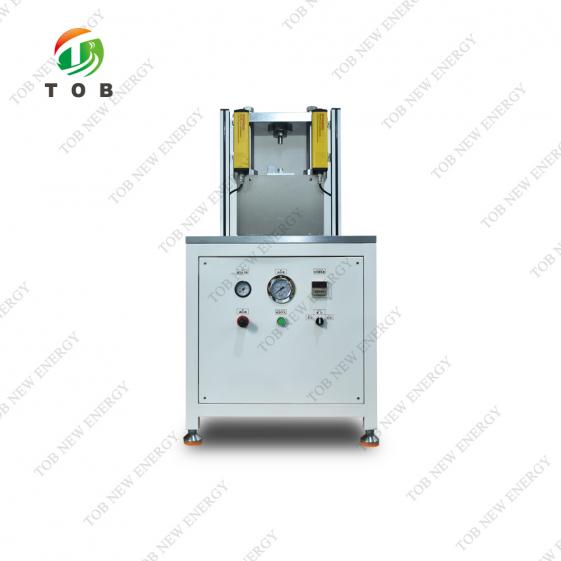

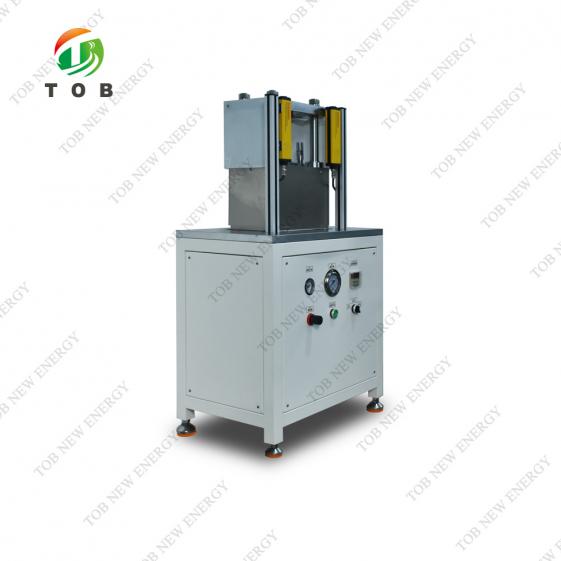

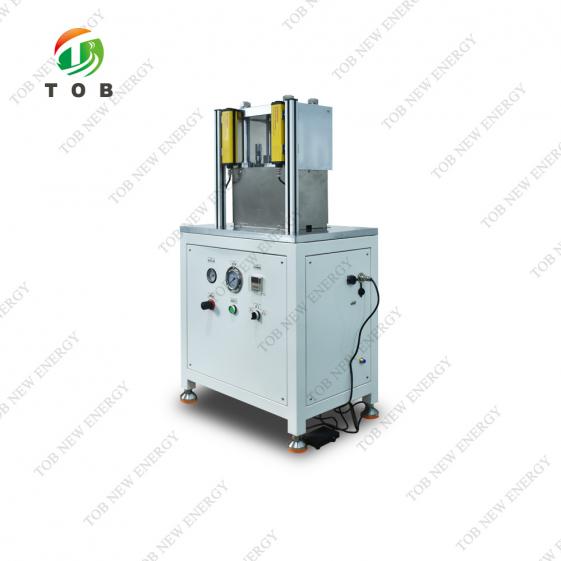

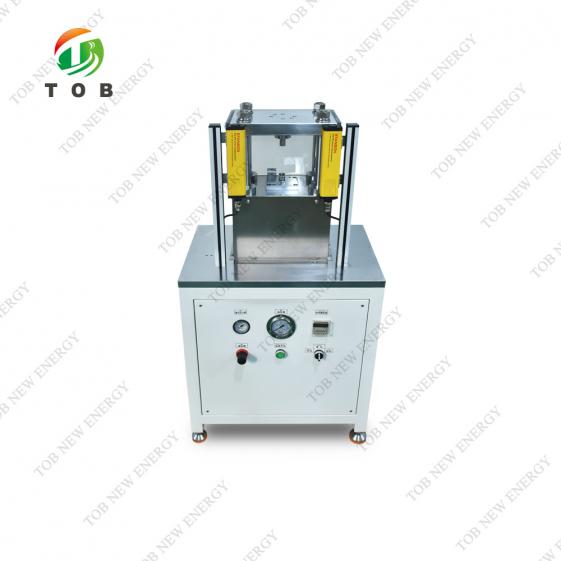

Electric Riveting Machine for Supercapacitor Caps

TOB-ERP30 electric riveting machine is suitable for riveting the upper caps, tabs and sliding wires of supercapacitors, horn-type capacitors and other battery cells.

Brand:
TOB NEW ENERGY
item no.:
TOB-ERP30
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Electric Riveting Machine for Supercapacitor Caps

SPECIFICATIONS

TOB-ERP30 electric riveting machine is suitable for riveting the upper caps, tabs and sliding wires of supercapacitors, horn-type capacitors and other battery cells.

Functional overview:

● The riveting is driven by a motor, which is convenient to operate

● Manual tightening of the hydraulic system and automatic riveting mechanism

● The riveting height is adjustable

● Upper and lower die adopts Elastic material discharge device

● The riveting height is adjustable, the appearance is exquisite and beautiful, and it is convenient to use

Model	TOB-ERP30
Power source	AC220V/50HZ/0.5KW
Work efficiency	About 10 pcs/min
Cell specification	Ф20-35mm(customized)
Mould stroke	20-40mm(customized)
Dimensions	1160(L)700(W)1750(H)mm
Weight	140kg

PRODUCT DISPLAY

Electric Riveting Machine for Supercapacitor Caps
