High Energy and High-Speed Planetary Ball Mill
Brand:
TOB NEW ENERGYitem no.:
TOB-1600-2Lorder(moq):
1Payment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMEN

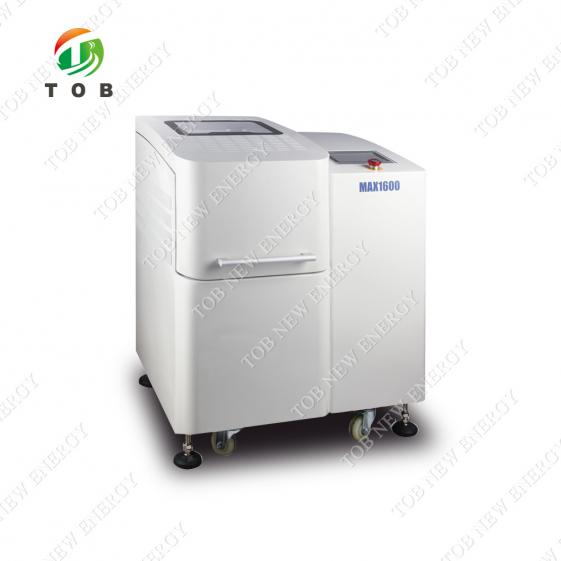

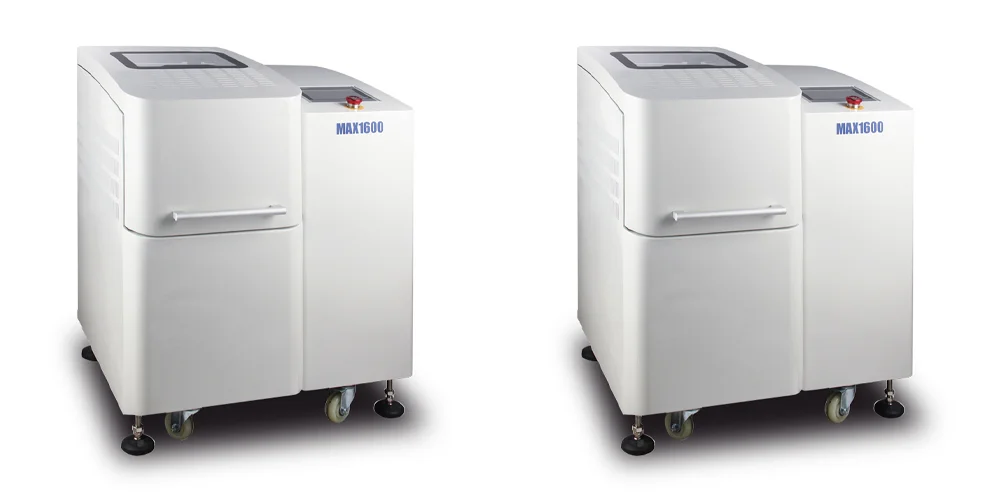

High Energy and High-Speed Planetary Ball Mill
SPECIFICATIONS
The TOB-1600-2L Ball Mill is a High Energy and High-Speed Planetary Ball Mill with a maximum rotation speed of 1600 rpm. It is specifically designed for dry and wet grinding, mixing various powder materials, and mechanical alloying of metals.
The rotation and revolution speeds of the ball mill can be independently controlled, generating sufficient high energy within the mill to grind particles down to the nanometer range. This mill is suitable for long grinding processes, making it highly attractive for research and mechanochemistry. It also features a convenient operating system and minimizes heating effects.
Application Fields
Agriculture, chemistry, synthetic materials, pharmaceuticals, geology, metallurgy , engineering electronics, construction materials, environment, resource recycling, glass, ceramics, biology, food.
Main Features
1. The rotation and revolution speeds of the jar can be adjusted independently.
2. Rotation speed: 0-1600 rpm, centrifugal acceleration: 120G.
3. Orbital speed: 0-800 rpm, centrifugal acceleration: 21G, total centrifugal acceleration: 141G.
4. Large touch screen control panel to set the program, speed and grinding time.
5. Equipped with the emitr remote control system, it can be connected with computers, mobile phones, PADs and other terminals for intelligent control.
6. Can store 3 modes and 15 programs, with power-off protection memory and self-start function.
7. Can be dry grinding, wet grinding, vacuum grinding, protective atmosphere grinding.
8. Opening safety travel switch, self-locking can card anti- loosening design, safe and stable.
9. Produced by professional German design engineers, it integrates the design concept of simplicity, beauty, environmental protection and safety.
|
Model |
TOB-1600-2L |
|
Sample characteristics |
Hard, medium-hard, soft, brittle, elastic, fibrous |
|
Processing principle |
Impact force, shear force, friction force |
|
Processing Type |
Homogenization, mechanical alloying, crushing, grinding, mixing |
|
Maximum injection size |
Brittle materials <10mm, other materials <3mm |
|
Discharge size |
~0.1um (wet grinding <1um; dry grinding <20um) |
|
Grinding jar volume |
4*(50ml/100ml/250ml/500ml) |
|
Grinding jar quantity |
2 or 4 |
|
jar material |
Stainless steel, zirconium oxide, tungsten carbide |
|
Grinding ball diameter |
5mm |
|
Dimensions (length, width, height) |
|
|
net weight |
300kg |
|
Revolution speed (r/min) |
0-800 |
|
Rotation speed (r/min) |
0-1600 |
|
Speed/speed ratio |
1 : 2 |
|
Power (Kw) |
6KW |
|
Power supply (v/Hz) |
AC220v, 50/60Hz |
PRODUCT DISPLAY

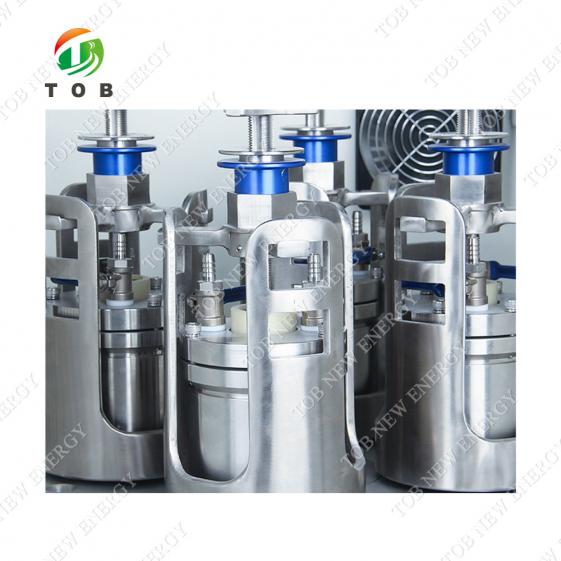

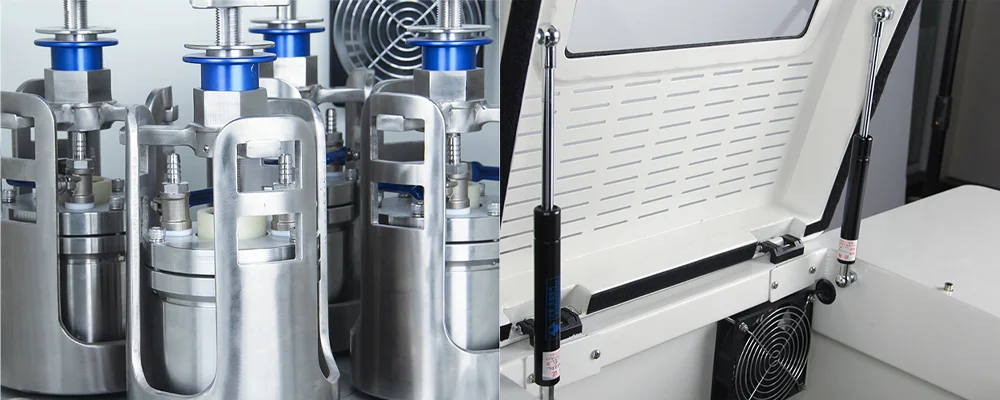

Four-jar Grinding (Four jars can be filled with four different materials for grinding respectively, and 4 kinds of materials can be produced.)

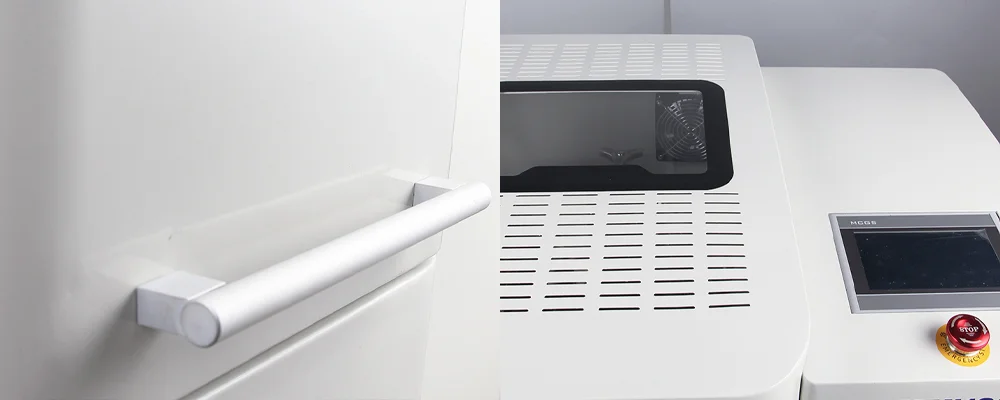

Visual Window (High-transparency acrylic board is adopted, allowing you to clearly observe the internal operation of the machine through the window, and the internal operation is clear at a glance.)

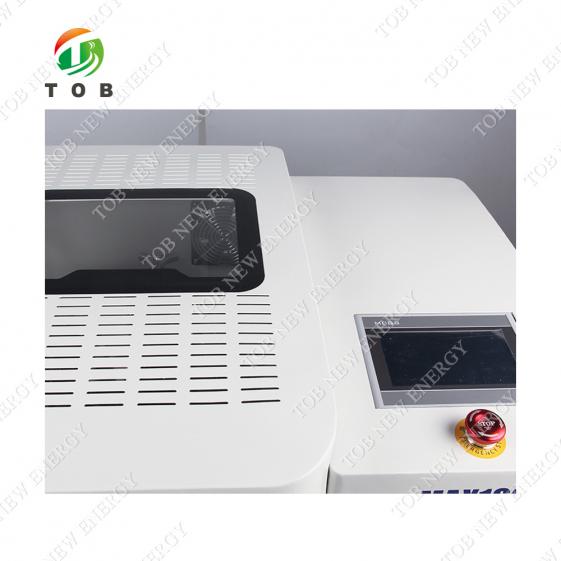

Control Panel (The panel has functions of adjusting speed, grinding schemes, starting, stopping and emergency stop, and can be adjusted according to your experimental requirements.)
More Ball Mill Balls and Ball Mill Jars
More ball mill for lithium ion battery materials preparation.
