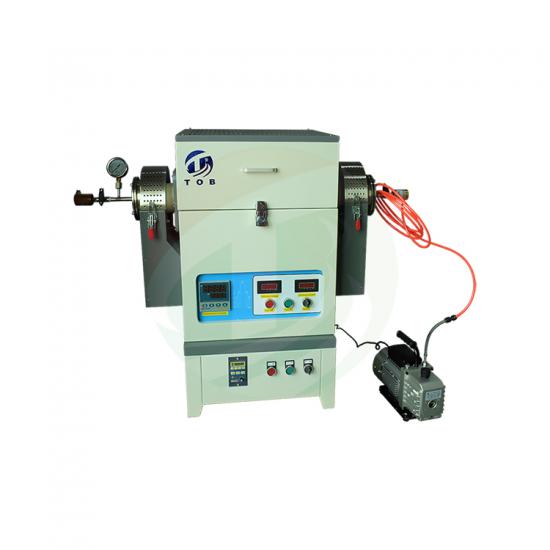

High Temperature Tilting Rotary Tube Furnace

Model

TOB-GH1200-100

Dimensions

1200mm*500mm*800mm(L*W*H)

Heating power

3KW

Furnace tilt

45°

Heating element

High-quality alloy resistance wire

Heating tube material

1400 # High purity corundum tube

Tube purity

95%

Heating tube total length

800mm

Furnace tube diameter

OD100mm,ID about 90mm

Length of heating zone

300mm

Length of constant temperature zone

150mm

Maximum temperature

1200℃

Working temperature

＜1100℃

Temperature control mode

It adopts a full-automatic control system, from room temperature to the set temperature, and can run automatically after setting the program. The system is controlled by thyristor control, transformer voltage regulation, temperature control system modular design, simple structure and convenient maintenance. Using Yudian instruments, imported thyristor control, transformer voltage regulation, programmable 31 segments, multi-stage power limit function, multiple sets of PID parameter auto-tuning functions, freely setting constant temperature and insulation curves, manual / automatic interference-free switching , Over temperature alarm function, the meter has temperature correction and compensation functions.

Constant temperature accuracy

±1℃

Heating rate

≤15℃

Recommended heating rate

≤3-5℃

Main drive power：

120W

Power supply：

AC220V /50HZ/60HZ

Furnace tube speed

0～30r/min（adjustable）

Vacuum degree

200pa-2000pa

Input gas

Various protective gases such as nitrogen and argon

Flow control

Float meter （Optional）

Digital display

Measure temperature, set temperature, dual display

Control features

The modular structure of the control system, the long life design of key components of the equipment, simple and reliable technology, good stability and high accuracy.

Air cooling system

The Fuji fan impeller is installed directly at the bottom of the double-layer furnace shell and is assembled with the control system. When the sintering furnace is heated, it is air-cooled, and the air-cooled motor is started. The airflow blows from the fan at high speed to the furnace bladder. The interlayer of the furnace shell can be used to further cool the circulating convection gas to accelerate the cooling rate of the furnace body. The low surface temperature of the furnace shell protects the safety of the operator's operability and improves the effectiveness.

Heating element

Using high-quality alloy resistance wire,(The surface is coated with zirconia, which can prolong the service life of the instrument to the greatest extent, and the surface temperature is within 50 ℃.)

Heating element installation position and method

Installed in the lower and upper part of the furnace

Refractory

The furnace lining is made of ceramic fiber board, and the insulation material is made of vacuum formed fiber poly light board material.

High use temperature, low heat storage, rapid heat and cold resistance, no cracks, no slag drop, good heat preservation performance (energy-saving effect is more than 80% of the old electric furnace). Patented dual-chamber structure, which has the advantages of fast heating, strong and durable, and does not collapse after long-term use

Insulation Materials

High-quality alumina multi-fiber insulation material, the insulation layer is 90mm. (Model: LY1400)

Shell

The furnace shell is welded by steel plates and profiles, and the shell is equipped with a removable protective plate. The protective plate is electrostatic sprayed and painted. Fine workmanship, beautiful appearance.

Structural features

The furnace body heats up and down, heating elements, thermocouples, and controllers. In order to prevent heat loss in the form of heat radiation, a stepped opening and closing seal is used.

Energy saving performance

Light weight, fast heating, energy saving over 50%, saving time and effort.

Spare parts

A stove hook, a pair of high temperature gloves
