China Leading Horizontal Computer Control Power Battery Crush Testing Machine Manufacturer
加载中...

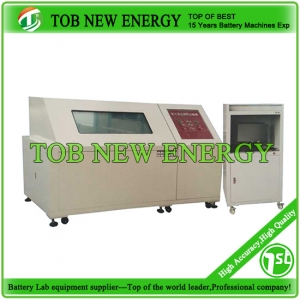

Horizontal Computer Control Power Battery Crush Testing Machine

  • item no.:

    TOB-BE-AP-6045
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

Horizontal Computer Control Power Battery Crush Testing Machine


SPECIFICATIONS

1.Technical requirements

Model

Horizontal Computer Control Power Battery Crush Testing Machine

 TOB-BE-AP-6045

Source voltage

3∮5W  380V 50HZ 5000W

Dimension(W*D*H)

2500W*1000D*1000H MM

Weight

1500kg

Max pressure

10t,20t, 50t,80t

Battery size

500W*500D*500H MM,Customized 1000*1000*1000 or bigger

Force error

±1%

Drive mode

Electro-hydraulic servo drive

Extrusion speed

0.1~500MM/S(Adjustable)

Unit Conversion

kgf,lbf,N,KN,Kpa,Mpa

Stroke Resolution

0.005mm

Data collection frequency

200times/S

Signal transmission mode

RS 232 or USB

Test hole

On the left,50mm diameter hole attached a stainless

steel lid

Visual window

Double-proof glass800*300MM and affixed with

explosion-proof film, and with steel mesh


2.Standard configuration

Host

1set

Brand computer

1set

Color Inkjet Printer

1set

Surveillance camera system

1set

Voltage acquisition system

1set

8 channels temperature acquisition system

1set

Special - shaped extrusion plate

1set

Round-shaped extrusion plate

1set

Operating Instructions

1set

Factory inspection report

1set




 Email : tob.amy@tobmachine.com

 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609
