Lithium Battery Winding Machine

According to the operation mode of the machine, the winding machine can be divided into: manual winding machine, semi-automatic winding machine, automatic winding machine.

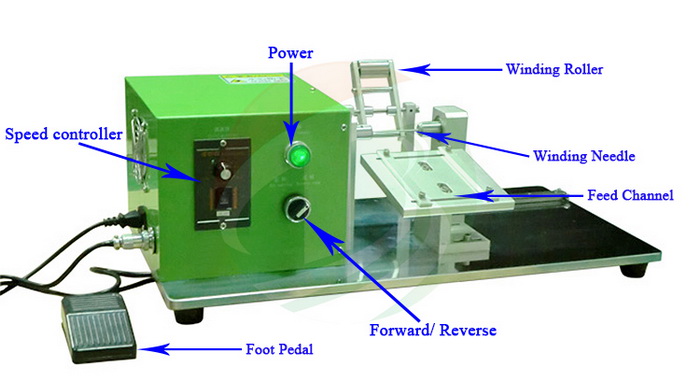

Manual winding machine

Manual winding machine is mainly used for laboratory research.It has the following characteristics,easy to operate,have little debug time,and have a cheap price.

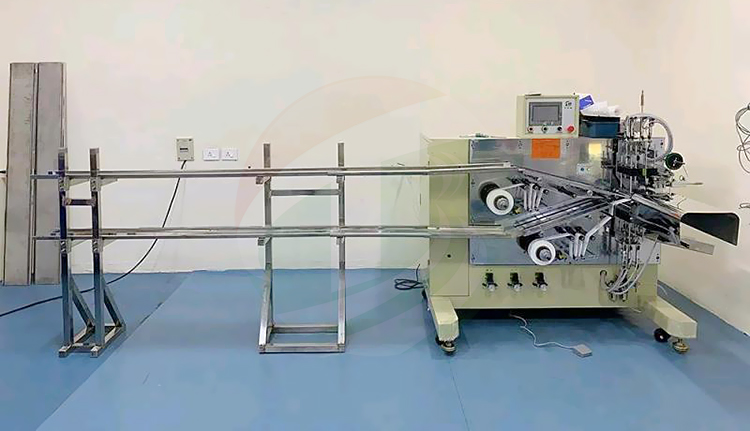

Semi-auto winding machine

This Battery Semi-auto winding machine is used for semi-automatic winding of lithium ion battery cells; suitable for oily electrode, water-based electrode and various separator;

6 characteristics of the equipment

1. Manual loading of electrode, automatic winding, automatic needle change, automatic glue termination tape and automatic discharge;

2. Convenient adjustment of electrode and separator tension;

3. The tension of the electrode and separator is constant, the consistency of the cell is good, and a vacuum suction device is also provided.

4. The equipment is easy to operate and the training time for workers is short;

5. The equipment debugging time is short, the material is saved, and the type adjustment is convenient;

6. Low equipment failure rate and easy maintenance;

Automatic winding machine

Suitable for automatic winding of round power lithium battery cells.

1. Adopt AC servo motor drive, tension control unwinding, adjustable tension.

2. Unwinding and winding are equipped with correcting device.

3. There is a magnetic cleaning device for the electrode, a static electricity removal device, a dust brushing device, a dust suction device and recycling.

4. Automatic correction, linear guidance and positioning before the electrode is fed into the chuck to ensure the winding quality.

5. The first cathode or anode electrode can be adjusted.

6. It has two methods: separator outer packaging and electrode outer packaging.

7. The detection device monitors the working operation status, if there is any abnormality, it will automatically alarm and shut down.

8. PLC control system, touch screen display, easy to set up and operate.

9. Automatic delivery of finished products with reasonable structure.
