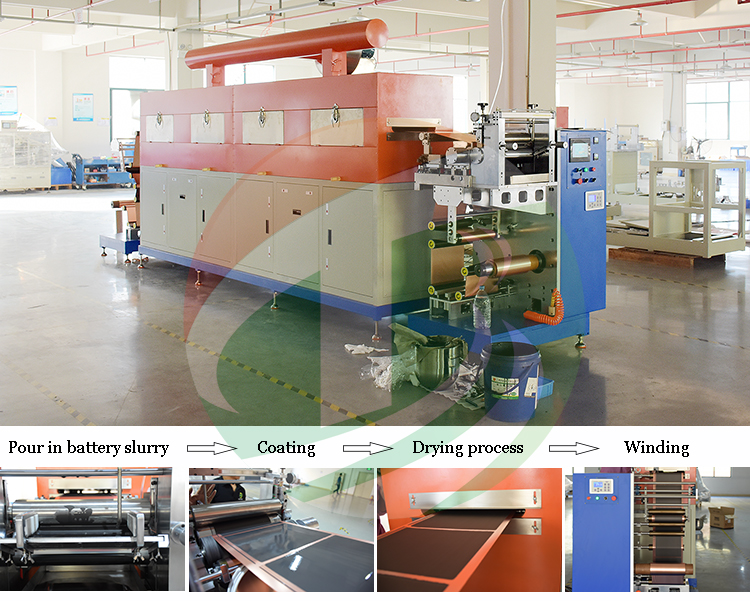

TOB-ZST- 300-12M transfer interval coating machine, the coating thickness is easy to adjust,more accuracy,easy to operate.it can do both continuous coating and interval coating.
Mainly used for lithium-ion battery LiFePO, lithium cobalt oxide,Lithium manganese oxide system and coating process of battery anode and cathode.
The design of the roll surface width: 300mm
Guaranteed coating width: 50~280mm
Mechanical running speed of equipment: 7m/min
Coating speed: 1-7m/min (Depending on the drying condition)
Suitable for slurry viscosity: 2000~16000 Cps
Single coating thickness range: 50-150μm
Minimum interval length: 5mm
Multi section minimum coating length: 20mm
Oven length: 12m
XIAMEN TOB NEW ENERGY is a technology company focused on the lithium battery equipment research and development and material improvement.We can provide high-quality products and the most professional technical services. We are looking forward to cooperate with you !
If you are interesting in this, please contact me freely:
Contacts: Miss Carol (Sales & Engineer)
E-mail: tob.mae@tobmachine.com
Skype: 583432443@qq.com
