coin cell crimper

Pneumatic Coin Cell Crimper

TOB-QD-150coin cell crimperis a newly designed coin cell sealing machine with lighter weight.It’s mainly used for coin cell battery material lab researching.

  • item no.:

    TOB-QD-150

  • order(moq):

    1set

  • Payment:

    L/C,T/T,Western Union, Paypal

  • product origin:

    China

  • shipping port:

    XIAMEN

  • Lead Time:

    7days
inquiry now
Product Detail

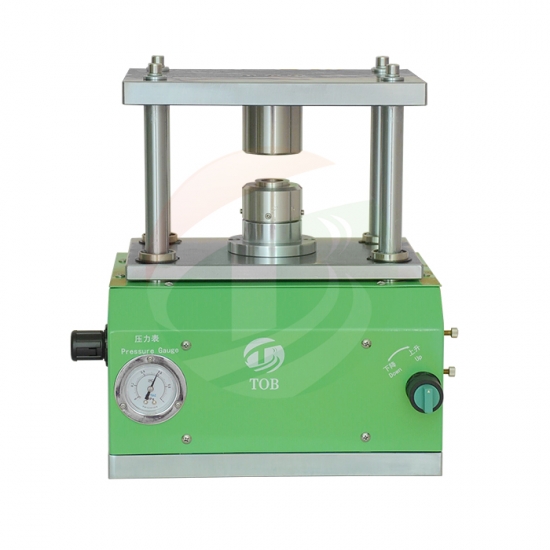

Pneumatic Coin Cell Crimper



SPECIFICATIONS


1. TOB-QD-150 coin cell crimper is a newly designed coin-cell sealing machine with lighter weight. It’s mainly used for coin cell battery material lab researching,

Capacitor sealing research,also be used in small batch trial production in factories.

equipped with different die,also used for disassemble battery,press electrode sheet,press battery powder,etc.

2. The crimper is suitable for sealing various types of CR20XX coin cells such as CR2032,CR2025,and CR2016 with adjust the sealing line and without changing the die.It can also crimp CR16XX, CR24XX, CR30XX and other special size cases with optional die sets.

3. In addition, customers can easily replace the original die for disassembling purpose.

4. It can also be worked in glove box with smaller volume.


Machine Model

Pneumatic Coin Cell Crimping Machine TOB-BQ-150

Gas source

0.6 0. 8mpa argon, nitrogen cylinders, or compressed air(Not suggest to use compressed air in glove box)

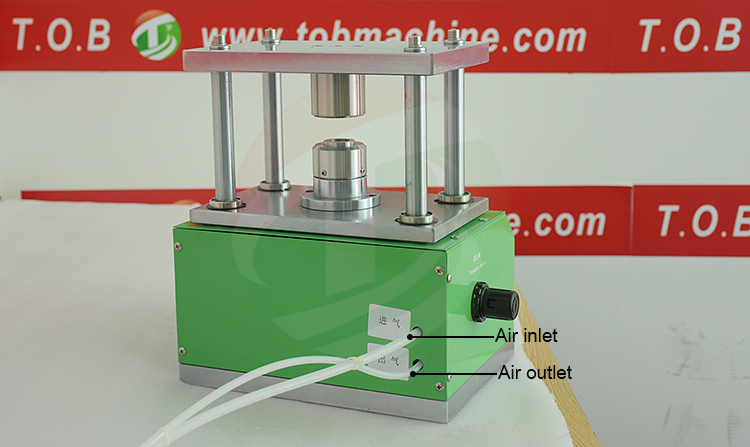

Exhaust design

Specially designed exhaust port, can external via connected by kf40 and other devices

Gas consumption

The gas consumption of single seal is about 480 ml

Crimping pressure

Manual control valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5%

Crimping stroke

30mm

Crimping die

Standard crimping die is CR20xx, with optional die sets

Disassembling die

Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.

Machine size

L290mm*W205mm*H330mm

N.W

25Kg

Structural material

High strength chromium steel, the surface after environmental plating and spray treatment will never rust.

Remark

With the function of preventing  short circuit of battery crimping


PRODUCT DISPLAY


coin cell crimperCoin Cell CrimperHydraulic coin cell crimping machineHydraulic coin cell crimper machine



Crimping die for CR1016 coin cell


We provide CR1016 coin cell case

CR1016 coin cell case
