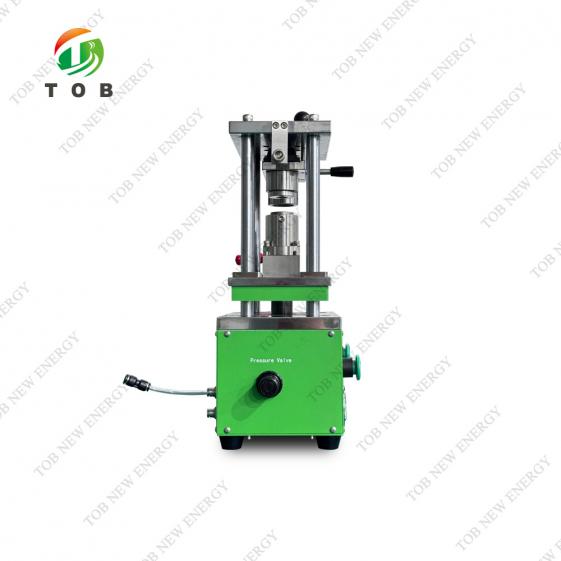

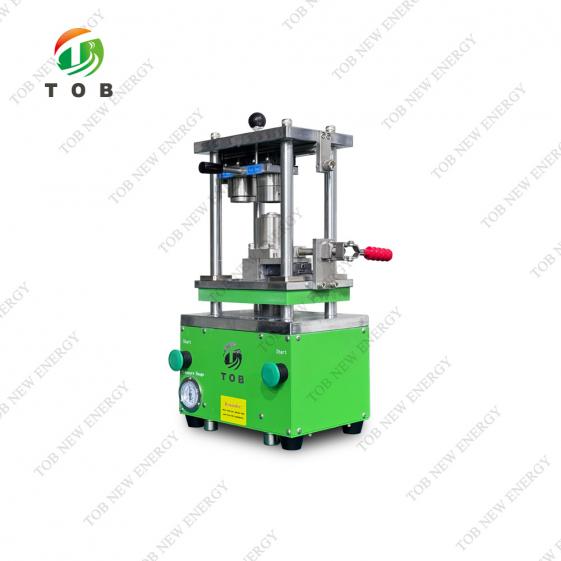

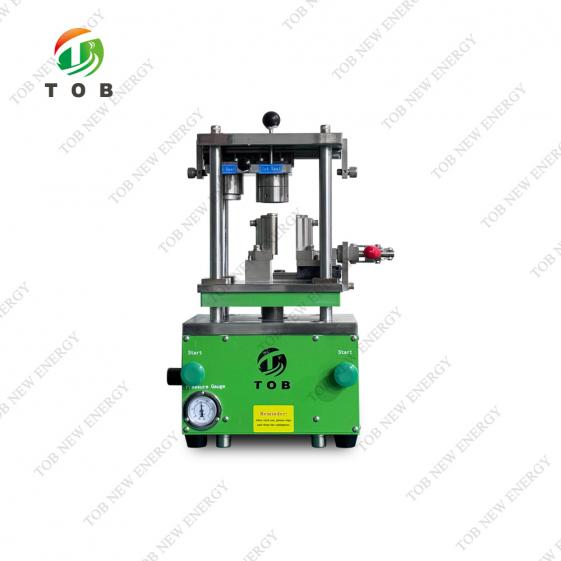

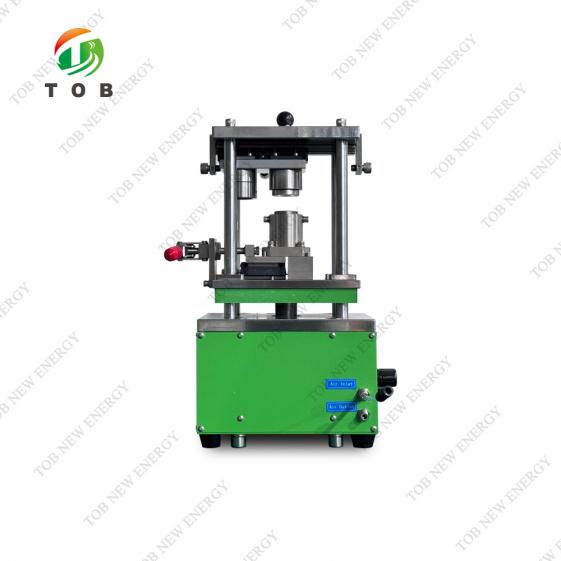

Pneumatic Cylindrical Battery Sealing Machine

TOB-QF650 pneumatic sealing machine mainly used for the sample of lab battery materials’ research, which to make cylindrical battery. The research sealing of cylindrical capacitor can also be used in small batch trial production in factory.

  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-QF650
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union/Paypal/credit card
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7-15
Product Detail

Pneumatic Cylindrical Battery Sealing Machine (Optional:32650, 26650, 18650, CR123, AA, AAA etc)


SPECIFICATIONS



1. Product introduction

1.1TOB-QF650pneumatic sealing machine mainly used for the sample of lab battery materials’ research, which to make cylindrical battery. The research sealing of cylindrical capacitor can also be used in small batch trial production in factory.

1.2Included Mould: Standard 18650 Cylindrical battery sealing mould(1 set, 2 sealing). You can also choose other Cylindrical battery sealing mould.

2.Main features:

2.1Totally operated by pneumatic. Without any electricity. Very easy to use.

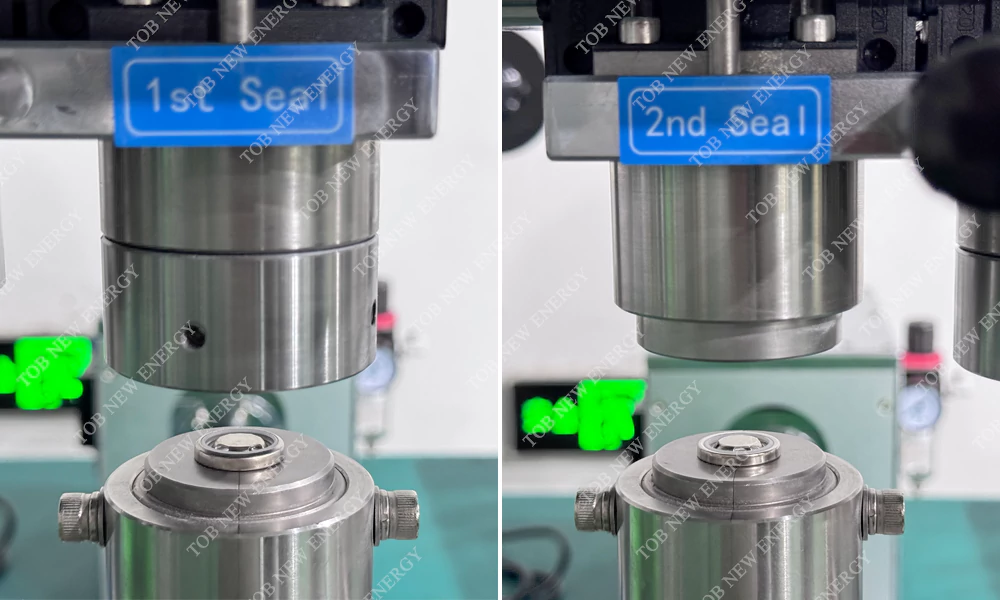

2.2Two steps for sealing which make better sealing.

2.3 Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.

2.4 Good looking appearance, Simple maintenance, Small size, easy operater and accurate molding.

2.5 Gas supply by compressed air or Inert gas cylinder. External connection of the compressed gas make sure the balance of the atmosphere in the glove box.

2.6Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.


Model

TOB-QF650 Cylindrical battery sealing machine

Warranty

One Year limited warranty with lifetime support

Gas source

0.6 ~ 0.8MPa argon, nitrogen cylinders, or compressed air (compressed air is not recommended in the glove box)

Exhaust gas design

specially designed exhaust ports, which can be externally connected through devices such as KF40

Gas consumption

480ml for single seal

Sealing pressure

manual control valve control, maximum pressure 1 MPA, recommended use pressure 0.7 MPa, accuracy ±0.5%

Sealing trip

30 mm

Sealing dies

Standard 18650 series package dies, it can be selected or matched with other specifications

Dimension

L290mm*W205mm*H330mm

Weight

35Kg

Structural material

1.With the function of preventing the short circuit of the battery seal.

2.high strength chromium steel, the surface after environmental plating and spray treatment will never rust.


Product Display

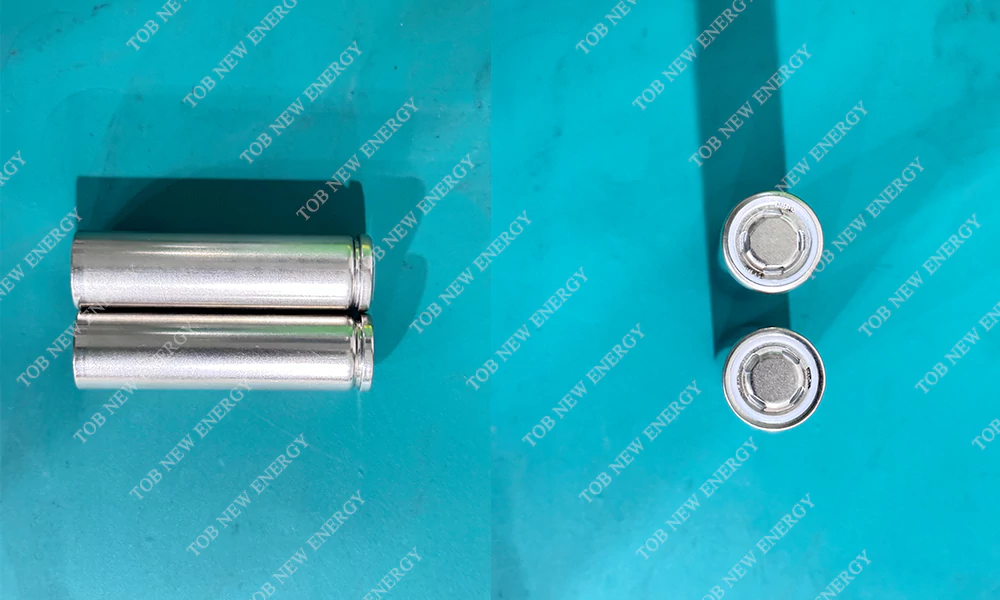

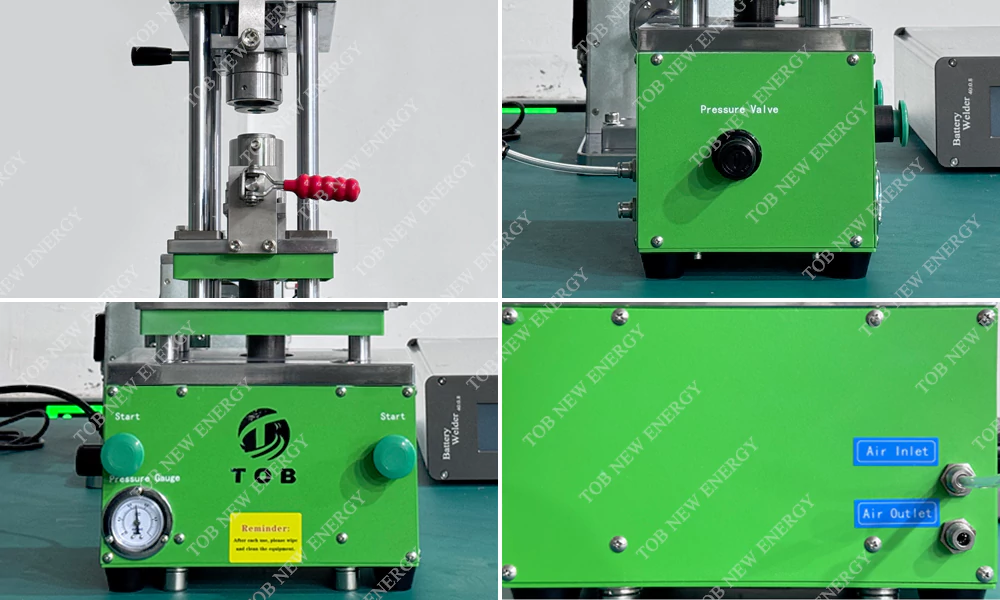

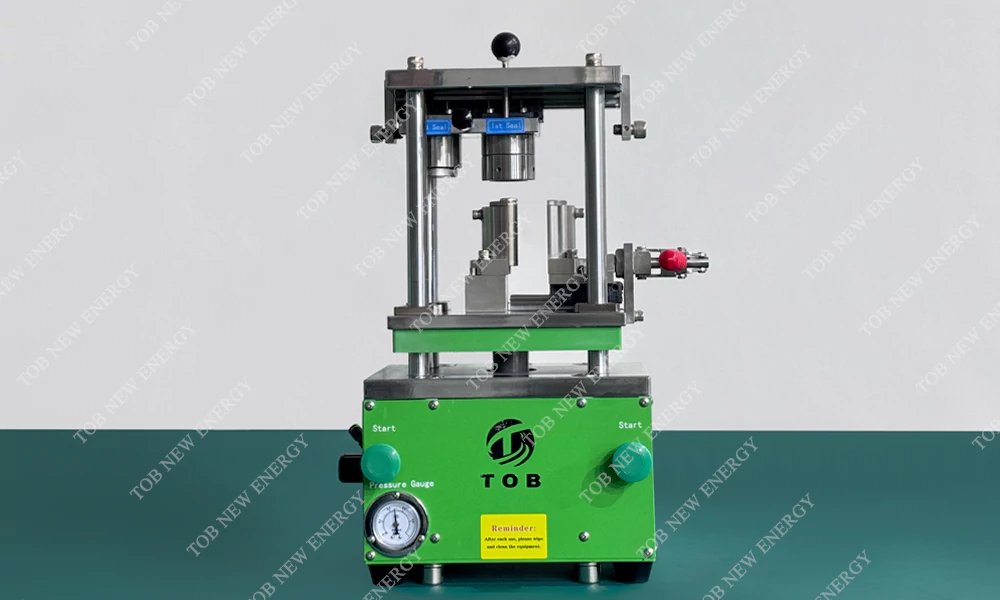

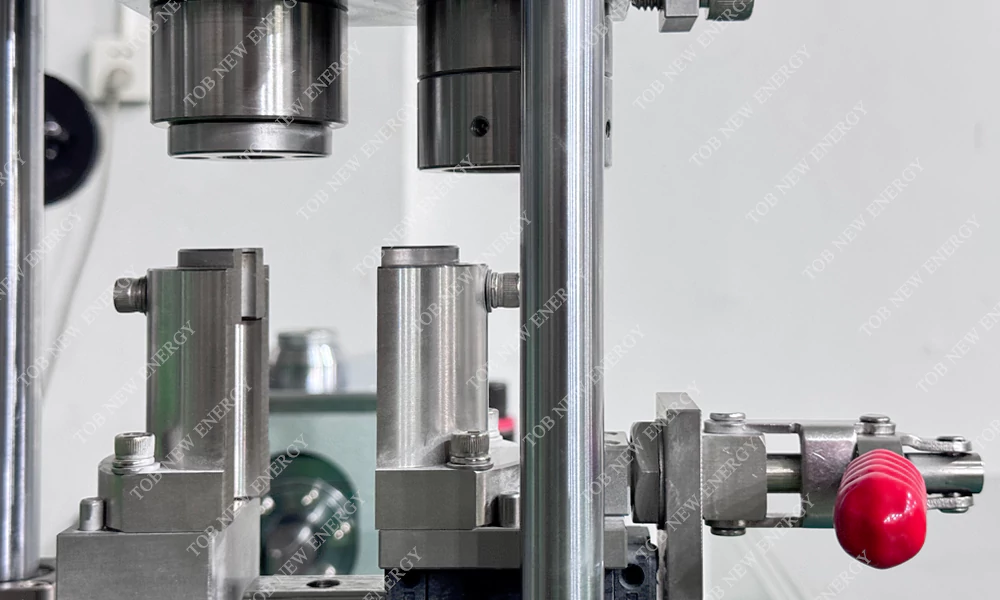

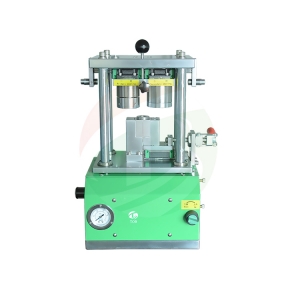

battery sealing machine

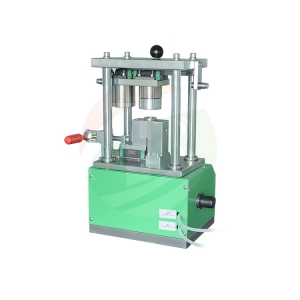

cylindrical battery sealer tool
