10 Channels Sorter Automatic Battery Sorting Machine

This 10 channels automatic battery sorting machine is suitable for 18650, 21700, 26650, 32650.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-FX-10-T
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

10 Channels Automatic Battery Sorting Machine for 18650, 21700, 26650, 32700



SPECIFICATIONS


The 10 channels battery sorting machine is used for automatic sorting of battery by voltage and internal resistance with a voltage internal resistance tester. According to the setting of the host computer software, the grade of each battery cell is calculated, and the batteries of different grades are transferred to different channels according to the judgment result, so as to realize the automatic sorting of battery products.

The automatic sorting equipment consists of a feeding mechanism, a testing mechanism, an automatic sorting, and a receiving mechanism.

The machine system designs and develops the software of the upper computer according to the user's requirements, and automatically sorts and collects the battery cells into the corresponding receivers according to the group information.

This automatic sorting machine consists of automatic feeder, test, automatic sorting and collector. Manually put the integrated battery into the cache area of the automatic feeder, the automatic feeder will send the batteries to the test area one by one, after the test is finished, the pushing cylinder will send the batteries to the sorting cylinder, the sorting cylinder will put different batteries into the corresponding grade.



Equipment operating environment requirements

Model

TOB-FX-10-T

Voltage supply

AC220V±10% 50Hz
Power ≤1000W

Air Pressure

0.5-0.7Mpa

Operating temperature range

0℃-40℃. The best use temperature is 23℃+5℃.

Humidity

≤85%

Size

L1370*W780*H1450mm

Weight

About 260kg

Working room

No pollution and strong electromagnetic interference

System technical specifications

Damage probability

≤0.05%

NG equipment failure rate

≤ 1% (faults caused by equipment only)

Suitable battery model

18650/21700/26650/26700/32700 battery voltage and resistance sorting ( 32700 needs to change the fixture, other size cell sorting no need to change the fixture, and 32700 fixture the equipment is equipped!)

Number of sorting channels

10 channels

Equipment speed

≥ 4800pcs /H

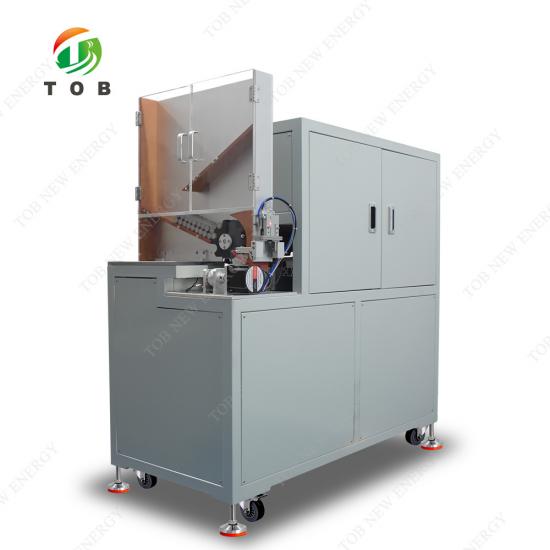

PRODUCT DISPLAY


Overall dimensions: (approx.) length: 1370mm; width: 780mm; height: 1450mm

Battery Sorting Machine

Battery Sorting Machine
