Brand:
TOB NEW ENERGYitem no.:
TOB-4340-5order(moq):
1Payment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMEN15A Pouch Cell Test Fixture
SPECIFICATIONS
Ensure consistent, accurate, and repeatable testing of pouch cell batteries with our high-performance Split-Type Pouch Cell Test Fixture, Model TOB-4340-5. Engineered to meet the demanding requirements of battery R&D, quality control, and production environments, this fixture delivers exceptional electrical and mechanical performance across a wide operational range.
| Model | TOB-4340-5 |
| Executive standard | SC/QS-A-2008 |

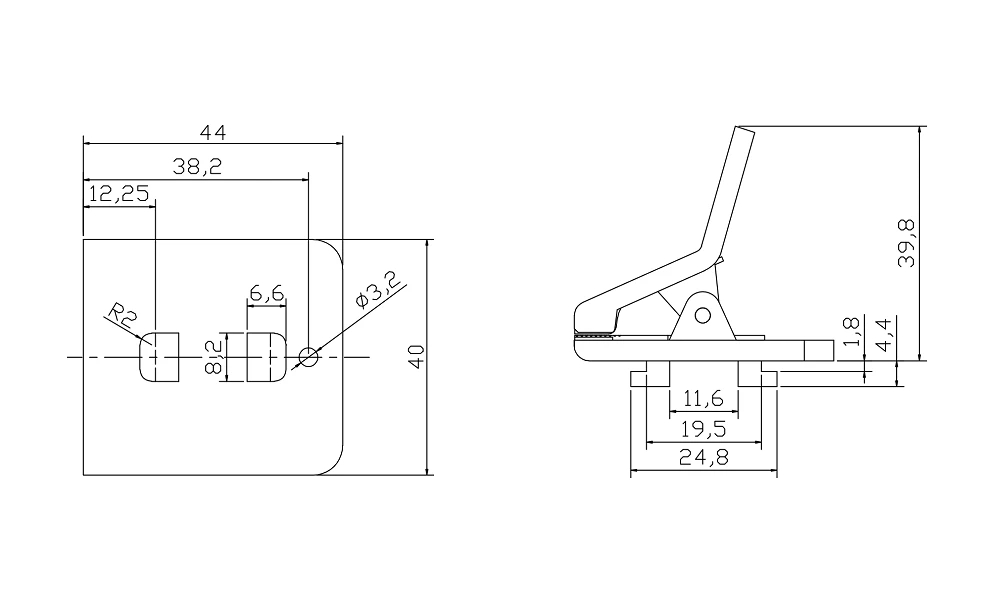

| Dimension | see below drawing |
| Working temperature | -55℃ to 125℃ |
| Base material | Polysulfone, brass, stainless steel |
| Nickel coated | Ni(3-5um) |
| Contact resistance | ≤1mΩ |
| Insulation resistance | 500VDC≥1*109 Ω |
| Current | ≤15A， Voltage: ≤500V |
| Humidity | ≤90% |
| Clamping force | 10N |
| Mechanical life | ≥30000 times |
| Unit | mm, tolerance±0.05mm |

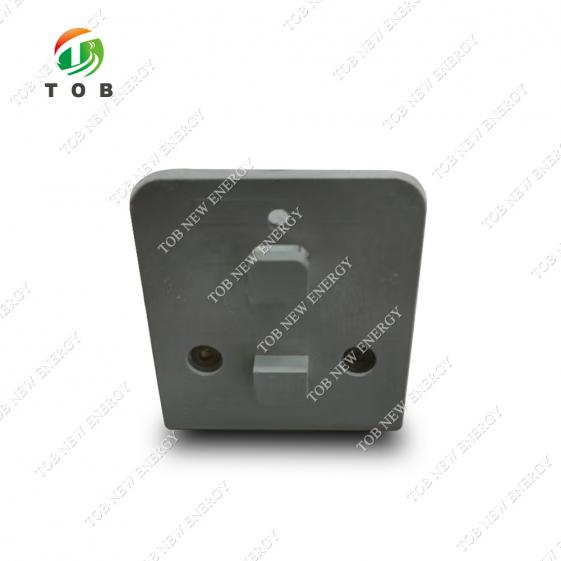

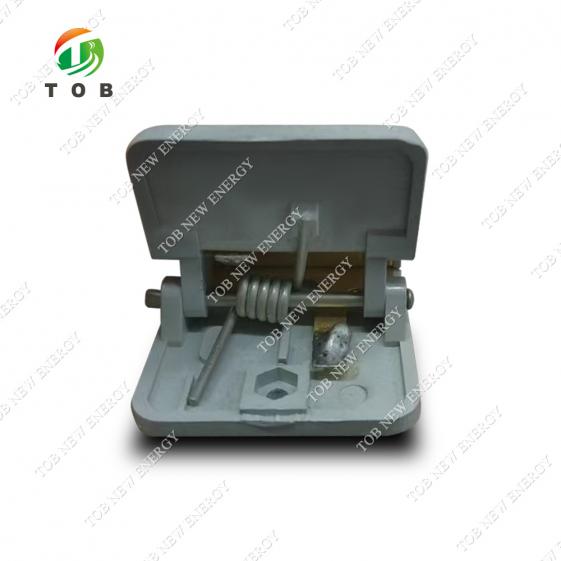

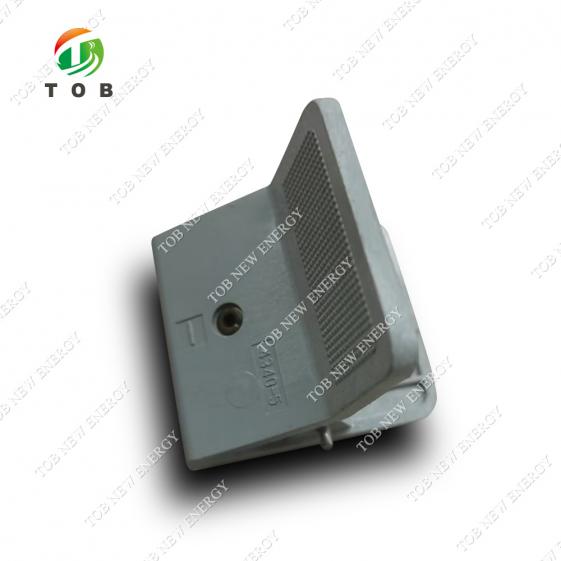

PRODUCT DISPLAY
