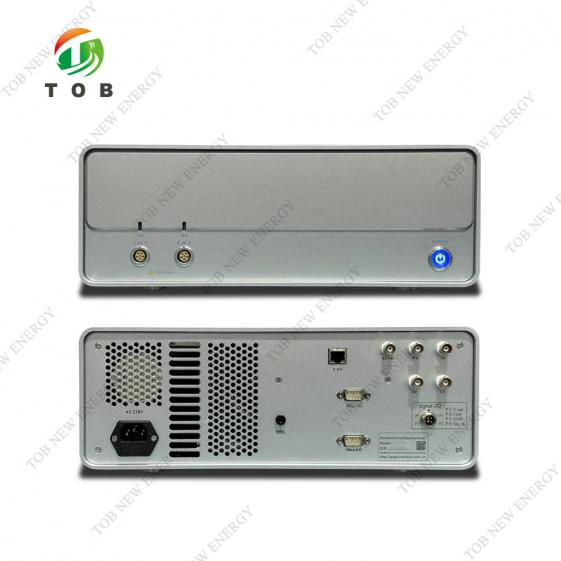

2 Channel Bipotentiostat

TOB-CS-2350 bipotentiostat is developed from single channel TOB-CS-350 potentiostat/galvanostat. There are two s ets of built-in potentiostat /galvanostat. The two channels can conduct same or different experiments ind ependently/simultaneously.

Brand:
TOB NEW ENERGY
item no.:
TOB-CS-2350
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

2 Channel Bipotentiostat Galvanostat Electrochemical Workstation

SPECIFICATIONS

TOB-CS-2350 bipotentiostat is developed from single channelTOB-CS-350 potentiostat/galvanostat. There are two s ets of built-in potentiostat /galvanostat. The two channels can conduct same or different experiments ind ependently/simultaneously.

If the user only chooses to use the main channel, thenTOB-CS-2350 turns to be aTOB-CS-350. Apart from all functi ons thatTOB-CS-350 single-channel potentiostat has,TOB-CS-2350 can especially be used to do RRDE and HDT.

Applications

( 1) Electrosythesis, electrodeposition (electroplating), anodic oxidation, electrolysis

(2) Oxygen reduction reaction(ORR), oxygen evolution reaction (OER), Hydrogen evolution reaction(HE R), carbon dioxide reduction.

(3) Energy and materials (Li-ion battery, solar cell, fuel cell, supercapacitor), advanced function materials, and sensor.

(4) Corrosion behavior of metals, and anti-corrosion evaluation

(5) Fast evaluation of inhibitor, water quality stabilizer, coating, and cathodic protection efficiency.

Rotating ring-disk electrode(RRDE)

Oxidation/reduction reaction system: while measuring the polarization curve of disk electrode, keep the ri ng electrode at a fixed polarization potential, and thus detect the intermediates of reaction on the disk ele ctrode. It becomes the typical fluid dynamics method that detects reaction intermediates and studies elec trode reaction mechanism

Hydrogen diffusion test(HDT)

Two potentiostats are combined with Devnathan-Stachurski (dual cell). By measuring cathode hydrogen charging (the left cell) and anode oxidation current of hydrogen atoms (the right cell), it can further calcul ate the diffusion coefficient of hydrogen atoms in the metal and hydrogen flux.

Potential control range	Main Channel: ± 10V
Potential control range	Slave Channel: ± 10V
Current control range	± 1A
Potential control accuracy	0. 1% ×full range±1mV
Current control accuracy	0. 1% ×full range
Potential resolution	10μV (>100Hz), 3 μV (<10Hz)
Current sensitivity	1pA
Rise time	< 1 μs (<10mA), < 10μs (<2A)
Reference electrode input impedance	1012Ω\|\|20pF
Current range	2A~2nA, 10 ranges
Compliance voltage	±21V
Maximum current output	1A
CV and LSV scan rate	0.001mV~ 10,000V/s
CA and CC pulse width	0.0001~65,000s
Current increment during scan	1mA@1A/ms
Potential increment during scan	0.076mV@ 1V/ms
SWV frequency	0.001~ 100 kHz
DPV and NPV pulse width	0.0001~ 1000s
AD data acquisition	16bit@1 MHz,20bit@1 kHz
DA Resolution	16bit, setup time：1 μs
Minimum potential increment in CV	0.075mV
IMP frequency	10μ Hz~ 1MHz
Low-pass filters	Covering 8-decade
Potential and current range	Automatic
Electrochemical impedance Spectroscopy(EIS)
Signal generator
Frequency range	10μ Hz~ 1MHz
AC amplitude	0mV~2500mV
DC Bias	-10V ~ +10V
Output impedance	50Ω
Waveform	sine wave, triangular wave and square wave
Wave distortion	< 1%
Scanning mode	Logarithmic/linear, increase/decrease
Maximum load capacitance	1nF ；Maximum load inductance：10μ H
Signal analyzer
Integral time	10ms or the longest time of a cycle
Maximum	106 cycles or 105s
Measurement delay	0~ 105s
DC offset compensation
Potential automatic compensation range	-10V ~ +10V
Current compensation range	- 1A~+ 1A
Bandwidth	8-decade frequency range, Automatic and manual setting
PC and O/S requirement
Communications Interface	isolated Universal Serial Bus (USB 2.0)
Operating System	Windows 2000/NT/XP/7/8/ 10

PRODUCT DISPLAY

Electrochemical Workstation

Bipotentiostat

This is the single channel electrochemical workstation, click for more information

Email: tob.amy@tobmachine.com

Skype:amywangbest86

Whatsapp/Phone number:+86 181 2071 5609
