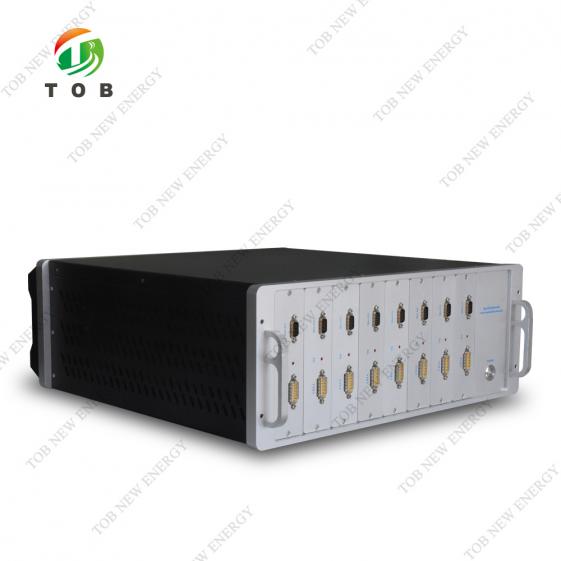

TOB-CS-3 Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.
High current/voltage: Applied potential range ±10V, current ±1A.
Comprehensive techniques: Built-in EIS (10μHz~1MHz) is equipped.
Brand:
TOB NEW ENERGYitem no.:
TOB-CS-3order(moq):
1setPayment:
L/C,T/Tproduct origin:
Chinashipping port:
XIAMENMultichannel Potentiostat Galvanostat Electrochemical Workstation
SPECIFICATIONS
Feature
- Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.
- Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
- Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.
- Number of channels can be customized. Different configuration ensures you get desired product suiting to various budgets.
- The number of channel is expandable by adding and installing more boards, thanks to the intelligent chassis and plug-in design. Each channel potential control range is10V, current control range ±1A, can meet experiment requirement for most people.
Application
- Reaction mechanism of Electrosynthesis, electrodeposition (electroplating), anodic oxidation.
- Electrochemical analysis, electro-catalysis, sensor.
- New energy materials, advanced functional materials, photoelectronic materials.
- Corrosion study of metals in water, concrete and soil etc.
- Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.
After-sales Service
- Warranty period: 5 years.
- Provide manual, software installation video & training videos.
- Free repair service
- Lifetime software upgrading and technical service.
|
Specifications |
|
|
Number of channels: 4~8 |
Channel insulation resistance: >100MΩ |
|
Communication: Ethernet |
Lower-pass filter: covering 8-decade |
|
Potential control range: ±10V |
Constant current control range: ±1A |
|
Potential accuracy: 0.1%×full range±1mV |
Current accuracy: 0.1%×full range |
|
Potential resolution:10μV(>100Hz), 3μV(<10Hz) |
Current resolution: 1pA |
|
Potential rise time:﹤1μs(<10mA),<10μs(<2A) |
Current range: 2nA ~2A, 10 ranges |
|
Reference electrode input impedance: 1012Ω||20pF |
Maximum current output: 1A |
|
Compliance voltage: ±21V |
Current increment during scan: 1mA @1A/ms |
|
CV and LSV scan rate: 0.001mV~10000V/s |
Potential increment during scan: 0.076mV@1V/ms |
|
CA and CC pulse width: 0.0001~65000s |
DPV and NPV pulse width: 0.0001~1000s |
|
SWV frequency:0.001~100KHz |
CV minimum potential increment: 0.075mV |
|
AD data acquisition:16bit@1MHz,20bit @1kHz |
IMP frequency:10μHz~1MHz |
|
DA resolution:16bit, setup time:1μs |
Current and potential range: automatic |
|
Operating System requirements: Windows 7/8/10 /11 |
Weight: 12.5 Kg Dimensions: 40*40*14cm |
|
Electrochemical Impedance Spectroscopy (EIS) |
|
|
Signal generator |
|
|
Frequency range: 10μHz~1MHz |
AC signal amplitude: 1mV~2500mV |
|
Frequency accuracy: 0.005% |
Signal resolution: 0.1mV RMS |
|
DDS output impedance: 50Ω |
DC Bias: -10V~+10V |
|
Wave distortion: <1% |
Waveform: sine wave, triangular wave, square wave |
|
Scan mode: Logarithmic/linear, increase/decrease |
|
|
Signal analyzer |
|
|
Maximum integral time:106cycles or 105s |
Measurement delay:0～105S |
|
Minimum integral time:10ms or the longest time of a cycle |
|
|
DC offset compensation |
|
|
Potential compensation range: -10V~+10V |
Current compensation range: -1A~+1A |
|
Bandwidth adjustment: automatic and manual, 8-decade frequency range |
|
Advantages
- High current/voltage: Applied potential range ±10V, current ±1A. It can meet the needs of most studies. Comprehensive techniques: Built-in EIS (10μHz~1MHz) is equipped. There are comprehensive techniques in each channel.
- Warranty: 5 years warranty. We're the manufacturer, and our engineers will provide technical support anytime you need.
- Low cost: The price includes instrument host, software (experiment control & data processing), necessary cables, dummy cell. No other charges.
- Reliability &quality: We've been in the market for 20 years, and now is the No. 1 brand of potentiostat product in China
|
Model |
CS3008 |
CS3108 |
CS3004 |
CS3104 |
|
Number of channels |
8 |
8 |
4 |
4 |
|
EIS(10μHz~1MHz) |
Every channel has EIS（EIS*8） |
Only one channel has EIS（EIS*1） |
Every channel has EIS（EIS*4） |
Only one channel has EIS（EIS*1） |
Simultaneous Measurements
You can run a same experiment for each channel at the same time. Set the same parameters for each experiment once and run all independently. It's especially useful when you have many samples for one single test.

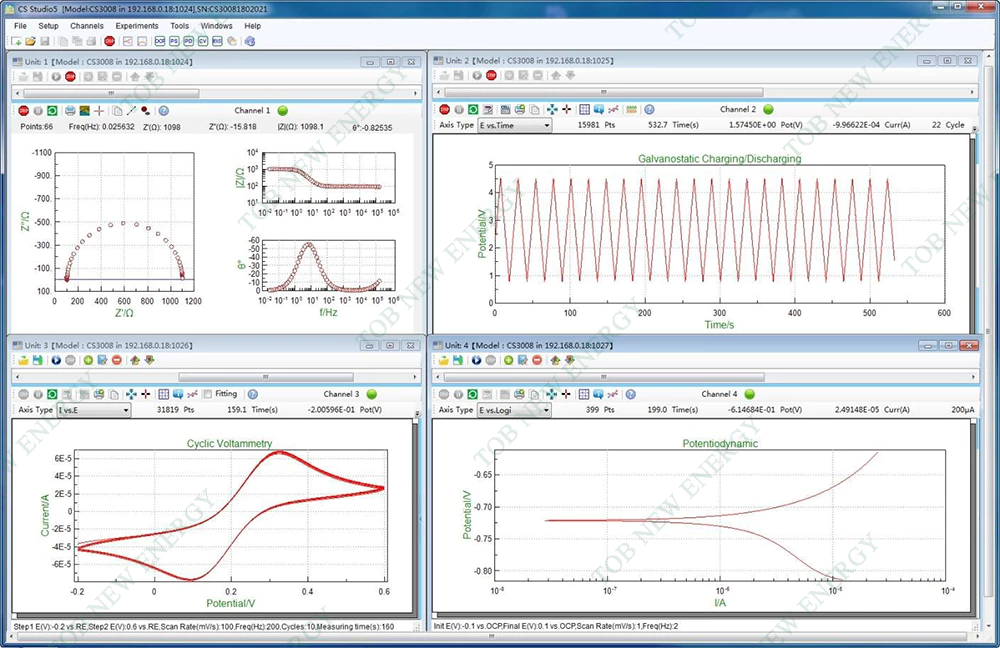

You can also choose different techniques in each channel. Set the parameters for each experiment one by one, and run each experiment independently. As is shown in right picture, EIS, Galvanostatic charge & discharge, Cyclic Voltammetry, and polarization curve test are tested.
PRODUCT DISPLAY
This is the single channel electrochemical workstation, click for more information
