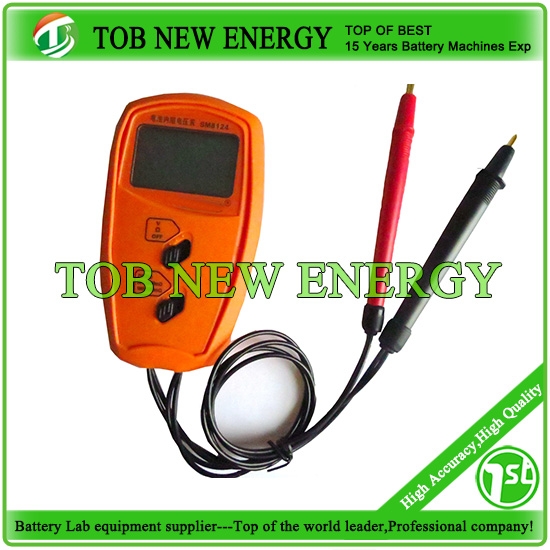

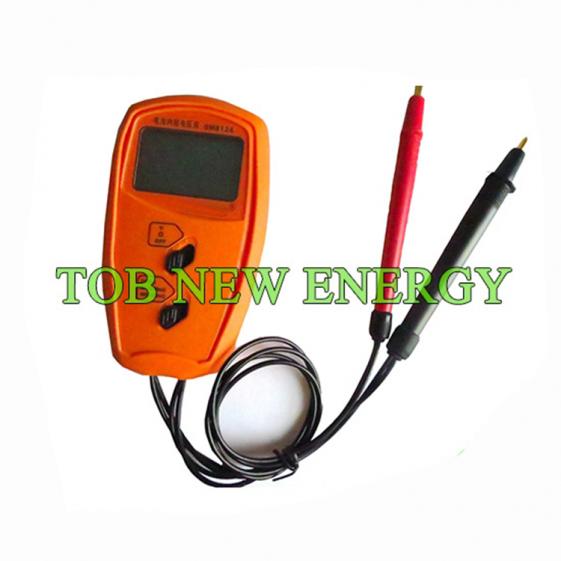

200V 20 Ohm Portable Battery Resistance Voltage Tester

TOB-SM8124 Resistance Voltage Tester is a portable battery tester used for battery voltage and internal resistance test, it is Suitable for lithium-ion battery, nickel-metal hydride, lithium manganese, lead-acid battery and other single battery or battery pack with voltage no more than 200V.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-SM8124
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail

200V 20 Ohm Portable Battery Tester For Battery Voltage and Resistance Testing

SPECIFICATIONS



TOB-SM8124Resistance Voltage Testeris aportable battery testerused forbattery voltage and internal resistance test, it is Suitable for lithium-ion battery, nickel-metal hydride, lithium manganese, lead-acid battery and other single battery or battery pack with voltage no more than 200V.

Model

Portable Battery Resistance Voltage Tester   TOB-SM8124

Voltage testing range

0-1.999V, 2-19.99V, 20-199.9V

Voltage resolution ratio

1mV, 10mV, 100mV

Inner resistance testing range

0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ

Accuracy

0.1mΩ, 1mΩ, 10mΩ

Operating temperature

-10-40℃

Suitable battery

Lithium battery, lithium pouch cell(Lithium polymer battery),

Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.

Structure

LCD display testing results

Simple operation with Button press

Notice

This machine can not test battery with voltage more than 200V,

Please don’t test battery more than 200V. It will damage the machine.



Guarantee that the battery positive and negative connection is right.

Dimension(L*W*H)

130*72*30mm

Weight

200g

REFERENCE PICTURE

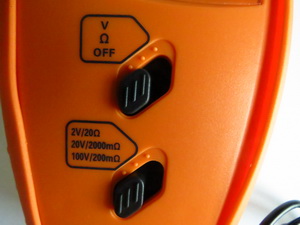

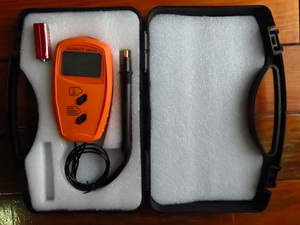

             Battery tester operation button                          Battery tester package

Portalbe battery tester button   Battery resistance tester package

Test polymer battery

PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.

We cooperated with each other, and we will do TOP OF THE BEST battery



  Email :tob.amy@tobmachine.com
  Skype :amywangbest86
  Whatsapp/Phone number :+86 181 2071 5609


Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
