5V3A Cylinder Battery Cell Forming and Grading Machine for 18650 21700 26650 32650

TOB-HF512-3K 5V3A battery cell grading machine it is suitable for 18650, 21700, 26650, 32650 battery chemical formation and sorting testing equipment.


  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-HF512-3K
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30
Product Detail

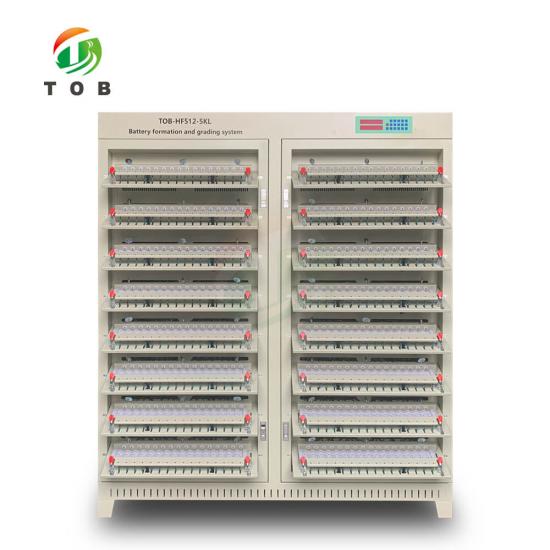

5V3A Cylinder Battery Cell Forming and Grading Machine for 18650 21700 26650 32650


SPECIFICATIONS


1.Basic composition of the equipment

Specially designed according to the requirements of 18650 battery, it is suitable for 18650, 21700, 26650, 32650 battery chemical formation and sorting testing equipment.

This equipment mainly consists of computer, communication interface and battery testing cabinet. The battery testing cabinet consists of a fixture and a board for placing the fixture, a constant current and voltage source, a hosting control circuit, a sampling circuit, a microcontroller and a control panel.


2. Machine Describe

TOB-HF512-3K The device is mainly composed of a communication interface and a battery detection cabinet. The battery testing cabinet is composed of battery clamp and a plate body to placing fixture, a constant current constant voltage source, a registration control circuit, a sampling circuit, a single chip microcomputer and a control panel.


3.Main feature

(1) Each equipment can do constant current, constant voltage charge and constant current discharge for 512 pcs of cell which is within the voltage range.

(2)Constant current-constant voltage power supply, constant current to constant voltage switching without impact, especially suitable for lithium ion battery charging requirements

(3) The device adopts AVR single-chip computer as the control center, and cooperates with the peripheral sampling circuit, which can be controlled by the upper computer. When connected to the computer, the complete charge and discharge curve of all channels can be saved, or it can be separated from the upper computer and operated by the control panel. Constant current constant voltage charging, constant current discharge test, sorting by time, etc.

(4) Each battery has its own independent constant current and constant voltage source, and the self-forming loop does not affect each other.

(5)A LED is mounted on each of the battery fixtures as an operational status display, and when the discharge is completed, it can be used to indicate battery capacity sorting.

(6)Real-time detection each battery voltage, when charging, first constant current charging, when the battery voltage reaches the set value, it will smoothly transfer to constant voltage charging, when the set time or current termination condition is satisfied, the charging ends. When the constant current is discharged, when the battery voltage is lower than the set value, the discharge ends and the corresponding battery indicator lights up.

(7)With power-down protection function, the original workflow can continue to run after the power back

 (8)The upper computer can set 32 working step parameters and 256 cycles. Each upper computer can connect 1 to 15 sets of single chip microcomputer system.(suggest below 10 sets)

(9)Supporting software features

1) . Use the graphical operation interface to display data such as voltage, current, time, and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors.

2) Arbitrary segmented battery capacity indication (up to 100 segments)

3) The data points can be recorded according to the changing conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of the curve data points is ≤15 seconds.

4) Battery sorting function under various conditions (capacity, time, open

circuit voltage, discharge platform, etc.)

5) Automatic calculation of constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, etc.

6) Operator permission setting, hierarchical operation

7) Can display charge and discharge curve, cycle diagram


4. Technical parameter

Model

TOB-HF512-3K

Channel No.

512

Workflow control method

Whole Cabin control

Charging model

Constant voltage,constant current

Charge cutoff condition

Voltage, current, time, capacity

Discharge mode

Constant current

Discharge cutoff condition

Voltage, time, capacity

Sampling inspection cycle

≤15s

Voltagemeasurement range

0~5V,Resolution 1mV

Battery voltage range

Charge:0~4.5V,Discharge:4.5~2.0V

Constant voltage range

3~4.5V

Voltage accuracy

±(0.05%RD+0.1%FS)

Current range

Charge:0.015-3A,Discharge :0.015-3A,Resolution:1mA

Current accuracy

±(0.1%RD+0.1%FS)

Time Set Range

Any setting within 0~30000 minutes, the time unit is min

Time accuracy

≤±0.1%

Clamp type

Four-wire method fixture

Clamp adjust range

Cylindrical cell model(about 10mm-90mm)

Support battery type

Cylinder cell

Voltage source

3 phase 4 wire,AC380V±5%,50HZ,Power consumption13KW

communication method

RS485,Baud rate 57600

Machine size

1650mm(length)×500mm(width)×1914mm(height

working environment

Temperature:0-40℃,related temperature≤85%

Full load operating current

Phase line up to30A, zero line up to3A

Device startup current

Air switch closing moment about 60A

N.W

Anout 250kg

System main

configuration requirements



Minimum configuration of computer system: CPU above P4, memory above 2G, hard disk space above 200G, EGA/VGA color display, one CD-ROM, one mouse, MicrosoftTM Windows XP and above, one available RS232 serial communication port, Windows support Printer. The computer system is self-contained by the user, and the number of microcomputer systems is determined according to actual needs.
