600mm Calender Machine
加载中...

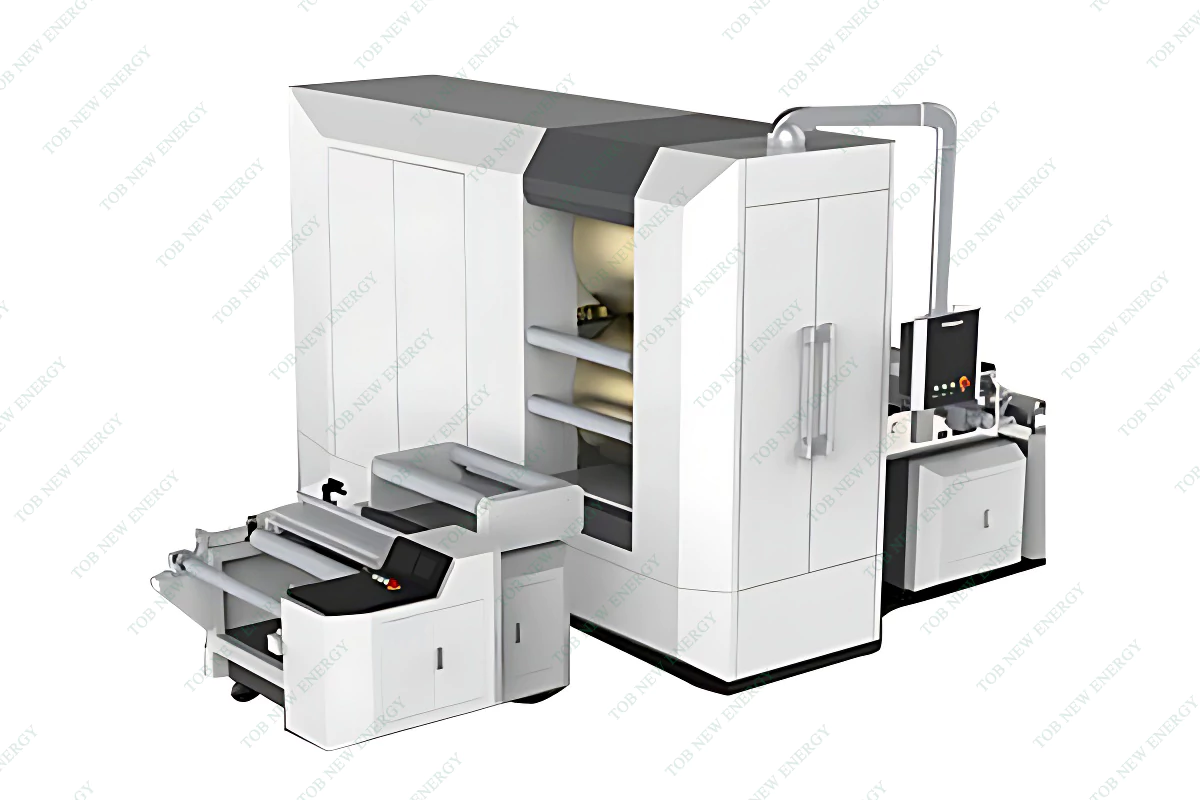

600mm Calender Machine for Battery Electrode Rolling Press

This TOB-BEC-600 electrode calender machine is suitable for Lithium iron phosphate, Cobalt acid lithium, Manganese acid lithium, Lithium nickel manganese cobalt, such like the above continuous rolling technology of positive and negative battery electrode.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-BEC-600
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    xiamen
Product Detail

600mm Calender Machine for Battery Electrode Rolling Press


SPECIFICATIONS


Contact us for more information about this battery electrode calender machine, it is suitable for all lithium-ion battery and supercapacitor electrode preparation.

Through putting pressure on roller’s crack, the dual function of pressure on loose electrodes and roll cracks prompt the drawing sheet reach to the presupposed thickness or the presupposed density. The lithium battery reaches the preset volume energy density and battery performance at last.


Item Description Note
Suitable system Lithium iron phosphate, Cobalt acid lithium, Manganese acid lithium, Lithium nickel manganese cobalt, such like the above continuous rolling technology of positive and negative battery electrode.
Base material Aluminum foil(12um-1.5mm)、copper foil(6um-1.5mm),Width:150mm-600mm。
Roller mode Two rollers up and down horizontal roll pressure, the drive is on the right of the feed end Motor drive bit
Work pressure Pump station provide constant pressure, suitable for high pressure rolling of positive and low pressure adjustment
Equipment speed No grade, the up and down roll line in the same speed. Max30m/min
Bearing clearance automatic adjustment function Using the cylinder to adjust, open automatically.
Control mode PLC, touch screen digital control
Feeding part φ76mmX580mm Gas expanding shaft unwinding, lock valve design, with blunt air gun
Picking platform Stainless steel front feeding platform,the pressure plate is pneumatically lifted and scale control.
Tension control Through the shaft pressure sensor collect signal, magnetic powder brake adjustment(adjusting range: 2.3-20kg), constant tension can be set in the scope of 0-50N .
Correcting system Photoelectric correction, linear guide(maximum range of movement is 100mm)
Corrective action Stepper motor(1.27NM).


PRODUCT DISPLAY


600mm Calender Machine
