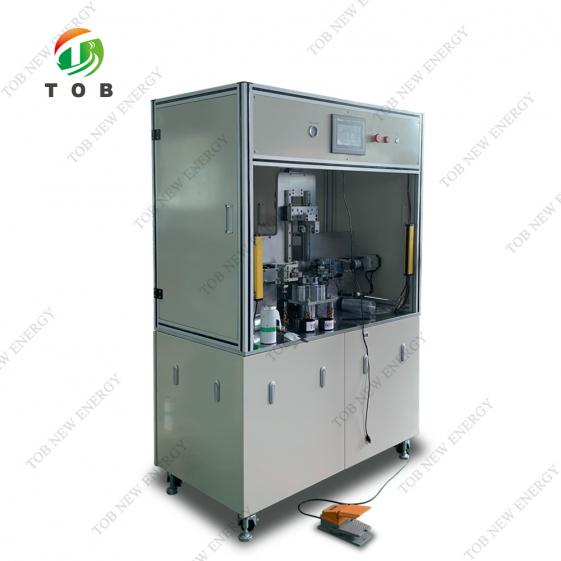

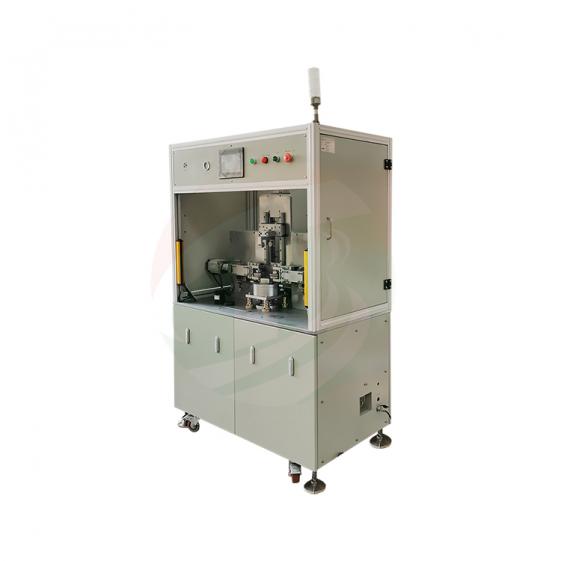

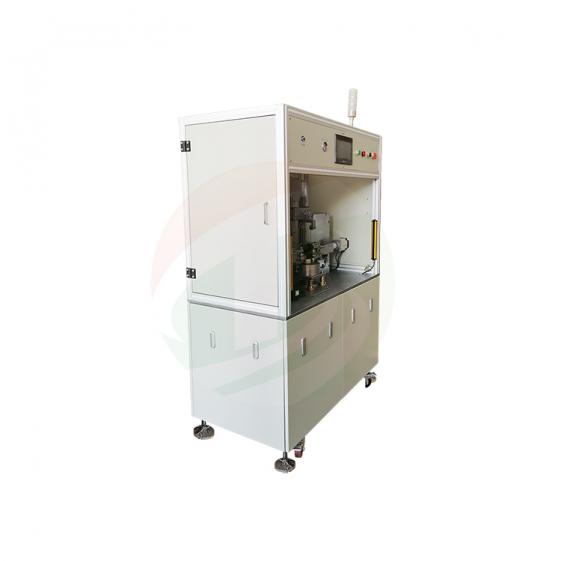

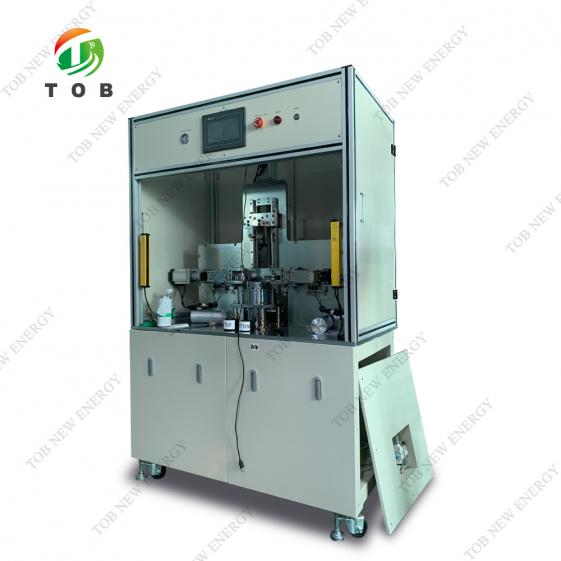

60138 Cylindrical Supercapacitor Grooving And Pre-sealing Machine

The grooving and pre-sealing machine is used for 60138 supercapacitor top and bottom grooving, and top pre-sealing process.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-GCK60
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

60138 Cylindrical Supercapacitor Grooving and Pre-sealing Machine




SPECIFICATIONS


The TOB-GCK60 grooving and pre-sealing machine is used for supercapacitor top and bottom grooving, and top pre-sealing process, the working process as following:

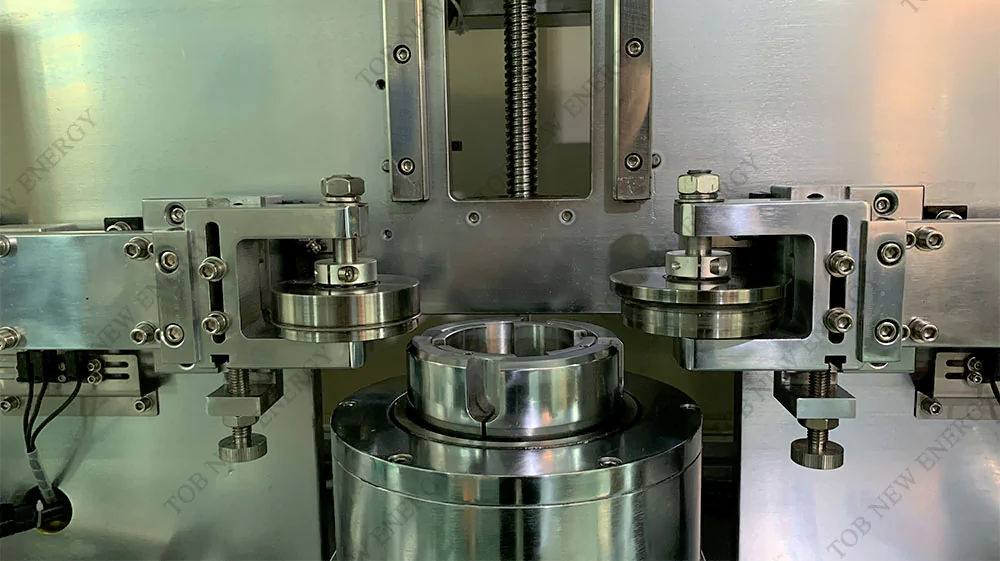

Product automatically clamp ring sleeve, the capacitor concentric fixed. The motor drives the jacket spindle to rotate at a uniform speed, the servo motor drives the rolling groove cutter to feed, and the servo motor drives the sealing knife to press down and screw the product, so that the product can feed, roll groove and seal under the stable clamping rotation state.


Main features

- Grooving and sealing are all driven by servo motor lead screw with high precision, precise control of the distance and speed of the feed, and no rebound of the feed (the cylinder will rebound due to compression resistance).

- The size of supercapacitor product grooving and sealing, can be set by the man-machine interface, automatically precision adjustment to the desired data.

- Slowly grooving

- It adopts jacketed fixed product, stable and without sloshing, high centering concentricity, uniform grooving and sealing, and good roundness.

- Adopt high-precision linear guide group feeding, high precision in grooving and sealing. size stable

- PLC control, man-machine interface display, easy to form automation.

- Using cover intelligent protection, safe and reliable.

- Appearance geometric design, exquisite and beautiful, easy to operate.


Model

TOB-GCK60

Suitable Capacitor Size

Suitable for diameter 35-80mm of supercapacitor products;

height 50-204mm can be customize.

But one grooving die is only suitable for one size, different model need different dies.

Accuracy of Capacitor height after sealing HA

±0.05mm

Accuracy of Grooving height accuracy LB

±0.05mm

Accuracy of Grooving depth accuracy

±0.02mm

Grooving Width

1.4mm (can be customized according to your requirements)

Service life

The normal service life of tooling molds reaches more than 5 million times

Capacity

≥ 3PCS

Activity rate

98%

Air source

adjustable from 0.5 to 0.7 MPa

Power supply

Single Phase 220V/50HZ

Air consumption

0.2 m3/min

Power

2.5KW

Dimensions

L1100mm *W 640mm * 1700mm

Weight

About 400kg


PRODUCT DISPLAY

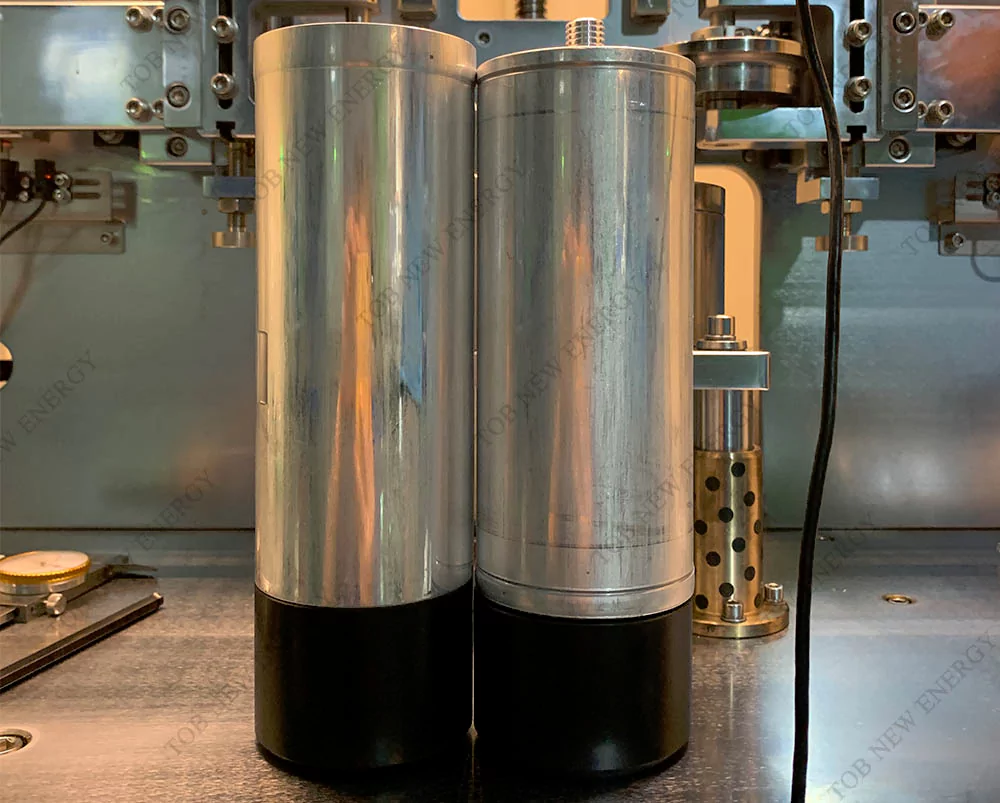

Grooving machine

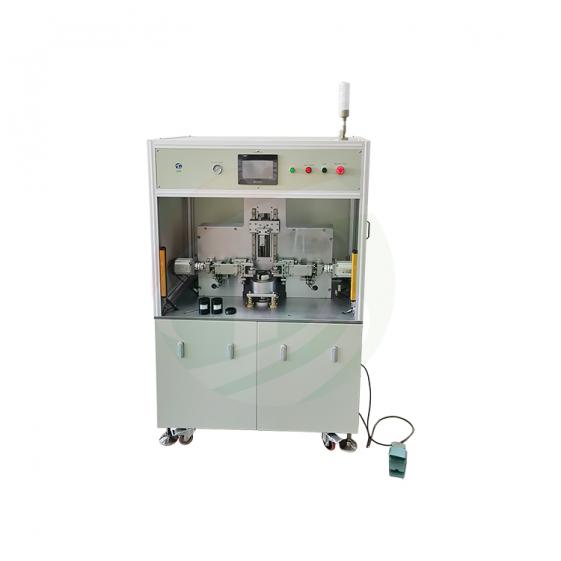

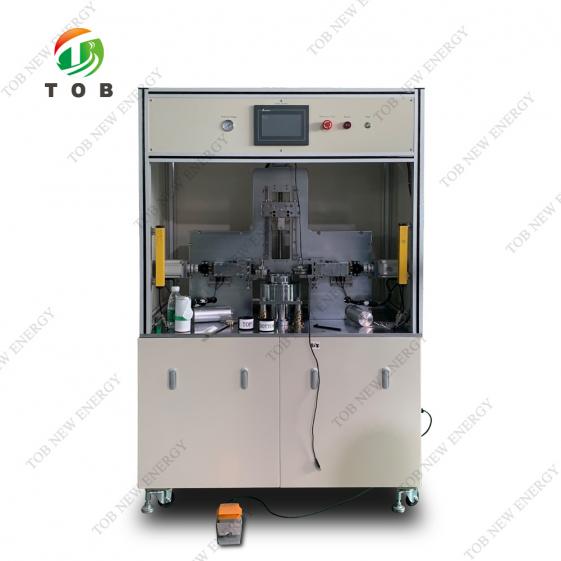

Supercapacitor Grooving and Pre-sealing Machine

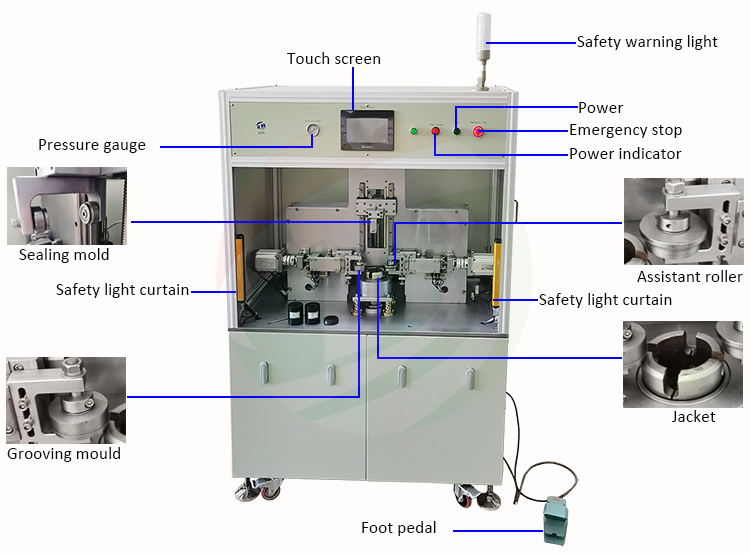

Grooving and Pre-sealing Machine
