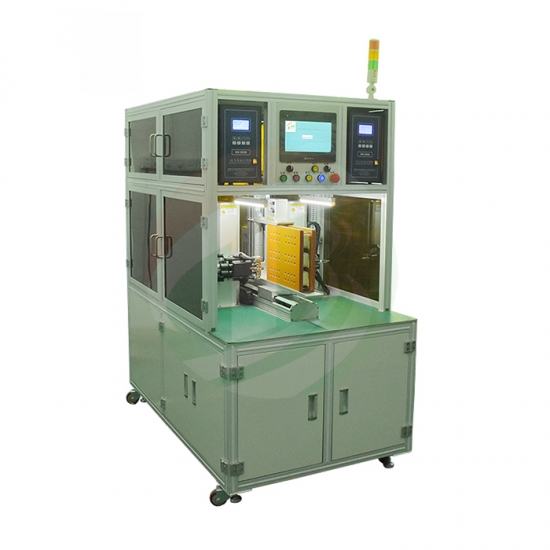

Automatic 18650 Battery Pack Welding Machine Double Side Welding

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-DH20000
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Automatic 18650 Battery Pack Spot Welding Machine Double Side Welding



SPECIFICATIONS



This machine is used for18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.


Model

Automatic Battery Pack Welding Machine

TOB-DH-20000

Y-axis travel

500mm

Z-axis travel

300mm

Spot welding speed

0.5s / point; 3200pcs / h

Maximum speed of motor drive

1000mm/s

The maximum number of batteries loaded

200pcs (standard 18650 lithium battery)

Number of groups for storing files

99 groups

Operating system

Embedded system + man-machine screen

Transmission

Stepper + imported precision linear guide (optional servo + screw)

Power supply

Single-phase  220V ± 10% / 50Hz ± 10%

Air supply

0.3 ~ 0.4Mpa

Weight

400KG

Dimensions

900mm*1300mm*1800mm

Welding machine parameter

Power supply : AC220V±10% 50Hz

Max output current : 8000A

Max power : 35kva

Welding current checking

Dimension : 185(W)*270(H)*425(D)mm


PRODUCT DISPLAY

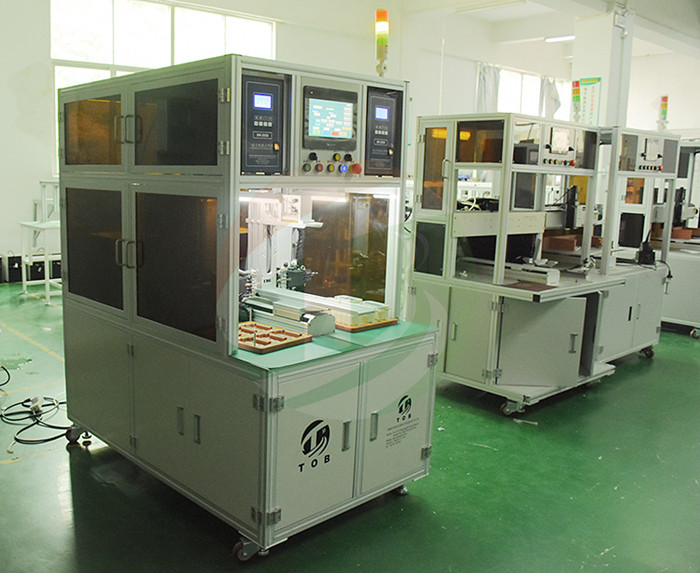

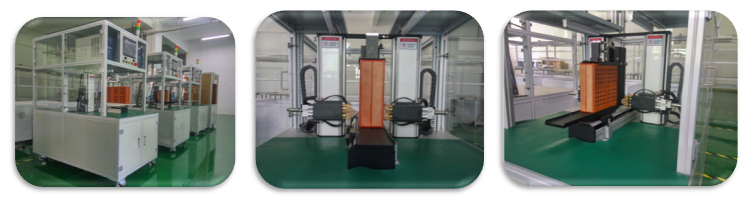

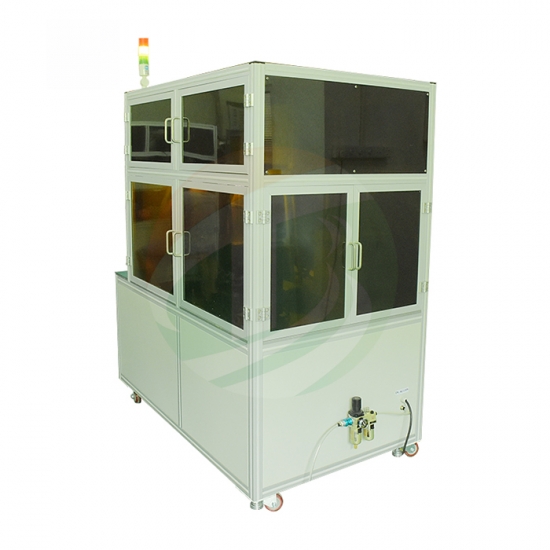

Auto 18650 Battery Pack Welding Machine

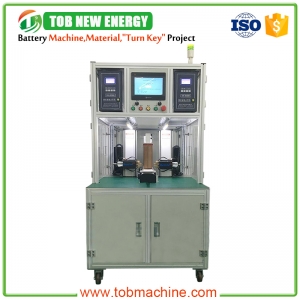

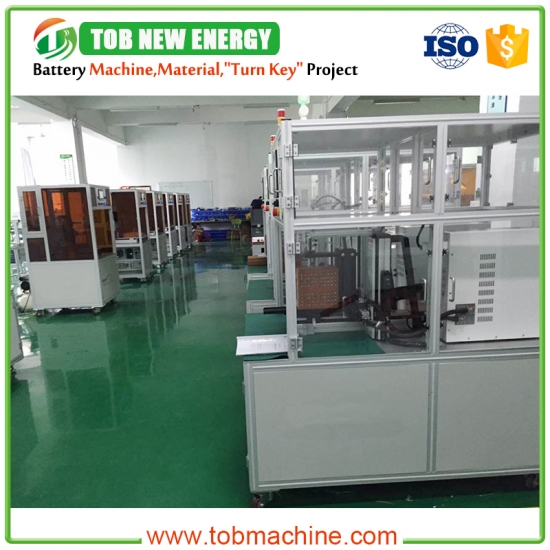

Auto Battery Pack Welding Machine

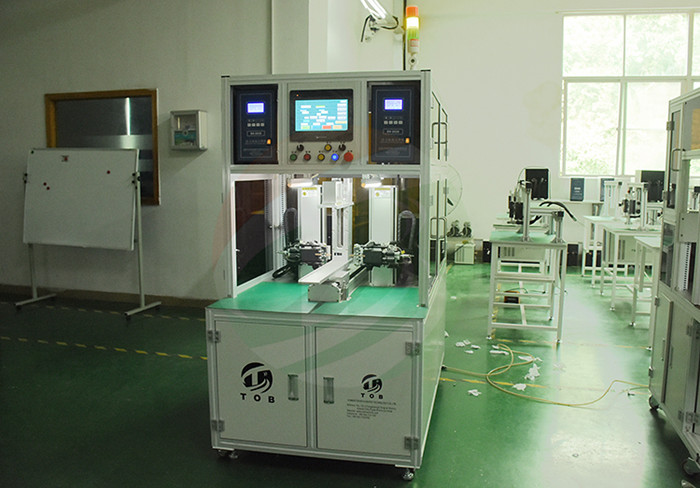

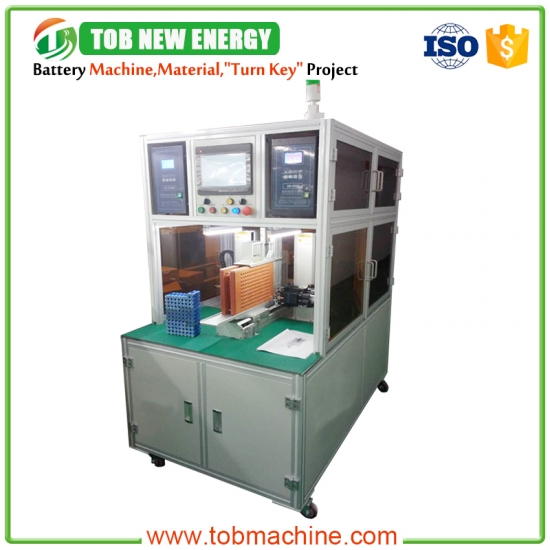

automatic spot welding battery pack

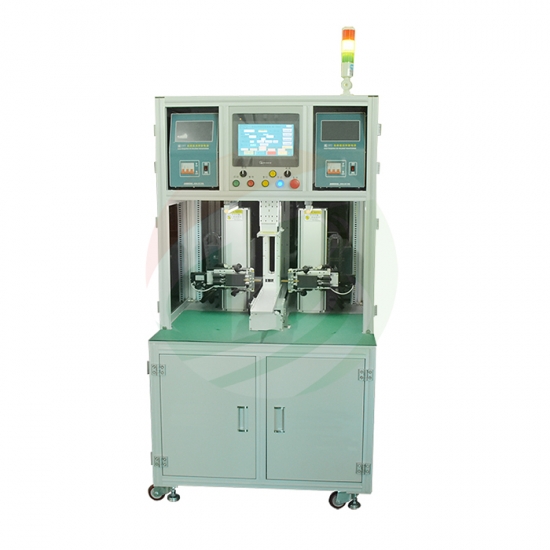

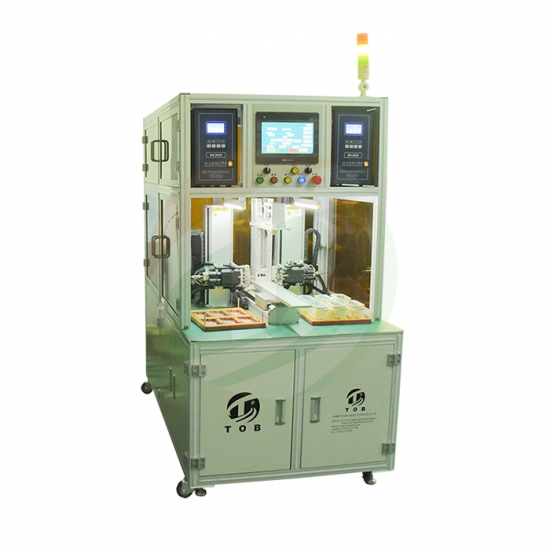

battery pack welding equipment

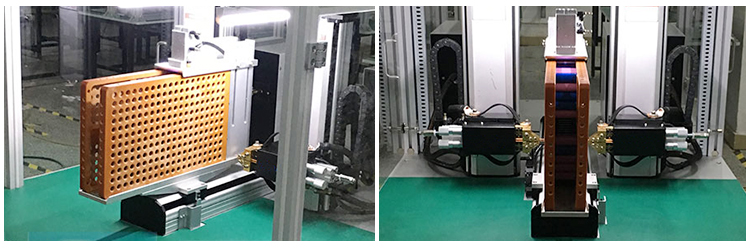

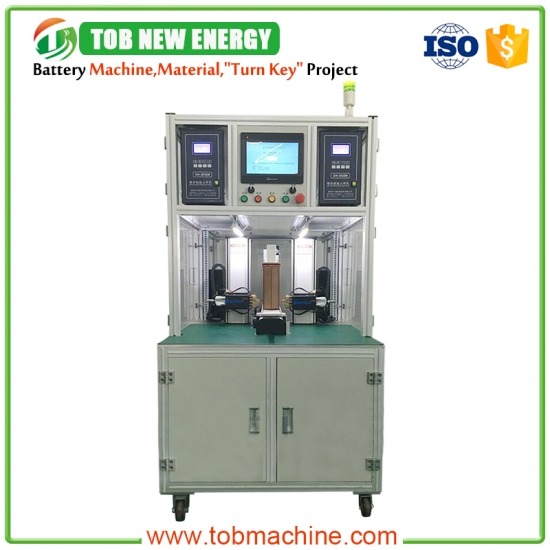

Welding Clamp Display

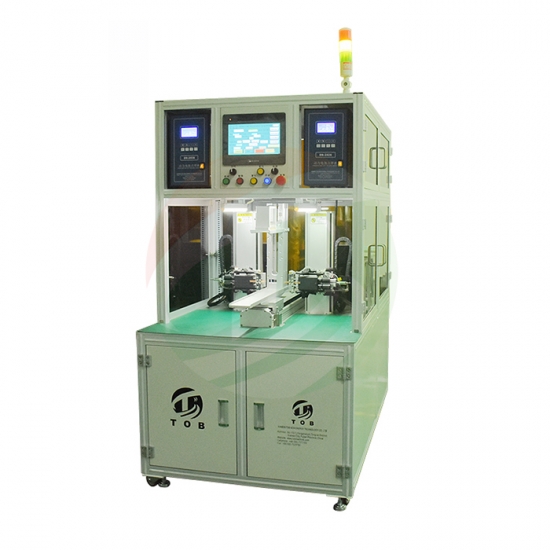

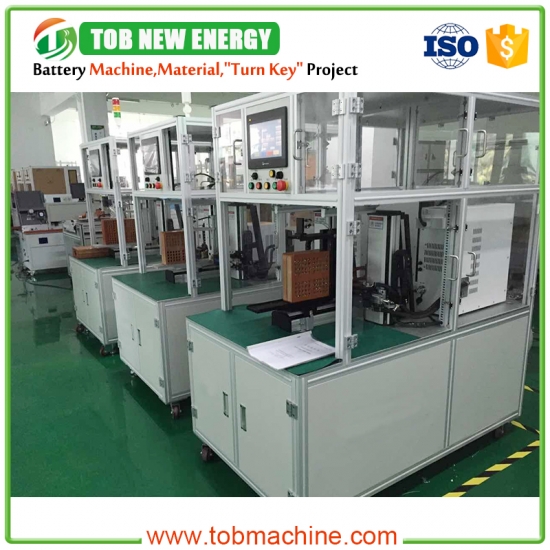

18650 battery spot welder


PACKAGE

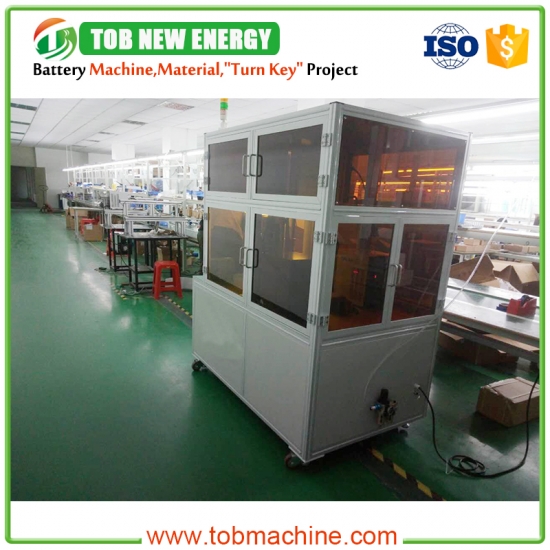

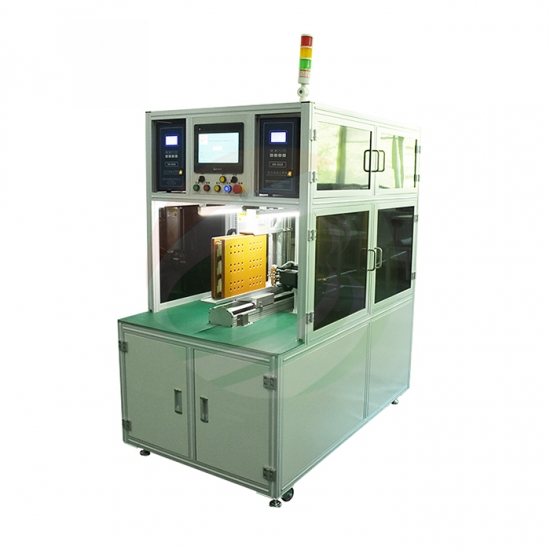

Auto 18650 Battery Pack Welder Machine
